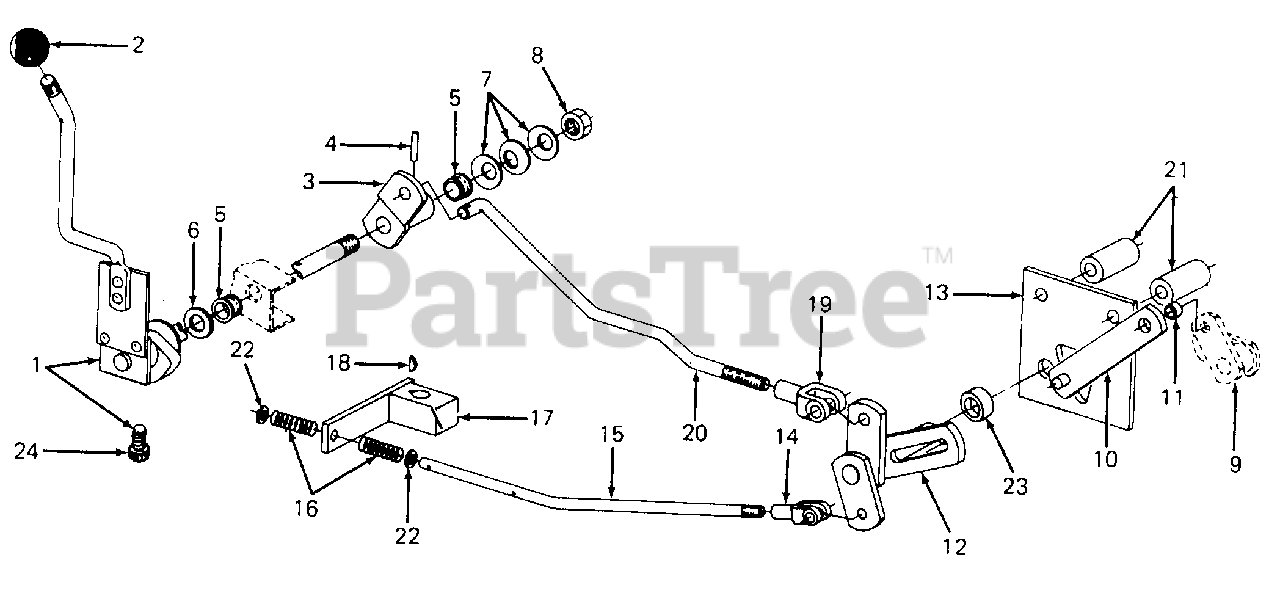

1110 (0350040U) - Cub Cadet Lawn Tractor Transmission Controls Parts Diagram

Lawn Tractor

Transmission Controls Parts Diagram

  • Title

1

Cub Cadet 703-1267

Handle, Shifter Control

Note: (Includes Ref No. 24)

$

$

Currently unavailable

2

Cub Cadet 720-0175

Knob, Shifter
(Superseded to 931-0009A)

$14.99

$

In Stock, only 4 left!

0

3

Cub Cadet 703-1220

Lever, Shifter

$

$

Not available

4

Cub Cadet 715-3032

Pin, 3/16 X 1 Pln Slt-Spr

$

$

Not available

5

Cub Cadet 723-3047

Bearing, Nyliner

$

$

Not available

6

Cub Cadet 723-3013

Washer, Friction
(Superseded to 923-3013)

$

$

Not available

7

Cub Cadet 736-3022

Washer, .760 X 1.50 X .06 Belleville
(Superseded to 936-3022)

$5.49

$

In Stock, only 2 left!

0

8

Cub Cadet 712-3059

Nut, 1/2 Cad P/T Lock GR 5

$4.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-1176

Control, Brake Link See Brake & Connections, Ref No. 4

$

$

Currently unavailable

10

Cub Cadet 703-1191

Link, Actuator

$

$

Not available

Cub Cadet 710-3000

Bolt, 3/8 X 3/4 GR 5
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 16

0

Cub Cadet 712-3000

Nut, 3/8 Cad P/T Lock GR 5

$4.49

$

In Stock, Qty 9

0

11

Cub Cadet 711-3185

Bearing

$

$

Not available

12

Cub Cadet 703-1175

Shaft, Hydro Control

$

$

Not available

Cub Cadet 710-3155

Bolt, 5/16 X 1 GR 5

$3.49

$

Usually ships in 3-6 days

0

Cub Cadet 736-0231

Washer, .344 X 1.125 X .125

$4.99

$

In Stock, Qty 11

0

13

Cub Cadet 703-1118

Plate, Cam

$

$

Not available

Cub Cadet 710-3154

Bolt, 3/8 X 2-5/8 Pln GR 5

$

$

Not available

Cub Cadet 712-3000

Nut, 3/8 GR 5

$4.49

$

In Stock, Qty 9

0

14

Cub Cadet 719-3018

Clevis, 5/16-24 X 2-1/4 Pln Lt Adj

$43.99

$

Usually ships in 3-6 days

0

Cub Cadet 712-3025

Nut, 5/16 NF Jam GR 5

$7.49

$

Usually ships in 3-6 days

0

Cub Cadet 711-3060

Pin, 5/16 X .940 Pln Clevis

$

$

Not available

Cub Cadet 714-0507

Pin, 3/32 X 3/4 Cot

$4.49

$

In Stock, only 2 left!

0

15

Cub Cadet 747-3101

Rod, Control

$

$

Not available

Cub Cadet 714-0507

Pin, 3/32 X 3/4 Pln Cot

$4.49

$

In Stock, only 2 left!

0

16

Cub Cadet 732-3022

Spring, Compression

$

$

Not available

17

Cub Cadet 703-0307

Arm Assy, Control Shaft

$

$

Not available

Cub Cadet 736-0185

Washer, .406 X .750 X .060

$3.99

$

In Stock, only 3 left!

0

Cub Cadet 712-3000

Nut, 3/8 Cad P/T Lock GR 5

$4.49

$

In Stock, Qty 9

0

18

Cub Cadet 714-0112

Key, 1/8 X 1/2 SAE 3 Woodruff
(Superseded to 914-0112)

$

$

Not available

19

Cub Cadet 719-3013

Clevis, 3/8-24 X 2-1/2 C-Z Lt Adj

$28.99

$

Usually ships in 3-6 days

0

Cub Cadet 712-3001

Nut, 3/8 NF Jam GR 5
(Superseded to 912-3001)

$6.99

$

In Stock, Qty 18

0

Cub Cadet 711-3010

Pin, 3/8 X 1.060 Clevis
(Superseded to 911-3010)

$

$

Not available

Cub Cadet 736-0185

Washer, .406 X .812 X .051

$3.99

$

In Stock, only 3 left!

0

Cub Cadet 714-0507

Pin, 3/32 X 3/4 Pln Cot

$4.49

$

In Stock, only 2 left!

0

20

Cub Cadet 747-3100

Rod, Control

$

$

Currently unavailable

Cub Cadet 714-0507

Pin, 3/32 X 3/4 Pln Cot

$4.49

$

In Stock, only 2 left!

0

Cub Cadet 736-0185

Washer, .406 X .812 X .051

$3.99

$

In Stock, only 3 left!

0

21

Cub Cadet 711-3189

Spacer, .385 X .88 X 1.88

$

$

Currently unavailable

22

Cub Cadet 736-0140

Washer, .385 X .62 X .063

$7.49

$

In Stock, Qty 7

0

23

Cub Cadet 711-3192

Spacer, .635 X .88 X .40

$

$

Not available

24

Cub Cadet 710-3069

Screw, 1/4 X 1/2 Hex-Soc-Hd

$4.99

$

In Stock, Qty 10

0
