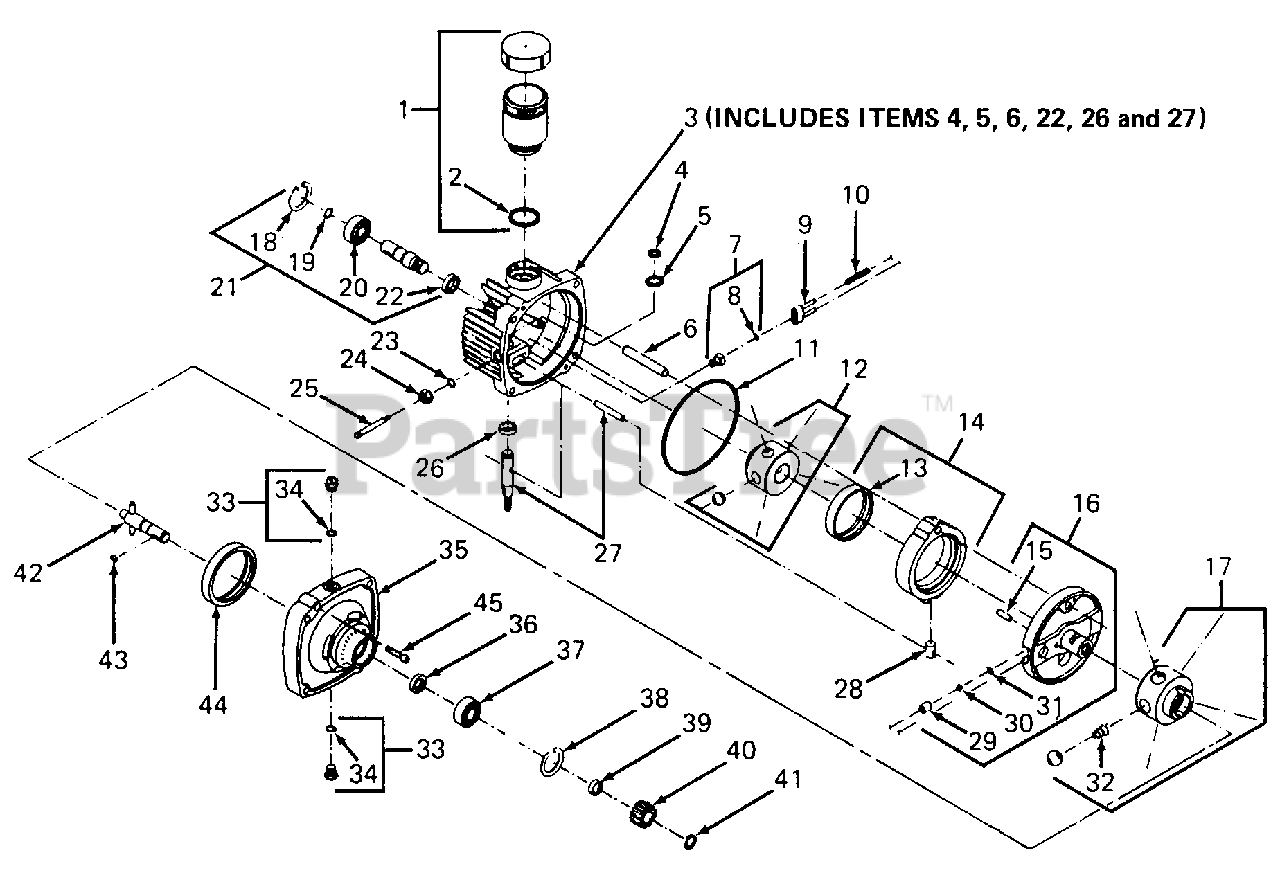

1110 (0350040U) - Cub Cadet Lawn Tractor Hydro Pump Parts Diagram

Lawn Tractor

Hydro Pump Parts Diagram

  • Title

Cub Cadet 717-3016

Pump, Hydro
(Superseded to 917-3016)

$

$

Not available

1

Cub Cadet ET-990077-000

Reservoir Kit

Note: (Includes Ref No. 2)

$

$

Not available

2

Cub Cadet ET-008771-130

Ring, Square Cut Seal

$

$

Not available

3

Cub Cadet ET-990102-000

Cover Service Kit

Note: (Includes Ref No. 4, 5, 6, 22, 26, & 27)

$

$

Not available

4

Cub Cadet ET-096098-062

Ring, External Retaining

$

$

Not available

5

Cub Cadet ET-095060-000

Washer, Control Shaft

$

$

Not available

6

Cub Cadet ET-093881-000

Dowel, Pivot Pin

$

$

Currently unavailable

7

Cub Cadet ET-024234-000

O-Ring Fitting Guide Kit,

Note: (Includes Ref No. 8)

$

$

Not available

8

Cub Cadet ET-008761-010

O-Ring

$

$

Not available

9

Cub Cadet ET-024166-000

Bracket, Pin

$

$

Currently unavailable

10

Cub Cadet ET-072149-000

Spring, Valve

$

$

Currently unavailable

11

Cub Cadet ET-008771-162

Ring, Square Cut Seal

$

$

Not available

12

Cub Cadet ET-022712-000

Pump Rotor Ball Kit

$

$

Not available

13

Cub Cadet ET-040520-000

Race, Pump

$

$

Not available

14

Cub Cadet ET-101901-000

Cam Ring Kit

$

$

Not available

15

Cub Cadet ET-098294-075

Pin, Coil, 5/16 Dia X 3/4 Long

$

$

Currently unavailable

16

Cub Cadet ET-024465-000

Pintle Kit

Note: [Includes Ref No. 15, 29 (Qty 2), 30 (Qty 2), & 31 (Qty 2)]

$

$

Not available

17

Cub Cadet ET-022711-000

Motor Rotor Ball Kit,
(Superseded to ET-104111-000)

Note: [Includes Ref No. 32 (Qty 2)]

$

$

Not available

18

Cub Cadet ET-101680-156

Ring, Retaining

$

$

Not available

19

Cub Cadet ET-097121-000

Ring, Snap

$

$

Not available

20

Cub Cadet ET-090797-000

Bearing, Ball

$

$

Not available

21

Cub Cadet ET-990067-000

Kit, Input Shaft

Note: (Includes Ref No. 18, 19, 20, & 22)

$

$

Not available

22

Cub Cadet 721-0100

Seal, Oil

$

$

Not available

23

Cub Cadet ET-008761-010

O-Ring

$

$

Not available

24

Cub Cadet ET-024234-000

Nut Assy

$

$

Not available

25

Cub Cadet ET-062240-000

Shaft, Dump Valve

$

$

Not available

26

Cub Cadet ET-093895-000

Seal, Oil
(Superseded to ET-093895-000P)

$

$

Not available

27

Cub Cadet ET-990083-000

Kit, Control Shaft

$

$

Not available

28

Cub Cadet ET-095203-000

Insert, Cam Ring

$

$

Currently unavailable

29

Cub Cadet ET-070130-000

Body, Check Valve

$

$

Not available

30

Cub Cadet ET-095881-031

Ball, 5/16 Dia

$

$

Currently unavailable

31

Cub Cadet ET-095214-000

Ring, Retaining

$

$

Not available

32

Cub Cadet ET-070044-000

Spring, Piston

$

$

Currently unavailable

33

Cub Cadet ET-025083-006

O-Ring Plug Kit,

Note: (Includes Ref No. 34)

$

$

Not available

34

Cub Cadet ET-008785-006

O-Ring

$

$

Not available

35

Cub Cadet ET-032278-000

Body

$

$

Currently unavailable

36

Cub Cadet 721-0100

Seal, Oil

$

$

Not available

37

Cub Cadet ET-090797-000

Bearing, Ball

$

$

Not available

38

Cub Cadet ET-101680-156

Ring, Retaining

$

$

Not available

39

Cub Cadet ET-095202-000

Spacer

$

$

Currently unavailable

40

Cub Cadet ET-040511-000

Gear, Drive

$

$

Not available

41

Cub Cadet ET-096098-066

Ring, External Retaining

$

$

Not available

42

Cub Cadet ET-022892-000

Output Shaft Kit

$

$

Not available

43

Cub Cadet 714-0156

Key, Woodruff

$

$

Not available

44

Cub Cadet ET-040519-000

Race, Motor

$

$

Not available

45

Cub Cadet ET-095912-125

Screw, Socket Head Cap

$

$

Currently unavailable

Cub Cadet ET-990314-000

Overhaul Sealing Kit,

Note: [Includes Ref No. 2, 7, 11, 22, 23, 24, 26, 34 (Qty 2), & 36]

$

$

Not available
