1110 (0350040U) - Cub Cadet Lawn Tractor Air Cleaner Parts Diagram

Lawn Tractor

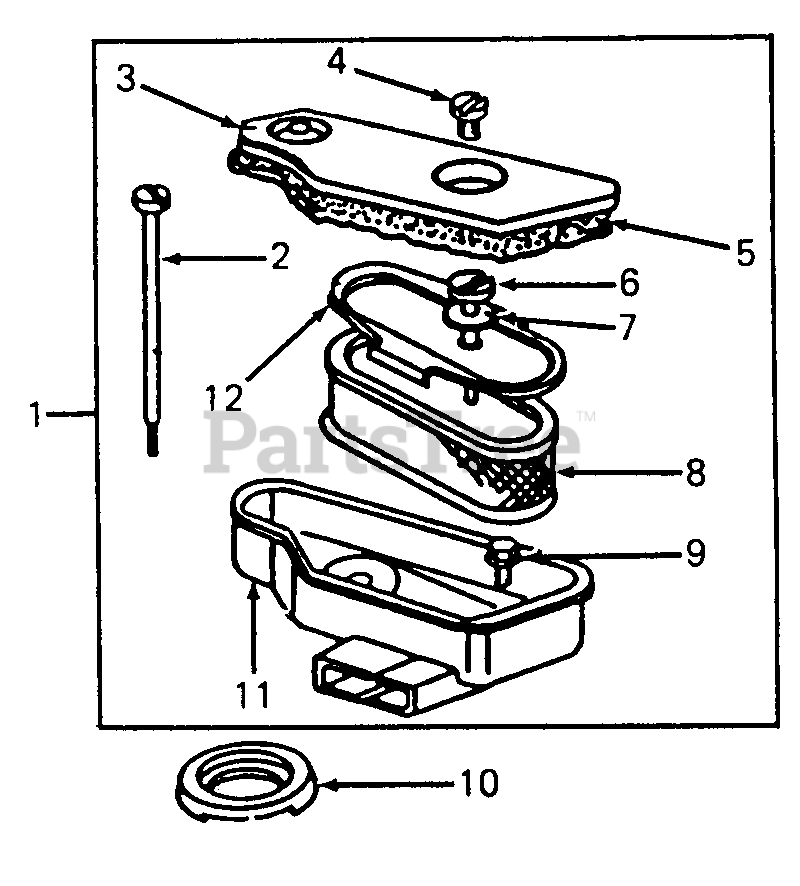

Air Cleaner Parts Diagram

  • Title

1

Cub Cadet BS-393749

Air Cleaner Assembly

$

$

Currently unavailable

2

Cub Cadet BS-93911

Screw, Air Cleaner

$

$

Currently unavailable

3

Cub Cadet BS-396966

Cover, Air Cleaner

Note: (Includes Ref No. 5)

$

$

Currently unavailable

4

Cub Cadet BS-93913

Screw, Air Cleaner

$3.99

$

In Stock, only 1 left!

0

5

Cub Cadet BS-397971

Gasket, Air Cleaner Cover

$37.99

$

In Stock, only 1 left!

0

6

Cub Cadet BS-93910

Screw, Air Cleaner

$13.99

$

Usually ships in 2-12 days

0

7

Cub Cadet BS-270978

Washer, Air Cleaner

$5.49

$

In Stock, only 1 left!

0

8

Cub Cadet BS-393725

Cartridge, Air Cleaner

$21.99

$

In Stock, only 2 left!

0

9

Cub Cadet BS-94018

Screw Sem
(Superseded to BS-690859)

$3.99

$

In Stock, Qty 8

0

10

Cub Cadet BS-270853

Gasket, Air Cleaner

$9.49

$

In Stock, only 1 left!

0

11

Cub Cadet BS-397321

Body, Air Cleaner

$49.99

$

In Stock, only 1 left!

0

12

Cub Cadet BS-222898

Plate, Air Cleaner Cartridge

$21.99

$

Usually ships in 2-12 days

0
