111 DP3 (UT-01482-A) - Homelite Diaphragm Pump Pump Parts Diagram

Diaphragm Pump

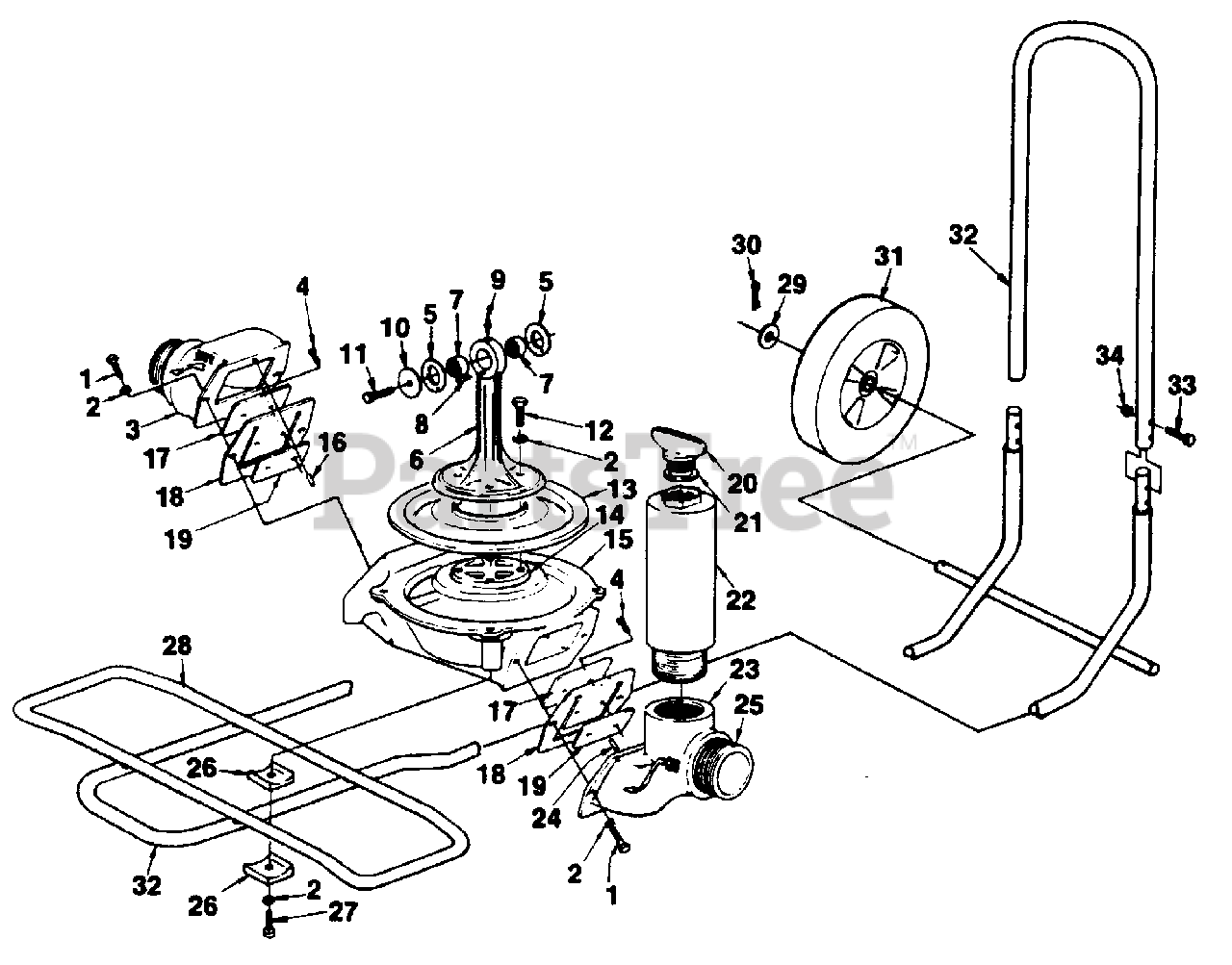

Pump Parts Diagram

  • Title
1

Homelite 80627

SCREW- Hex hd. (1/2-13 x 1 3/4")

$

$

Not available

2

Homelite 83020

WASHER- Lock (1/2")

$

$

Not available

3

Homelite 738743

FITTING- Discharge
(Superseded to UP07084)

$

$

Not available

4

Homelite 80393

SCREW- Fil. Hd. (10-32 x 1/2")

$

$

Not available

5

Homelite 73856

WASHER- Thrust

$

$

Not available

6

Homelite A74339

PUMP ROD ASSEMBLY
(Superseded to UP07042)

$

$

Not available

7

Homelite 74121S

BEARING- Needle

$

$

Not available

8

Homelite 76982

PIN- Coiled spring

$

$

Not available

9

Homelite 32409

FITTING- Grease

$

$

Not available

10

Homelite 73857

WASHER- Pump rod

$

$

Not available

11

Homelite 80171

SCREW-Hex hd.(3/8-16 x 3/4")

$

$

Not available

12

Homelite 80272

SCREW- Hex hd. (1/2-13 x 1 1/4")

$

$

Not available

13

Homelite 74351

DIAPHRAGM
(Superseded to 03438)

$

$

Not available

14

Homelite 737061

PLATE- Diaphragm

$

$

Not available

15

Homelite A74313

PUMP BODY ASSEMBLY
(Superseded to UP07041)

$

$

Currently unavailable

16

Homelite 548901

PIN- Roll

$

$

Not available

17

Homelite 74156

VALVE- Plate

$

$

Not available

18

Homelite 741541

VALVE- Flapper
(Superseded to UP06449)

$

$

Not available

19

Homelite 741551

WEIGHT- Valve

$

$

Not available

20

Homelite A43971

PLUG- Wing

$

$

Not available

21

Homelite 18108

GASKET- Plug

$

$

Not available

22

Homelite 743443

STANDPIPE- 3"
(Superseded to UP07189)

$

$

Currently unavailable

23

Homelite A743481

SUCTION FITTING

$

$

Not available

24

Homelite 548901

PIN- Roll

$

$

Not available

25

Homelite 743431

NIPPLE- 3"

$

$

Not available

26

Homelite 497841

SADDLE- w/.530 Hole

$

$

Not available

27

Homelite JA400414

BOLT- (1/2-13 x 2 1/4")

$

$

Currently unavailable

28

Homelite A497281

PUMP SUPPORT- 3"
(Superseded to UP05224)

$

$

Not available

29

Homelite 841141

WASHER- Flat

$

$

Not available

30

Homelite 86303

PIN- Cotter

$

$

Not available

31

$

$

Not available

32

Homelite 497321

HANDLE- Pump

$

$

Currently unavailable

33

Homelite 80882

SCREW- (1/4-20 x 1 1/2")

$

$

Not available

34

NUT- (1/4-20")

Note: Purchase at local hardware store.

$

$

Not available
