111-508R190 - White Outdoor 22" Walk-Behind Mower (1991) Mower Assembly Parts Diagram

22" Walk-Behind Mower

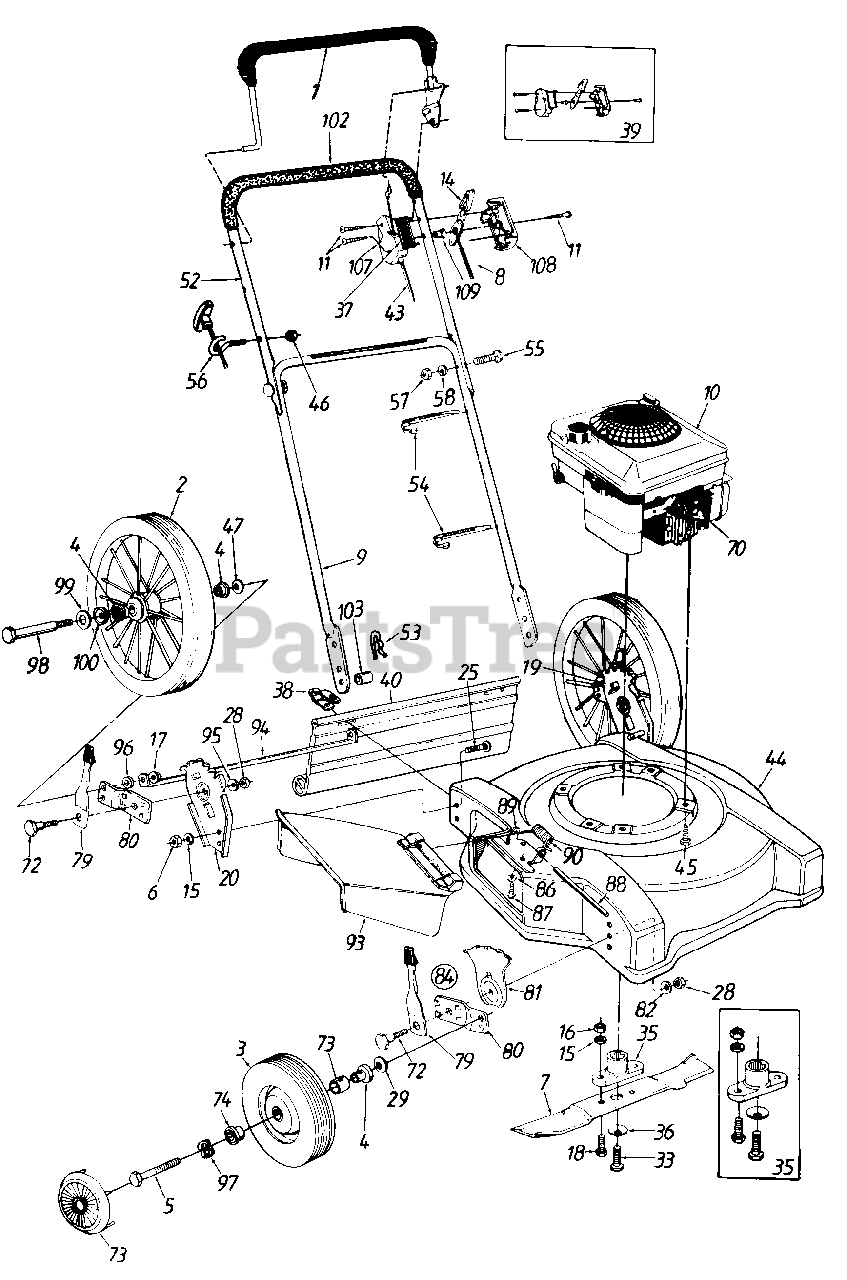

Mower Assembly Parts Diagram

  • Title

1

White Outdoor 731-0609

Control Handle

$

$

Not available

2

White Outdoor 734-1661

16" Wheel Ass'y. (Steel)

$

$

Not available

3

White Outdoor 734-1259

Front Wheel Ass'y.

$

$

Not available

4

White Outdoor 741-0484

Bearing 1/2" I.D.
(Superseded to 941-0484)

$7.49

$

In Stock, only 1 left!

0

5

White Outdoor 710-1020

Front Axle Bolt

$

$

Not available

6

White Outdoor 712-0328

Hex Nut 3/8-24 Thd. (Gr. 8)
(Superseded to 712-0241)

$4.49

$

In Stock, Qty 13

0

7

White Outdoor 742-0522

22" Blade
(Superseded to 942-0622)

$

$

Not available

8

White Outdoor 746-0632

Throttle Control Wire 53"
(Superseded to 946-0671A)

$14.99

$

In Stock, only 3 left!

0

9

White Outdoor 749-0372B

Lower Handle
(Superseded to 749-0928A)

$33.99

$

In Stock, only 2 left!

0

10

Engine

$

$

Not available

11

White Outdoor 710-0796

Truss Mach. Scr. #12 x 1.5" Lg.

$5.49

$

In Stock, only 1 left!

0

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

14

White Outdoor 731-0972

Throttle Control Lever
(Superseded to 931-0972)

$9.99

$

In Stock, Qty 13

0

15

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

16

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

17

White Outdoor 712-0431

Flange L-Nut 3/8-18 Thd.
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

18

White Outdoor 710-1055

Hex Bolt 3/8-24 x 1.0" Lg.

$4.99

$

Usually ships in 3-6 days

0

19

White Outdoor 682-3002

Wheel Brkt. Ass'y.-L.H.

$

$

Not available

20

White Outdoor 682-3003

Wheel Brkt. Ass'y.-R.H.

$

$

Not available

25

White Outdoor 710-0793

Ribbed Neck Bolt 3/8-24 x .80"

$

$

Not available

28

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

29

White Outdoor 736-0105

Bell-Wash. .400" 1 .D. x .88"

$4.49

$

In Stock, Qty 20+

0

33

White Outdoor 710-0757

Hex Bolt 7/16-20 x 1.5" Lg.

$9.99

$

In Stock, only 1 left!

0

35

White Outdoor 753-0485

Blade Adapter Kit

$46.99

$

Usually ships in 3-6 days

0

36

White Outdoor 736-0453

Bell-Wash. .46" I.D.
(Superseded to 936-0453)

$3.49

$

Usually ships in 3-6 days

0

37

MTD 777-5812

Throttle Label

$

$

Not available

38

White Outdoor 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

39

White Outdoor 753-0430

Kit-Control Housing Comp.

$

$

Not available

40

White Outdoor 731-1026

Rear Flap Ass'y.

$

$

Not available

43

White Outdoor 746-0476A

Control Cable-39"
(Superseded to 946-0476A)

$

$

Not available

44

682-0220

22" DeckAss'y.

$

$

Not available

45

White Outdoor 710-0654A

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.00" Lg.

$4.49

$

In Stock, Qty 20+

0

46

White Outdoor 712-0324

Hex Nylon L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

47

White Outdoor 736-0105

Bell-Wash. .38" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

52

White Outdoor 749-0756A

Upper Handle

$

$

Not available

53

White Outdoor 714-0104

Intern. Cot. Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

54

White Outdoor 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

55

White Outdoor 710-0671

Curved Carriage Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

56

White Outdoor 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

57

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

58

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

70

White Outdoor 735-0639

Spark Plug Boot

$

$

Not available

72

White Outdoor 738-0507B

Shoulder Bolt .50" Dia.

$4.49

$

In Stock, Qty 20+

0

73

White Outdoor 750-0434

Spacer

$6.99

$

Usually ships in 3-6 days

0

74

White Outdoor 741-0267

Ball Bearing 3/8" I.D.

$

$

Not available

79

White Outdoor 14832

Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

80

White Outdoor 15262B

Pivot Bar

Variations

White Outdoor 15262B-0637

PIVOT BAR - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

81

White Outdoor 15261A

HeightAdj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

82

White Outdoor 736-0356

Bell-Wash. .39" I.D. x 1.38"
(Superseded to 936-0356)

$

$

Not available

84

White Outdoor 14578

Front Height Adj. Ass'y. Comp.-R.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

White Outdoor 14579

Front Height Adj. Ass'y. Comp.-L.H.
(Superseded to 753-06761)

Note: (Not Shown)

$65.99

$

In Stock, Qty 7

0

86

White Outdoor 736-0270

Bell-Wash. .285" I.D. x .75"

$3.99

$

In Stock, Qty 20+

0

87

White Outdoor 710-0599

Hex Wash. Hd. Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

88

White Outdoor 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

89

White Outdoor 17032

Adapter Plate
(Superseded to 17032A)

$10.99

$

In Stock, only 2 left!

0

90

White Outdoor 732-0593

Torsion Spring
(Superseded to 932-0593)

$4.99

$

In Stock, only 3 left!

0

93

White Outdoor 731-1034

Chute Deflector Ass'y. Comp.
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 5

0

94

White Outdoor 749-0860

Stabilizer Tube

Variations

White Outdoor 749-0860-0637

STABILIZER-HI WHEEL - POWDER BLACK (0637)

$

$

Not available

$

$

95

White Outdoor 736-0331

Bell-Wash. .39" I.D. x 1.13"

$3.99

$

In Stock, Qty 20+

0

96

White Outdoor 750-0796

Spacer .503" I.D. x .75"

$

$

Not available

97

White Outdoor 736-0232

WaveWasher .53" I.D.

$4.99

$

In Stock, Qty 12

0

98

White Outdoor 738-0822

RearAxle Bolt
(Superseded to 938-0822)

$10.99

$

Usually ships in 3-6 days

0

99

White Outdoor 736-0486

Fl-Wash. .51 " I.D. x 1.372"

$

$

Not available

100

White Outdoor 736-0182

Spr. Wash. .5" I.D. x 1.0"

$4.49

$

In Stock, Qty 7

0

102

White Outdoor 720-0226

Foam Grip
(Superseded to 720-0295)

$33.99

$

Usually ships in 3-6 days

0

103

UNKNOWN

$

$

Not available

107

White Outdoor 731-0816A

Clutch Panel Half

$

$

Not available

108

White Outdoor 731-0817A

Control Panel Half

$

$

Not available

109

White Outdoor 731-0524

Control Disc Pin

$

$

Not available
