111-108R190 - White Outdoor 21" Walk-Behind Mower (1991) Mower Assembly Parts Diagram

21" Walk-Behind Mower

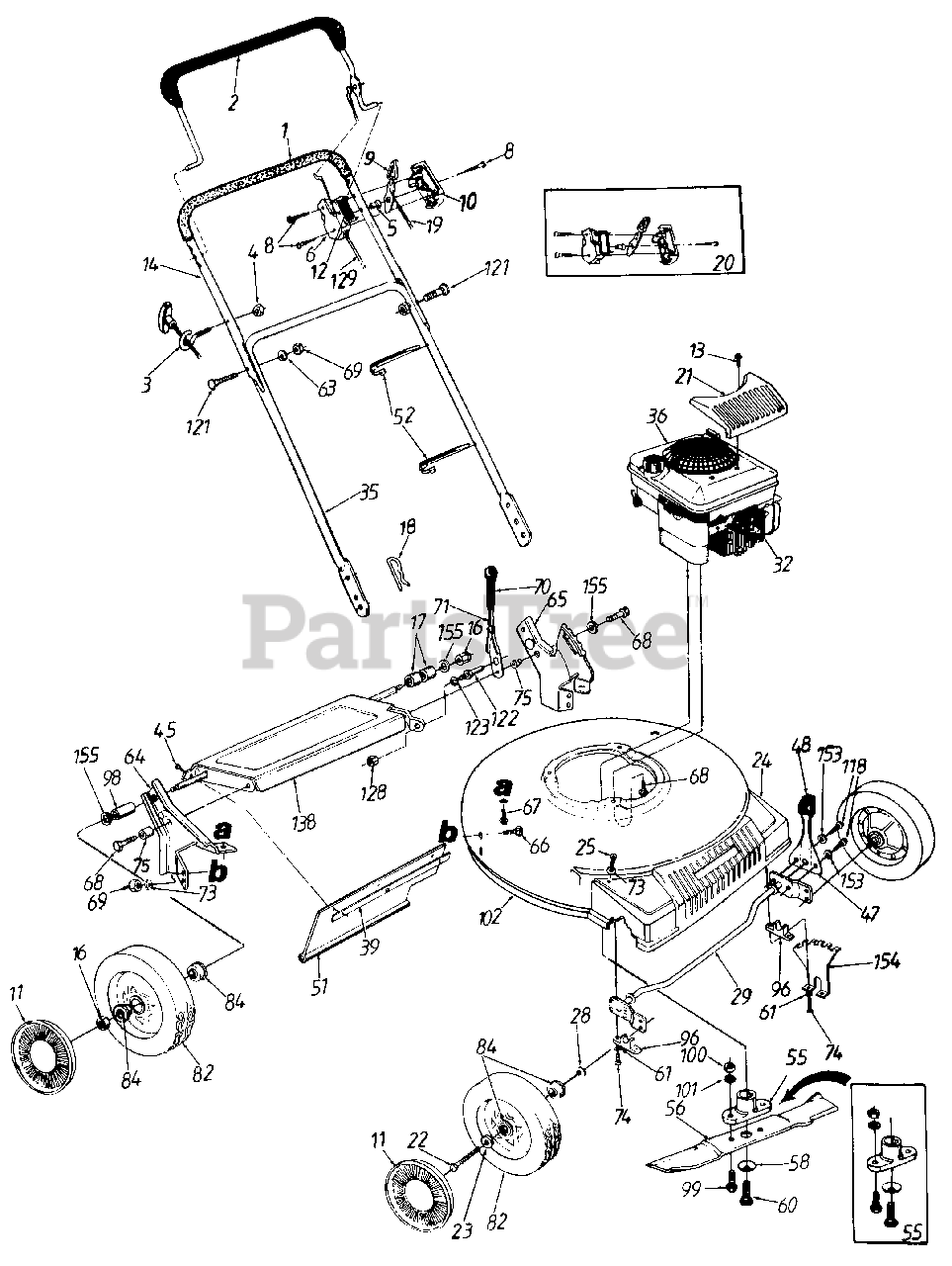

Mower Assembly Parts Diagram

  • Title

1

White Outdoor 720-0226

Grip
(Superseded to 720-0295)

$33.99

$

Usually ships in 3-6 days

0

2

White Outdoor 731-0609

Control Handle Ass'y.

$

$

Not available

3

White Outdoor 710-1205

Rope Guide Bolt

$3.99

$

In Stock, Qty 20+

0

4

White Outdoor 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

5

White Outdoor 731-0524

Control Disc Pin

$

$

Not available

6

White Outdoor 731-0816A

Clutch Panel Half

$

$

Not available

8

White Outdoor 710-0796

Truss Mach. Scr. #12 x 1.5" Lg.

$5.49

$

Usually ships in 3-6 days

0

9

White Outdoor 731-0972

Throttle Control Lever
(Superseded to 931-0972)

$9.99

$

In Stock, Qty 13

0

10

White Outdoor 731-0817A

Control Panel Half

$

$

Not available

11

White Outdoor 731-0981A

Hub Cap
(Superseded to 731-0981C)

$10.99

$

In Stock, only 2 left!

0

12

MTD 777-5812

Throttle Control Label

$

$

Not available

13

White Outdoor 710-0936

Truss Hd. AB-Tap Scr. #6 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

14

White Outdoor 749-0756A

Upper Handle

$

$

Not available

16

White Outdoor 712-3020

Hex Ins. L-Nut 3/8-16 Thd.
(Superseded to 912-3020)

$6.49

$

In Stock, Qty 10

0

17

White Outdoor 711-0500

Spacer .526" I.D. x .64" Lg.
(Superseded to 911-0500)

$

$

Not available

18

White Outdoor 714-0104

Internal Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 746-0642

Throttle Control Wire 51" Lg.
(Superseded to 946-0671A)

$14.99

$

In Stock, only 3 left!

0

20

White Outdoor 753-0430

Kit-Control Housing Comp.

$

$

Not available

21

White Outdoor 720-0271

Engine Cover

$

$

Not available

22

White Outdoor 738-0102

FrontAxle Bolt

$9.99

$

In Stock, Qty 10

0

23

White Outdoor 736-0232

Wave Wash. .53" I.D. x .78"

$4.99

$

In Stock, Qty 12

0

24

White Outdoor 731-1281

Plastic Front End
(Superseded to 931-1281A)

$

$

Not available

25

White Outdoor 710-1001

Truss B-Tap Scr. 5/16 x .75" Lg.
(Superseded to 710-1242)

$4.99

$

In Stock, Qty 19

0

28

White Outdoor 736-0105

Bell-Wash. .38" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

29

White Outdoor 17733

Front Axle Ass'y.

Variations

White Outdoor 17733-0637

AXLE ASSY-FR - POWDER BLACK (0637)

$

$

Not available

$

$

32

White Outdoor 735-0639

Spark Plug Insulator

$

$

Not available

35

White Outdoor 749-0372B

Lower Handle
(Superseded to 749-0928A)

$33.99

$

In Stock, only 2 left!

0

36

Engine

$

$

Not available

39

White Outdoor 14835

Retaining Strip

$

$

Not available

45

White Outdoor 710-0776A

Hex AB-Tap Scr. 1/4 x .62"
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

47

White Outdoor 732-0639

Spring Lever

$

$

Not available

48

White Outdoor 720-0190

Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

51

White Outdoor 731-0672A

Rear Flap 3.75" x 17.30" Lg.

$31.99

$

Usually ships in 3-6 days

0

52

White Outdoor 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

55

White Outdoor 753-0519

Blade Adapter Kit

$

$

Not available

56

White Outdoor 742-0563

21" Mulching Blade
(Superseded to 942-0721)

$32.99

$

Usually ships in 3-6 days

0

58

White Outdoor 736-0453

Bell-Wash. .47" I.D. x 1.14" O.D.
(Superseded to 936-0453)

$3.49

$

Usually ships in 3-6 days

0

60

White Outdoor 710-0561

Hex Bolt 7/16-20 x 2.5"

$10.99

$

In Stock, only 1 left!

0

61

736-0389

L-Wash. 1/4" I.D.

$

$

Not available

63

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

64

White Outdoor 682-3006

R.H. Handle Wheel Brkt. Ass'y.

$

$

Not available

65

White Outdoor 682-3007

L.H. Handle Wheel Brkt. Ass'y.

$

$

Not available

66

White Outdoor 710-0260

Carriage Bolt 5/16-18 x .62"
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

67

White Outdoor 710-0603

Hex B-Tap Scr. 5/16-18

$4.99

$

Usually ships in 3-6 days

0

68

White Outdoor 710-0654A

Hex TT-Tap Scr. 3/8-16

$4.49

$

In Stock, Qty 20+

0

69

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

70

White Outdoor 720-0223

Grip

$14.99

$

In Stock, Qty 7

0

71

White Outdoor 732-0580

Height Adj. Lever

$7.99

$

In Stock, only 1 left!

0

73

White Outdoor 736-0242

Bell-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

74

White Outdoor 710-0588

Hex Wash. Hd. B-Tap Scr. 1/4-20 x 1" Lg.
(Superseded to 710-0788)

$7.49

$

In Stock, only 2 left!

0

75

White Outdoor 750-0624

Shld. Spacer.5" Dia.

$

$

Not available

82

White Outdoor 734-1513B

Wheel Ass'y. Comp.
(Superseded to 753-08093)

$45.99

$

In Stock, Qty 5

0

84

White Outdoor 741-0180

Ball Bearing 1/2" I.D.
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

96

White Outdoor 741-0492A

Block Bushing

$6.49

$

In Stock, Qty 9

0

98

White Outdoor 711-0313

Sleeve .526" I.D.
(Superseded to 911-0313)

$

$

Not available

99

White Outdoor 710-1055

Hex Bolt 3/8-24 x 1.0" Lg.

$4.99

$

Usually ships in 3-6 days

0

100

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

101

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

102

White Outdoor 782-0016

21" Deck Ass'y.

Variations

White Outdoor 782-0016-0665

No Longer Available DECK ASSEMBLY-21IN - YARDMAN GREEN (0665)

$

$

Not available

$

$

118

White Outdoor 710-0653

Hex Wash. Hd. Tap Scr. 1/4-20 x .38" Lg.

$4.49

$

In Stock, Qty 7

0

121

White Outdoor 710-0671

Curved Carr. Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

122

White Outdoor 711-0805

Shld. Pin 1.43" Lg.

$

$

Not available

123

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

128

White Outdoor 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

129

White Outdoor 746-0476A

Control Cable-39"
(Superseded to 946-0476A)

$

$

Not available

138

White Outdoor 682-7508

Rear Axle Ass'y.

$

$

Not available

153

White Outdoor 736-0222

External L-Wash. 1/4" I.D.

$5.99

$

In Stock, only 3 left!

0

154

White Outdoor 17059

HeightAdj. Brkt.

$

$

Not available

155

White Outdoor 736-0300

Fl-Wash. .385" 1 .D. x .87" O.D.

$4.49

$

In Stock, Qty 20+

0
