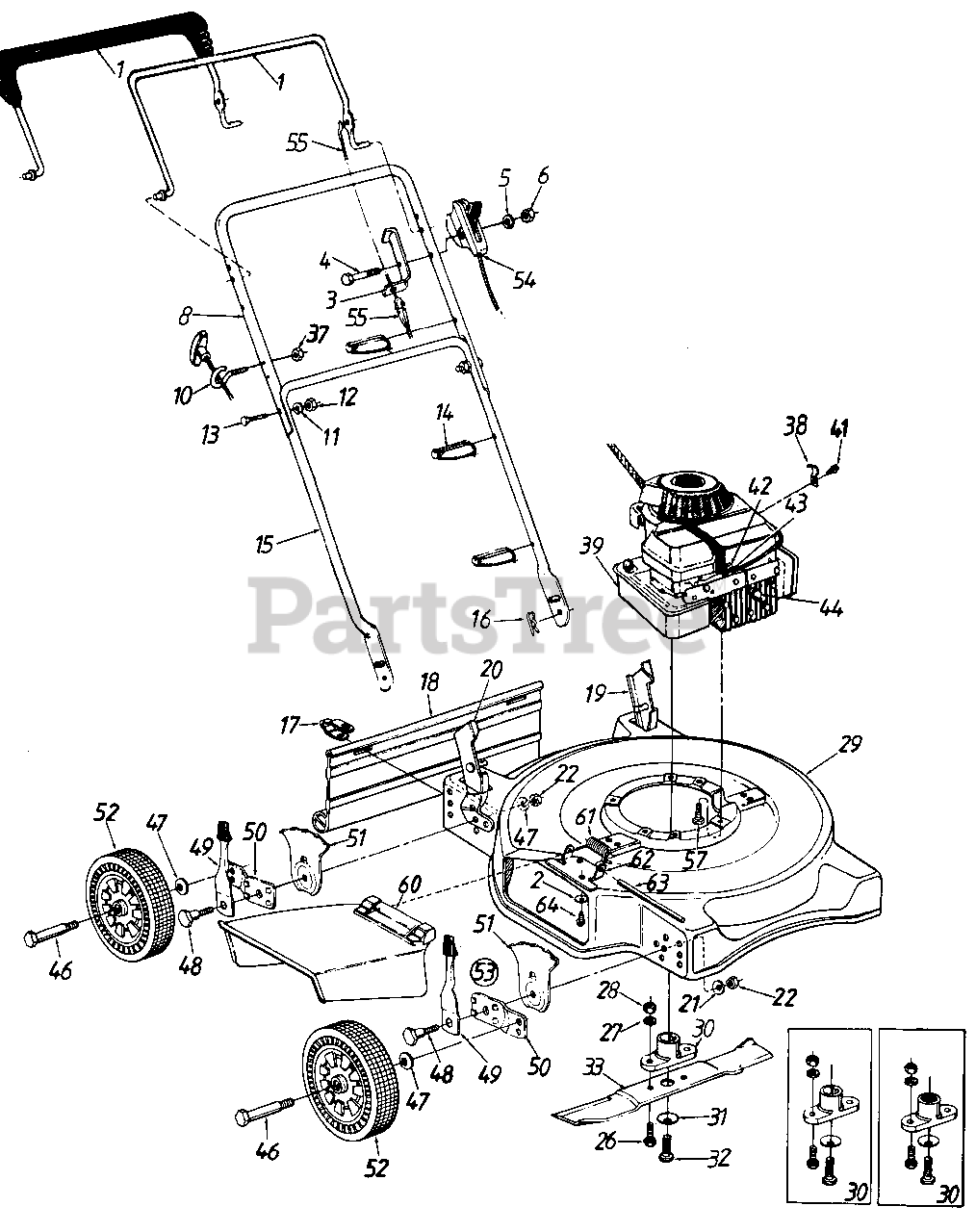

111-082R045 - MTD Walk-Behind Mower (1991) (Pay-N-Pack) Parts Parts Diagram

Walk-Behind Mower

Parts Parts Diagram

  • Title

1

MTD 747-0748

Control Handle Ass'y.

Note: (Std.)

$

$

Not available

MTD 731-1135

Control Handle Ass'y. w/Plastic
(Superseded to 747-0748)

$

$

Not available

2

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

3

MTD 17174

Cable Brkt.

$

$

Not available

4

MTD 710-1216

Hex Bolt 1/4-20 x 1.875" Lg.

$

$

Not available

MTD 710-0597

Hex Bolt 1/4-20 x 1" Lg.

Note: (Used without Throttle Control)

$3.99

$

In Stock, Qty 14

0

5

MTD 736-0175

Spr. Wash. 1/4" I.D.
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

6

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

8

MTD 749-0756A

Upper Handle

$

$

Not available

10

MTD 747-1205

Rope Guide
(Superseded to 710-1205)

$3.99

$

In Stock, Qty 20+

0

11

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

12

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

13

MTD 710-0671

Curved Carriage Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

14

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

15

MTD 749-0372B

Lower Handle
(Superseded to 749-0928A)

$33.99

$

In Stock, only 2 left!

0

16

MTD 714-0104

Hairpin Cotter

$4.49

$

In Stock, Qty 20+

0

17

MTD 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

18

MTD 731-0872

Rear Flap
(Superseded to 731-0872B)

$39.99

$

In Stock, Qty 6

0

19

MTD 17189

Handle Bracket Ass'y.-L.H.

$

$

Not available

20

MTD 17188

Handle Bracket Ass'y.-R.H.

$

$

Not available

21

MTD 736-0356

Bell-Wash. .39" I.D. x 1.38"
(Superseded to 936-0356)

$

$

Not available

22

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

26

MTD 710-1055

Hex Bolt 3/8-24 x 1" Lg.

$4.99

$

Usually ships in 3-6 days

0

27

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

28

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

29

MTD 17036

20" Deck Ass'y.

Variations

MTD 17036-0480

No Longer Available DECK ASM - BRILLIANT GREEN (0480)

$

$

Not available

MTD 17036-0483

No Longer Available DECK ASSEMBLY-20IN - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17036-0498

No Longer Available DECK ASM - OLD CUB YELLOW (0498)

$

$

Not available

MTD 17036-0629

No Longer Available DECK ASSEMBLY-20IN - SILVER FLAKE (0629)

$

$

Not available

MTD 17036-0638

No Longer Available DECK ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17036-0662

No Longer Available DECK ASM - OYSTER GRAY (0662)

$

$

Not available

$

$

MTD 17046

22" Deck Ass'y.
(Superseded to 97046)

$197.99

$

Usually ships in 3-6 days

0

30

MTD 753-0484

Blade Adapter Kit (Keyed)

$23.99

$

In Stock, only 1 left!

0

MTD 753-0485

Blade Adapter Kit (Splined)

$46.99

$

Usually ships in 3-6 days

0

31

MTD 736-0452

Bell-Wash. .39" I.D.

Note: (Used w/ Keyed Adapter)

$4.99

$

In Stock, Qty 7

0

MTD 736-0453

Bell-Wash. .46" I.D.
(Superseded to 936-0453)

Note: (Used w/ Splined Adapter)

$3.49

$

Usually ships in 3-6 days

0

32

MTD 710-1044

Hex Bolt 3/8-24 x 1.5" Lg.

Note: (Used w/Keyed Adapter)

$3.99

$

Usually ships in 3-6 days

0

MTD 710-0757

Hex Bolt 7/16-20 x 1.5n Lg.

Note: (Used w/Splined Adapter)

$9.99

$

In Stock, only 1 left!

0

33

MTD 742-0520

20" Blade
(Superseded to 942-0620)

$

$

Not available

MTD 742-0522

22" Blade
(Superseded to 942-0622)

$

$

Not available

37

MTD 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

38

MTD 12894A

Cable Clamp

$

$

Not available

39

Engine

$

$

Not available

41

MTD 710-0429

Hex B-Tap Scr. #10 x .38"
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

42

MTD 751-0369

Cable Clamp

$

$

Not available

43

MTD 710-0227

Hex AB-Tap Scr. #8 x .38"

$4.49

$

In Stock, Qty 20+

0

44

MTD 735-0639

Spark Plug Boot

Note: (Optional)

$

$

Not available

46

Axle Bolt

$

$

Not available

MTD 738-0102

Axle Bolt (Waffle Tread)

$9.99

$

In Stock, Qty 10

0

MTD 738-0144

Axle Bolt (Rib)
(Superseded to 938-0144)

$

$

Not available

47

MTD 736-0105

Bell-Wash. .400" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

48

MTD 738-0507B

Shld. Bolt .50" Dia. x 357"

$4.49

$

In Stock, only 4 left!

0

49

MTD 14832

Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

50

MTD 15262B

Pivot Bar

Variations

MTD 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

51

MTD 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

52

Wheel Ass'y. Comp.

$

$

Not available

MTD 734-1162A

Waffle Tread (8")

$

$

Not available

MTD 734-1161A

Waffle Tread (7")

$

$

Not available

MTD 734-1169

Rib Tread (8")
(Superseded to 734-04585)

$20.99

$

In Stock, only 1 left!

0

MTD 734-1170

Rib Tread (7")

$

$

Not available

MTD 734-1608

Bar Tread (8")
(Superseded to 734-1781)

$32.99

$

In Stock, Qty 7

0

53

MTD 14578

Height Adj Ass'y. Comp. - R.F. & L.R.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

MTD 14579

Height Adj Ass'y. Comp. - L.F. & R.R.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

54

MTD 746-0801

Throttle Control Ass'y. Comp.-51.62
(Superseded to 946-0802A)

$60.99

$

In Stock, only 1 left!

0

MTD 746-0820

Throttle Control Ass'y. Comp.-49.62
(Superseded to 946-0821A)

$44.99

$

Usually ships in 3-6 days

0

MTD 746-0830

Throttle Control Ass'y. Comp.-38.62n
(Superseded to 946-0832A)

Note: (071R, 073R, 075R, 079R)

$

$

Not available

MTD 746-0831

Throttle Control Ass'y. Comp.- 41.62n
(Superseded to 946-0832A)

Note: (081R, 083R, 085R, 089R)

$

$

Not available

MTD 746-0832

Throttle Control Ass'y. Comp.- 45.62"
(Superseded to 946-0832A)

Note: (077R, 087R)

$

$

Not available

55

MTD 746-0553

Control Cable-36"
(Superseded to 946-0553)

Note: (070R, 072R, 074R, 076R, 078R, 084R, 086R, 088R)

$24.99

$

Usually ships in 3-6 days

0

MTD 746-0550

Control Cable - 39"
(Superseded to 946-0550)

Note: (080R, 082R)

$21.99

$

In Stock, only 3 left!

0

MTD 746-0557

Control Cable-47"
(Superseded to 946-0557)

Note: (077R, 087R)

$26.99

$

Usually ships in 3-6 days

0

MTD 746-0552

Control Cable - 49"
(Superseded to 946-0552)

Note: (071R, 073R, 075R, 079R, 081R, 083R, 085R, 089R)

$41.99

$

Usually ships in 3-6 days

0

57

MTD 710-0654A

Hex L-Wash. Hd. Scr. 3/8-16 x 1 on Lg.

$4.49

$

In Stock, only 3 left!

0

60

MTD 731-1034

Chute Deflector Ass'y.
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 5

0

61

MTD 732-0593

Torsion Spring
(Superseded to 932-0593)

$4.99

$

In Stock, only 3 left!

0

62

MTD 17032

Adapter Plate
(Superseded to 17032A)

$10.99

$

In Stock, only 2 left!

0

63

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

64

MTD 710-0599

Hex Self-Tap Scr. 1/4-20 x .5" 4.

$4.49

$

In Stock, Qty 20+

0
