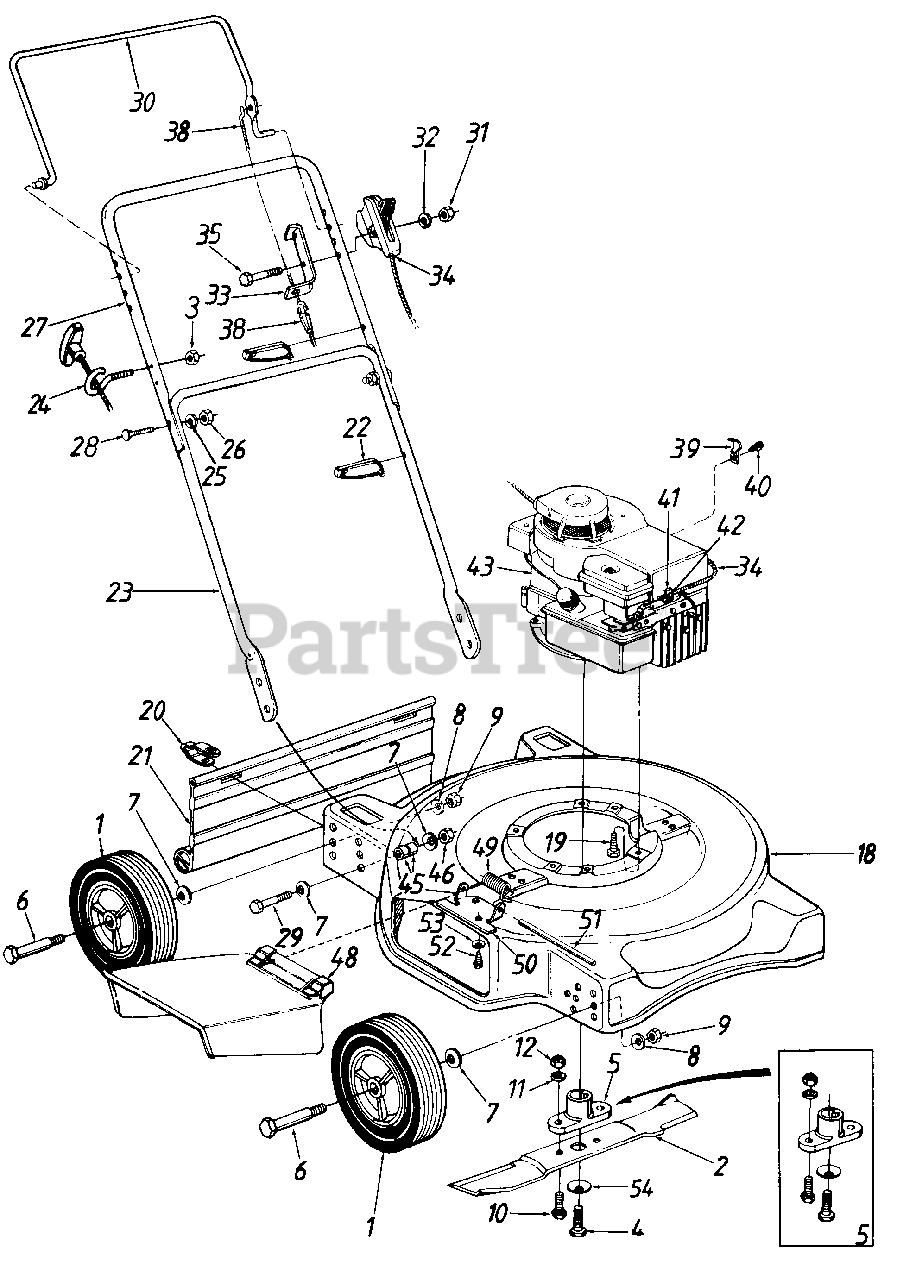

111-060R156 - MTD Walk-Behind Mower (1991) (Somerville Lumber) Parts Parts Diagram

Walk-Behind Mower

Parts Parts Diagram

  • Title

1

Wheel Ass'y. Complete

$

$

Not available

MTD 734-1170

Rib Tread (7")

Note: (Plastic Rim)

$

$

Not available

MTD 734-1169

Rib Tread (8")
(Superseded to 734-04585)

Note: (Plastic Rim)

$20.99

$

In Stock, only 1 left!

0

MTD 734-1161A

Waffle Tread (7")

Note: (Plastic Rim)

$

$

Not available

MTD 734-1162A

Waffle Tread (8")

Note: (Plastic Rim)

$

$

Not available

MTD 734-1609

Bar Tread (7")

Note: (Plastic Rim)

$

$

Not available

MTD 734-1608

Bar Tread (8")
(Superseded to 734-1781)

Note: (Plastic Rim)

$32.99

$

In Stock, Qty 7

0

MTD 734-0893

Waffe Tread (7")

Note: (Steel Rim)

$

$

Not available

MTD 734-0812

Waffle Tread (8")

Note: (Steel Rim)

$

$

Not available

MTD 734-0922

Waffle Tread (7")

Note: (Steel Rim)

$

$

Not available

MTD 734-0924

Waffle Tread (8")

Note: (Steel Rim)

$

$

Not available

MTD 734-0637

Waffle Tread (7")

Note: (Steel Rim)

$

$

Currently unavailable

MTD 734-0645

Waffle Tread (8")

Note: (Steel Rim)

$

$

Not available

2

MTD 742-0520

20" Blade
(Superseded to 942-0620)

$

$

Not available

MTD 742-0522

22" Blade
(Superseded to 942-0622)

$

$

Not available

3

MTD 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

4

MTD 710-1044

Hex Bolt 3/8-24 x 1.5" Lg.

$3.99

$

In Stock, only 2 left!

0

5

MTD 753-0484

Blade Adapter Kit (Keyed)

$23.99

$

In Stock, only 1 left!

0

6

Axle Bolt

$

$

Not available

MTD 738-0533

Axle Bolt (Rib Tread)

$7.99

$

Usually ships in 3-6 days

0

MTD 738-0213

Axle Bolt (Waffle Tread)

$7.99

$

In Stock, only 2 left!

0

MTD 738-0213

Axle Bolt (Bar Tread)

$7.99

$

In Stock, only 2 left!

0

7

MTD 736-0105

Bell-Wash. .380" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

8

MTD 736-0331

Bell-Wash. .39" I.D. x 1.13"

$3.99

$

In Stock, Qty 20+

0

9

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

10

MTD 710-1055

Hex Bolt 3/8-24 x 1" Lg.

$4.99

$

Usually ships in 3-6 days

0

11

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

12

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

18

MTD 17038

20" Deck Ass'y.

$

$

Currently unavailable

MTD 17043

22" Deck Ass'y.

$

$

Currently unavailable

19

MTD 710-0654A

Hex Wash. Hd. Scr. 3/8-16 x 1" Lg.

$4.49

$

In Stock, Qty 20+

0

20

MTD 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

21

MTD 731-0872

Rear Flap 16.75" Lg.
(Superseded to 731-0872B)

$39.99

$

In Stock, Qty 6

0

22

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

23

MTD 749-0372B

Lower Handle
(Superseded to 749-0928A)

$33.99

$

In Stock, only 2 left!

0

24

MTD 710-1205

Rope Guide Bolt

$3.99

$

In Stock, Qty 20+

0

25

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

27

MTD 749-0756A

Upper Handle

$

$

Not available

MTD 710-0671

Curved Carriage Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

29

MTD 710-0459

Hex Bolt 3/8-24 x 1.5" Lg.
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

30

MTD 747-0748

Control Handle

$

$

Not available

31

MTD 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

32

MTD 736-0175

Spr. Wash. .265" I.D. x .562"
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

33

MTD 17174

Cable Mounting Bracket

$

$

Not available

34

MTD 746-0800

Throttle Control Ass'y. Comp.
(Superseded to 746-0800A)

Note: (B&S)

$61.99

$

Usually ships in 3-6 days

0

MTD 746-0756

Throttle Control Ass'y. Comp.
(Superseded to 746P0756A)

Note: (053, 063)

$95.99

$

Usually ships in 3-6 days

0

MTD 746-0665

Throttle Control Ass'y. Comp.
(Superseded to 946-0832A)

Note: (051)

$

$

Not available

35

MTD 710-1216

Hex Bolt 1/4-20 x 1.875" Lg.*

$

$

Not available

MTD 710-0597

Hex Bolt 1/4-20 x 1" Lg.

Note: (Used w/out Throttle Control)

$3.99

$

In Stock, Qty 14

0

38

MTD 746-0553

Control Cable-36"
(Superseded to 946-0553)

Note: (B&S)

$24.99

$

Usually ships in 3-6 days

0

MTD 746-0557

Control Cable-47"
(Superseded to 946-0557)

Note: (Tec.)

$26.99

$

In Stock, only 1 left!

0

39

MTD 12894A

Casing Clamp

Note: (B&S)

$

$

Not available

40

MTD 710-0429

Hex B-Tap Scr. #10 x .38" Lg.
(Superseded to 910-0429)

Note: (B&S)

$3.99

$

Usually ships in 3-6 days

0

41

MTD 751-0369

Casing Clamp

Note: (B&S)

$

$

Not available

42

MTD 710-0227

Hex Wash. Hd. AB-Tap Scr. #8 x .50" Lg.

Note: (B&S)

$4.49

$

In Stock, Qty 20+

0

43

Engine

$

$

Not available

45

MTD 750-0826

Spacer

$

$

Not available

46

MTD 712-0355

Hex L-Nut 3/8-24 Thd.
(Superseded to 912-0355)

$5.49

$

Usually ships in 3-6 days

0

48

MTD 731-1034

Chute Deflector Ass'y.
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 5

0

49

MTD 732-0593

Torsion Spring
(Superseded to 932-0593)

$4.99

$

In Stock, only 3 left!

0

50

MTD 17032

Adapter Plate
(Superseded to 17032A)

$10.99

$

In Stock, only 2 left!

0

51

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

52

MTD 710-0599

Hex Self-Tap Scr. 1/4-20 x .5"

$4.49

$

In Stock, Qty 20+

0

53

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

54

MTD 736-0452

Bell-Wash..39" I.D.

$4.99

$

In Stock, Qty 5

0
