111 (0350025U) - Cub Cadet Lawn Tractor Muffler Parts Diagram

Lawn Tractor

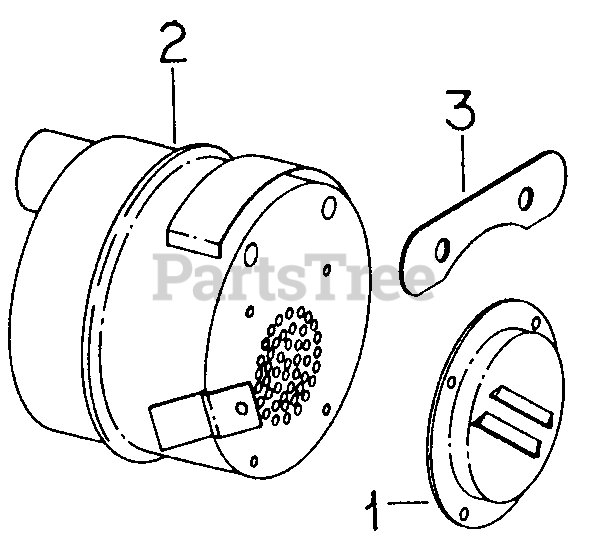

Muffler Parts Diagram

  • Title

1

Cub Cadet BS-397630

Deflector, Exhaust
(Superseded to BS-795038)

$15.99

$

Usually ships in 2-12 days

0

Cub Cadet 710-3090

Screw, No. 8 X 3/8 H/Whd Tap

$

$

Not available

2

Cub Cadet 751-0279

Muffler Assy, 11 HP

$

$

Currently unavailable

Bolt, 1/4 X 1/2 Type 5

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet 736-0329

Washer, 1/4 Lock
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

3

Cub Cadet 751-3028

Clip, Bolt Retainer

$

$

Not available

Bolt, 5/16 X 3-1/4 Type 5

Note: (Common Hardware, Purchase Locally)

$

$

Not available
