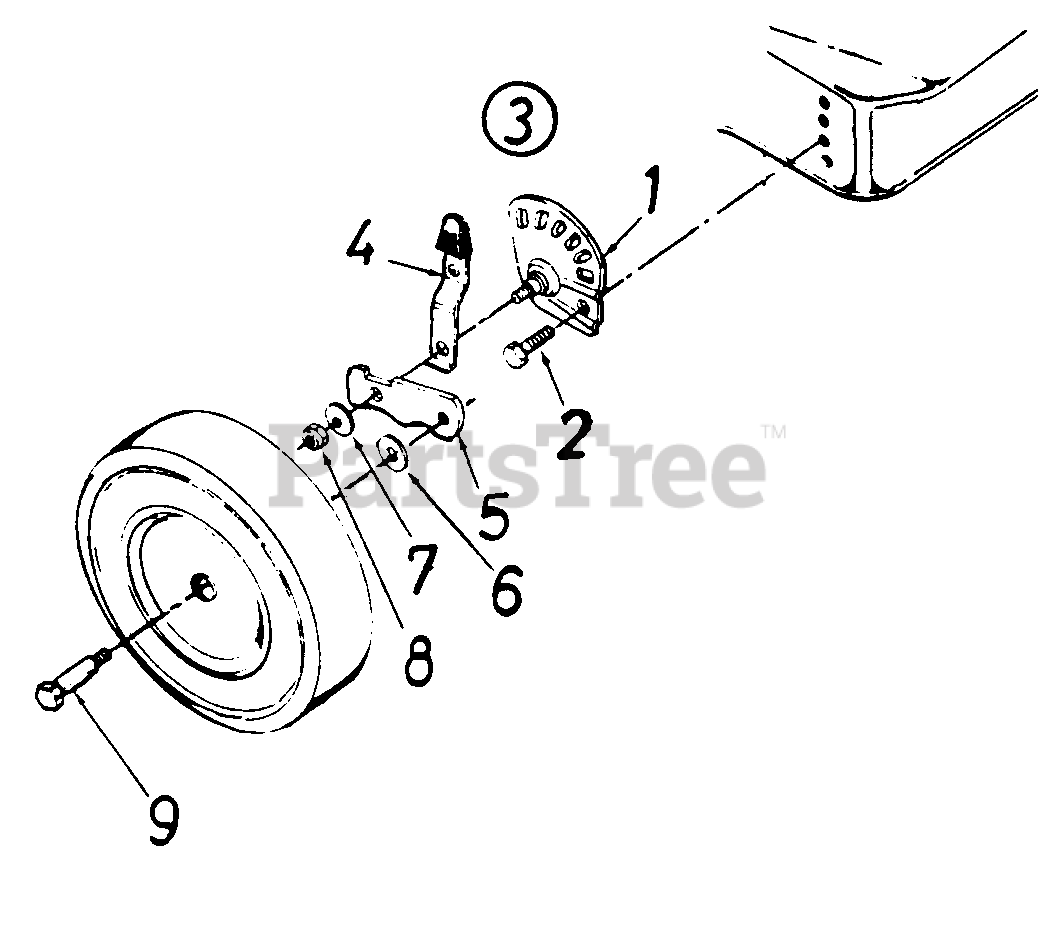

111-020R000 - MTD Walk-Behind Mower (1991) Parts Parts Diagram

Walk-Behind Mower

Parts Parts Diagram

  • Title
1

MTD 10934

Index Plate Ass'y. - R.H.

$

$

Not available

MTD 10935

Index Plate Ass'y. - L.H.

Note: (Not Shown)

$

$

Not available

2

MTD 710-0209

Hex Serns Bon 3/8-16 x .62" Lg.

$

$

Not available

3

MTD 10941

Height AdJ. Ass'y. Comp. - R.H.

$

$

Not available

MTD 10938

Height AdJ. Ass'y. Comp. - L.H.

Note: (Not Shown)

$

$

Not available

4

MTD 14082

Spring Lever Ass'y. w/Knob

$

$

Not available

5

MTD 10937

Pivot Bar

$

$

Not available

6

MTD 736-0105

Bell-Wash. .4" I.D. x .88

$4.49

$

In Stock, Qty 20+

0

7

MTD 736-0219

Bell-Wash. .4" I.D. x 1.13
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

8

MTD 712-0116

Elastic L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

9

MTD 738-0102

Axle Bolt

$9.99

$

In Stock, Qty 10

0
