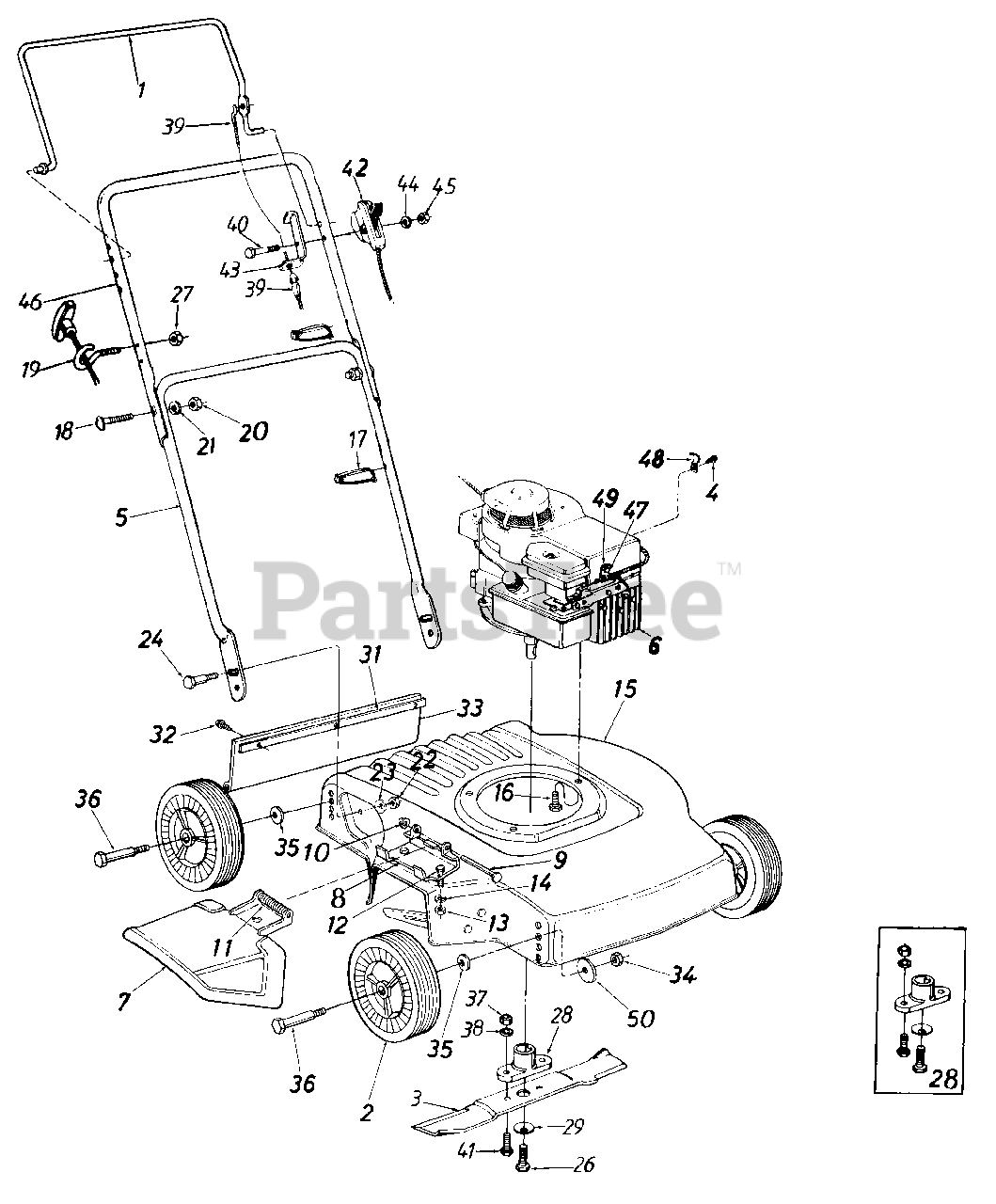

111-020R000 - MTD Walk-Behind Mower (1991) Parts Parts Diagram

Walk-Behind Mower

Parts Parts Diagram

  • Title

1

MTD 747-0748

Control Handle-L.H.

$

$

Not available

2

Plastic Wheel Ass'y. 6 x 1.50

$

$

Not available

MTD 734-0839

Wheel Assembly

$

$

Not available

MTD 734-1175

Wheel Assembly

$

$

Not available

3

MTD 742-0518

18" Blade

$

$

Not available

4

MTD 710-0227

Hex Wash. Hd. AB-Tap Scr. #8 x .50" Lg.

Note: (B&S)

$4.49

$

In Stock, Qty 20+

0

5

MTD 749-0372B

Lower Handle
(Superseded to 749-0928A)

$33.99

$

In Stock, only 2 left!

0

6

Engine

$

$

Not available

7

MTD 11681

Chute Deflector Ass'y. Comp.

$

$

Not available

8

MTD 11130

Adapter Plate

$

$

Not available

9

MTD 711-0555

Pivot Pin

$

$

Not available

10

MTD 726-0106

Push Nut 1/4" Rod

$3.99

$

Usually ships in 3-6 days

0

11

MTD 732-0253

Torsion Spring

$

$

Not available

12

MTD 710-0289

Hex Bolt "4-20 x .50" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

13

MTD 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

14

MTD 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

15

MTD 14922A

18" Deck Ass'y.

$

$

Currently unavailable

16

MTD 710-0654A

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.00" Lg.

$4.49

$

In Stock, only 3 left!

0

17

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

18

MTD 710-0671

Curved Carriage Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

19

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

20

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

21

MTD 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

22

MTD 712-0429

Hex Ins. L-Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

23

MTD 736-0242

Bell-Wash. .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

24

MTD 738-0140

Shoulder Bolt .437" Dia. x .180

$5.99

$

In Stock, Qty 15

0

26

MTD 710-1044

Hex Bolt 3/8-24 x 1.5" Lg. (Grade 5)

$3.99

$

Usually ships in 3-6 days

0

27

MTD 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

28

MTD 753-0484

Blade Adapter Kit

$23.99

$

In Stock, only 1 left!

0

29

MTD 736-0452

Bell-Wash..39" I.D.

$4.99

$

In Stock, Qty 7

0

31

MTD 14835

Retaining Strip

$

$

Not available

32

MTD 710-0776A

Hex Wash. Hd. AB-Tap Scr. 1/4" x.62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

33

MTD 731-1077

Rear Flap Ass'y.

$

$

Not available

34

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

35

MTD 736-0105

Bell-Wash. .400" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

36

MTD 738-0213

Shld. Bolt .498" Dia. x 1.450" Lg.

$7.99

$

In Stock, only 2 left!

0

37

MTD 712-0241

Hex L-Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

38

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

39

MTD 746-0553

Control Cable-36"
(Superseded to 946-0553)

Note: (B&S)

$24.99

$

Usually ships in 3-6 days

0

MTD 746-0557

Control Cable-47"
(Superseded to 946-0557)

Note: (Tec.)

$26.99

$

Usually ships in 3-6 days

0

40

MTD 710-1216

Hex Bolt 1/4-20 x 1.875" Lg.

$

$

Not available

41

MTD 710-1055

Hex Bolt 3/8-24 x 1" Lg.

$4.99

$

Usually ships in 3-6 days

0

42

MTD 746-0800

Throttle Control Ass'y. Comp.
(Superseded to 746-0800A)

Note: (B&S)

$61.99

$

Usually ships in 3-6 days

0

MTD 746-0830

Throttle Control Ass'y. Comp.
(Superseded to 946-0832A)

Note: (Tec.)

$

$

Not available

43

MTD 17174

Cable Mounting Brkt.

$

$

Not available

44

MTD 736-0175

Spr. Wash. .27" I.D. x .57" O.D.
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

45

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

46

MTD 749-0756A

Upper Handle

$

$

Not available

47

MTD 710-0429

Hex B-Tap Scr. #10 x .38" Lg.
(Superseded to 910-0429)

Note: (B&S)

$3.99

$

Usually ships in 3-6 days

0

48

MTD 751-0369

Casing Clamp

Note: (B&S)

$

$

Not available

49

MTD 12894A

Casing Clamp

Note: (B&S)

$

$

Not available

50

MTD 736-0331

Fl-Wash. .398" I.D. x 1.13"

$3.99

$

In Stock, Qty 10

0
