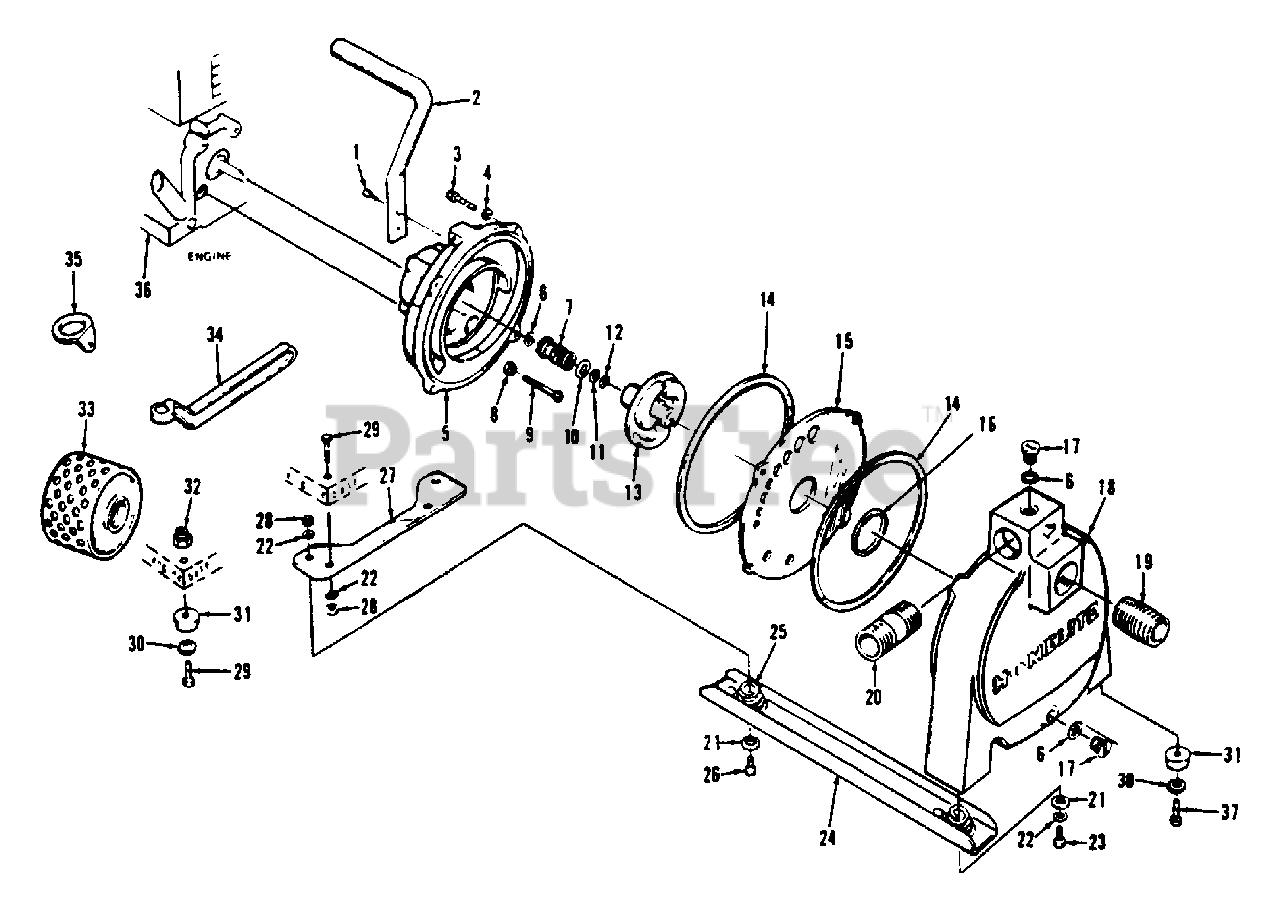

110S11/21 (UT-01470) - Homelite Self-Priming Centrifugal Pump Pump Parts Diagram

Self-Priming Centrifugal Pump

Pump Parts Diagram

  • Title

1

Homelite 806813

SCREW-lock hex, 1/4-20 x 1/2

$

$

Not available

2

Homelite 628762

HANDLE-carryirg

$

$

Currently unavailable

3

Homelite 80284

SCREW-slot hex, 1/4-20 x 1
(Superseded to 82496)

$

$

Not available

4

Homelite 83009

WASHER-lock, 1/4

$8.49

$

Usually ships in 3-7 days

0

5

Homelite 628662

HOUSING-impeller

$

$

Not available

6

Homelite 76885A

WASHER
(Superseded to UP06453)

$

$

Not available

7

Homelite A628612

SEAL-pump

$

$

Currently unavailable

8

Homelite 62874

WASHER-sealing
(Superseded to UP06437)

$4.99

$

Usually ships in 3-7 days

0

9

Homelite 80927

SCREW-slot hex, 5/16-24 x 2-1/4

$

$

Not available

10

Homelite 62882A

SHIM-seal, .010
(Superseded to UP07026)

$15.99

$

Usually ships in 3-7 days

0

Homelite 62883A

SHIM-seal, .015
(Superseded to UP06439)

$

$

Not available

11

Homelite 84056

WASHER-spacer
(Superseded to UP06541)

$3.49

$

Usually ships in 3-7 days

0

12

Homelite 62872

SHIM-impeller, .010

$4.99

$

Usually ships in 3-7 days

0

Homelite 62873

SHIM-impeller, .015

$

$

Not available

13

Homelite 628683

IMPELLER

$

$

Not available

14

Homelite 62871

GASKET

$13.99

$

Usually ships in 3-7 days

0

15

Homelite 628691

PLATE-wear

$

$

Currently unavailable

16

Homelite 62870

GASKET-impeller housing

$

$

Not available

17

Homelite 548586

PLUG-drain

$

$

Currently unavailable

18

Homelite A50849

HOUSING-end (aluminum)

$

$

Currently unavailable

19

Homelite 759591

FITTING-suction

$36.99

$

Usually ships in 3-7 days

0

20

Homelite 627071

FITTING-discharge

$

$

Not available

21

Homelite 84032

WASHER-flat, 5/16

$

$

Not available

22

Homelite 83002

WASHER-lock, 5/16
(Superseded to 653671)

$4.49

$

Usually ships in 3-7 days

0

23

Homelite 800831

SCREW-5/16-18 x 3/4
(Superseded to UP03381)

$

$

Not available

24

Homelite A62890

SKID

$

$

Currently unavailable

25

Homelite 50389

SPRlNG-foot (ea. assembly)
(Superseded to UP03795)

$

$

Not available

26

Homelite 800851

SCREW-hex, 5/16-18 x 1
(Superseded to 80085)

$2.49

$

Usually ships in 3-7 days

0

27

Homelite 628881

BAR-mounting

$

$

Currently unavailable

28

Homelite 810181

NUT-5/16

$

$

Currently unavailable

29

Homelite 80087

SCREW-5/16-18 x 1-1/2

$

$

Not available

30

Homelite 840651

WASHER-flat, 5/16
(Superseded to UP04241)

$

$

Not available

Homelite 840651

WASHER-flat, 5/16 (110SU1-1/2 - 1B only)
(Superseded to UP04241)

$

$

Not available

31

Homelite 61966

FOOT-rubber

$

$

Currently unavailable

Homelite 61966

FOOT-rubber (110SU1-1/2 - 1B only)

$

$

Currently unavailable

32

Homelite 81096

NUT-lock, 5/16
(Superseded to 81235)

$

$

Not available

33

Homelite 30127

STRAINER

$

$

Not available

34

Homelite 22139

WRENCH-spanner
(Superseded to UP03586)

$

$

Not available

35

Homelite 624501

BRACKET-wrench holder

$

$

Not available

36

Homelite 50859

ENGINE-Briggs & Stratton

$

$

Not available

Homelite 50782

ENGlNE-Briggs & Stratton, SU models only

$

$

Not available

37

Homelite 80741

SCREW-hex hd., 5/16-18 x 5/8

Note: (110SU1-1/2 - 1B only)

$

$

Currently unavailable

Homelite 23742A

DECAL-universal

Note: (not shown)

$

$

Currently unavailable

Homelite 23488-B

LOCTITE

$

$

Currently unavailable

Homelite 23475

PAINT-spray can, red

$

$

Not available
