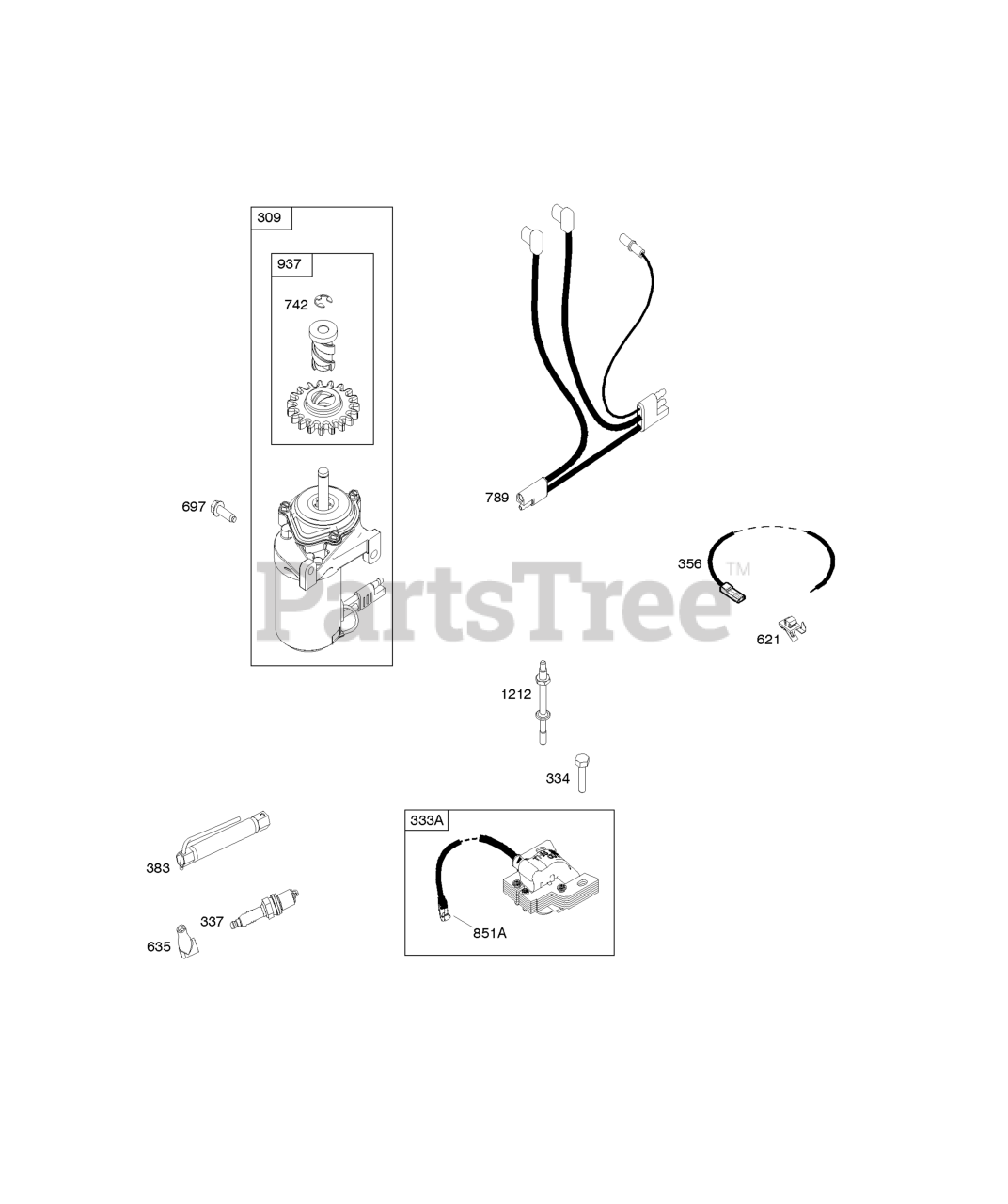

110P02-0003-F1 - Briggs & Stratton Vertical Engine Electric Starter, Ignition Parts Diagram

Vertical Engine

Electric Starter, Ignition Parts Diagram

  • Title

309

Briggs & Stratton 799241

Motor-Starter
(Superseded to 84005206)

$209.99

$

Usually ships in 2-12 days

0

333A

Briggs & Stratton 592335

Armature-Magneto
(Superseded to 595554)

Note: (180 Degree Ignition Terminal)

$38.99

$

In Stock, Qty 17

0

334

Briggs & Stratton 793454

Screw

Note: (Magneto Armature)

$4.49

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 692051

Plug-Spark
(Superseded to RC12YC)

Note: (Resistor)

$3.49

$

Usually ships in 2-12 days

0

356

Briggs & Stratton 692390

Wire-Stop

$

$

Not available

383

Briggs & Stratton 19576S

WRENCH, Spark Plug

$5.99

$

In Stock, only 1 left!

0

621

Briggs & Stratton 692310

Switch-Stop

$5.99

$

In Stock, Qty 20+

0

635

Briggs & Stratton 66538S

BOOT, Spark Plug

$3.99

$

In Stock, Qty 12

0

697

Briggs & Stratton 691127

SCREW

Note: (Starter Motor) (Drive Cap)

$4.49

$

In Stock, Qty 13

0

742

Briggs & Stratton 93941

RETAINER, E Ring

$6.99

$

In Stock, only 1 left!

0

789

Briggs & Stratton 792685

Harness-Wiring

$33.99

$

Usually ships in 2-12 days

0

851A

Briggs & Stratton 692424

Terminal-Spark Plug

$5.99

$

In Stock, Qty 13

0

937

Briggs & Stratton 799420

Spline-Starter

$26.99

$

Usually ships in 2-12 days

0

1212

Briggs & Stratton 796537

Stud

Note: (Blower Housing)

$7.49

$

In Stock, only 1 left!

0
