110902-1232-02 - Briggs & Stratton Vertical Engine Carburetor Assy,Controls Parts Diagram

Vertical Engine

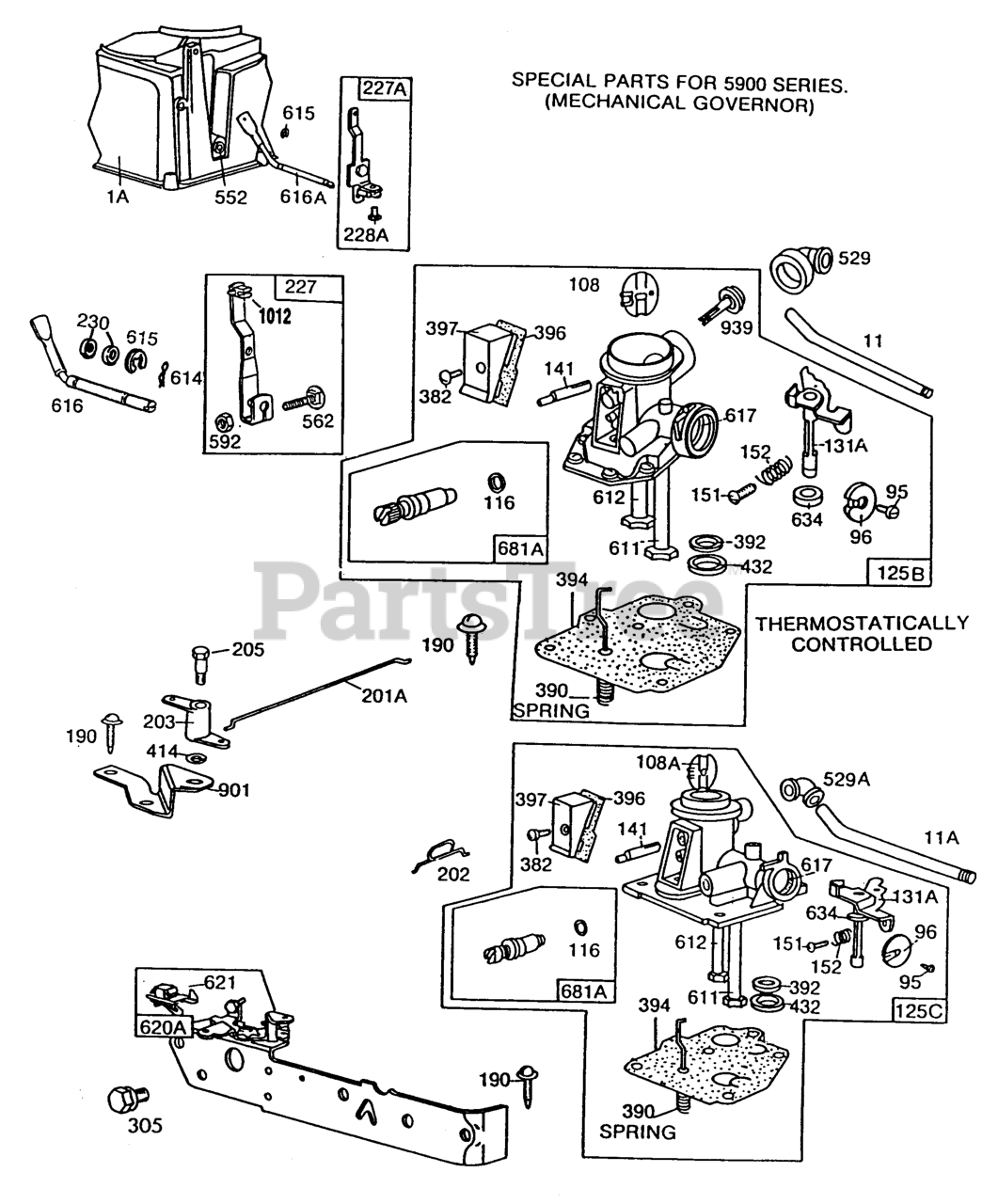

Carburetor Assy,Controls Parts Diagram

  • Title

1A

Briggs & Stratton 399167

Cylinder Assy (Mechanical Governor)

$186.99

$

Usually ships in 2-12 days

0

11A

Briggs & Stratton 231043

Tube-Breather

$7.49

$

In Stock, only 1 left!

0

11

Briggs & Stratton 231292

Tube-Breather

$4.49

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 93499

Screw, Sem Pan Head (Throttle Valve)
(Superseded to 691437)

$3.99

$

In Stock, only 3 left!

0

96

Briggs & Stratton 211237

Valve-Throttle

$8.99

$

Usually ships in 2-12 days

0

108A

Briggs & Stratton 280429

Valve-Choke

Note: Used After Code Date 83110604

$6.49

$

Usually ships in 2-12 days

0

108A

Briggs & Stratton 280178

Valve-Choke

$6.49

$

Usually ships in 2-12 days

0

108

Briggs & Stratton 280370

Valve-Choke

$5.99

$

Usually ships in 2-12 days

0

108

Briggs & Stratton 280429

Valve-Choke

Note: Used After Code Date 83110604

$6.49

$

Usually ships in 2-12 days

0

116

Briggs & Stratton 280203

Seal-O
(Superseded to 691898)

$5.49

$

In Stock, only 1 left!

0

125B

Briggs & Stratton 396336

Carburetor (Mechanical Governor)

$

$

Not available

125C

Briggs & Stratton 397180

Carburetor Assy.

Note: Used After Code Date 83110604

$

$

Not available

125C

Briggs & Stratton 396336

Carburetor (Mechanical Governor)

$

$

Not available

131A

Briggs & Stratton 394035

Shaft-Throttle (Mechanical Governor)

$13.99

$

Usually ships in 2-12 days

0

141

Briggs & Stratton 68908

Shaft-Choke

$14.99

$

Usually ships in 2-12 days

0

151

Briggs & Stratton 93524

Screw-Slotted (5-40 X 1/2")

$3.99

$

Usually ships in 2-12 days

0

152

Briggs & Stratton 260746

Spring-Throttle Adjustment
(Superseded to 691783)

$7.99

$

In Stock, Qty 11

0

190

Briggs & Stratton 93440

Screw, Sem Pan Hd C
(Superseded to 692200)

$

$

Not available

201A

Briggs & Stratton 261918

Link-Mech Gov

$7.99

$

Usually ships in 2-12 days

0

202

Briggs & Stratton 261897

Link-Air Vane (Mechanical Governor)

$5.99

$

Usually ships in 2-12 days

0

203

Briggs & Stratton 280272

Crank-Bell (Mechanical Governor)

$8.49

$

Usually ships in 2-12 days

0

205

Briggs & Stratton 231520

Screw, Shoulder Hex (#8-32 Thread)
(Superseded to 691776)

Note: Used After Code Date 86112300

$

$

Not available

205

Briggs & Stratton 93838

Screw, Shoulder Hex (#6-32 Thread)
(Superseded to 691630)

Note: Used Before Code Date 86112400

$10.99

$

In Stock, only 2 left!

0

227A

Briggs & Stratton 396504

Lever/Clamp Grp (Mechanical Governor)
(Superseded to 491481)

$13.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 491482

Lever-Governor

$15.99

$

Usually ships in 2-12 days

0

228A

Briggs & Stratton 93758

Screw, Hex Wash Hd
(Superseded to 690345)

$4.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 94153

Screw, Sem Hex Head
(Superseded to 692198)

$5.99

$

In Stock, Qty 12

0

382

Briggs & Stratton 93545

Screw-Cover

$3.49

$

In Stock, only 1 left!

0

390

Briggs & Stratton 261249

Spring-Diaphragm

$5.99

$

Usually ships in 2-12 days

0

392

Briggs & Stratton 260455

Spring-Pump Diaphragm
(Superseded to 692206)

$4.49

$

In Stock, Qty 10

0

394

Briggs & Stratton 391681

Diaphragm-Carburetor

$19.99

$

In Stock, Qty 8

0

396

Briggs & Stratton 270571

Gasket-Choke Link Cover

$6.99

$

In Stock, Qty 12

0

397

Briggs & Stratton 211678

Cover-Choke Link

$3.49

$

Usually ships in 2-12 days

0

414

Briggs & Stratton 220982

Washer, Steel Zinc
(Superseded to 691721)

Note: Used Before Code Date 86112400

$7.49

$

In Stock, only 1 left!

0

414

Briggs & Stratton 223932

Washer

Note: Used After Code Date 86112300

$4.49

$

Usually ships in 2-12 days

0

432

Briggs & Stratton 221377

Cap-Spring
(Superseded to 690766)

$4.99

$

In Stock, Qty 5

0

529A

Briggs & Stratton 67838

Grommet, Cover
(Superseded to 692189)

$4.49

$

In Stock, Qty 16

0

529

Briggs & Stratton 280368

Grommet-Breather

$7.99

$

Usually ships in 2-12 days

0

552

Briggs & Stratton 230732

Bushing-Gov Crank (3/16" I.d.)

$6.49

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 92613

Bolt-Gov Lever

$

$

Not available

592

Briggs & Stratton 231082

Nut (10-24)
(Superseded to 691251)

$3.49

$

In Stock, Qty 9

0

611

Briggs & Stratton 297219

Tube-Pick Up (2-5/8" Long)
(Superseded to 297219S)

$8.99

$

Usually ships in 2-12 days

0

612

Briggs & Stratton 296811

Pipe/Sleeve Assy
(Superseded to 497413S)

$7.49

$

In Stock, Qty 9

0

614

Briggs & Stratton 93306

Pin, Cotter
(Superseded to 691620)

$4.49

$

In Stock, only 2 left!

0

615

Briggs & Stratton 93307

Retainer-E Ring

$5.99

$

In Stock, only 3 left!

0

616A

Briggs & Stratton 394075

Crank-Governor (Mechanical Governor)

$18.99

$

Usually ships in 2-12 days

0

616

Briggs & Stratton 491405

Governor Crank And Retainer Assy.

$12.99

$

Usually ships in 2-12 days

0

617

Briggs & Stratton 270344

Seal-Intake Tube
(Superseded to 270344S)

$3.49

$

In Stock, Qty 20+

0

620A

Briggs & Stratton 394642

Bracket-Control (Remote Control)

$21.99

$

Usually ships in 2-12 days

0

621

Briggs & Stratton 297472

Switch, Stop Assy
(Superseded to 297472S)

Note: Used Before Code Date 85032800

$

$

Not available

621

Briggs & Stratton 396847

Switch, Stop Assy
(Superseded to 692310)

Note: Used After Code Date 85032700

$5.99

$

In Stock, Qty 20+

0

634

Briggs & Stratton 270167

Washer (Felt)

$4.99

$

In Stock, Qty 13

0

681A

Briggs & Stratton 393451

Neddle Valve (Plastic Body)
(Superseded to 395508)

$8.99

$

Usually ships in 2-12 days

0

901

Briggs & Stratton 490818

Bracket-Mounting (Mechanical Governor)

$6.49

$

Usually ships in 2-12 days

0

939

Briggs & Stratton 395665

Shaft-Auto Choke (Includes Spring)

$14.99

$

Usually ships in 2-12 days

0

1012

Briggs & Stratton 280414

Retsiner-Link
(Superseded to 690585)

$4.99

$

Usually ships in 2-12 days

0
