11084C - MTD Walk-Behind Mower (1986) Rotary Parts Diagram

Walk-Behind Mower

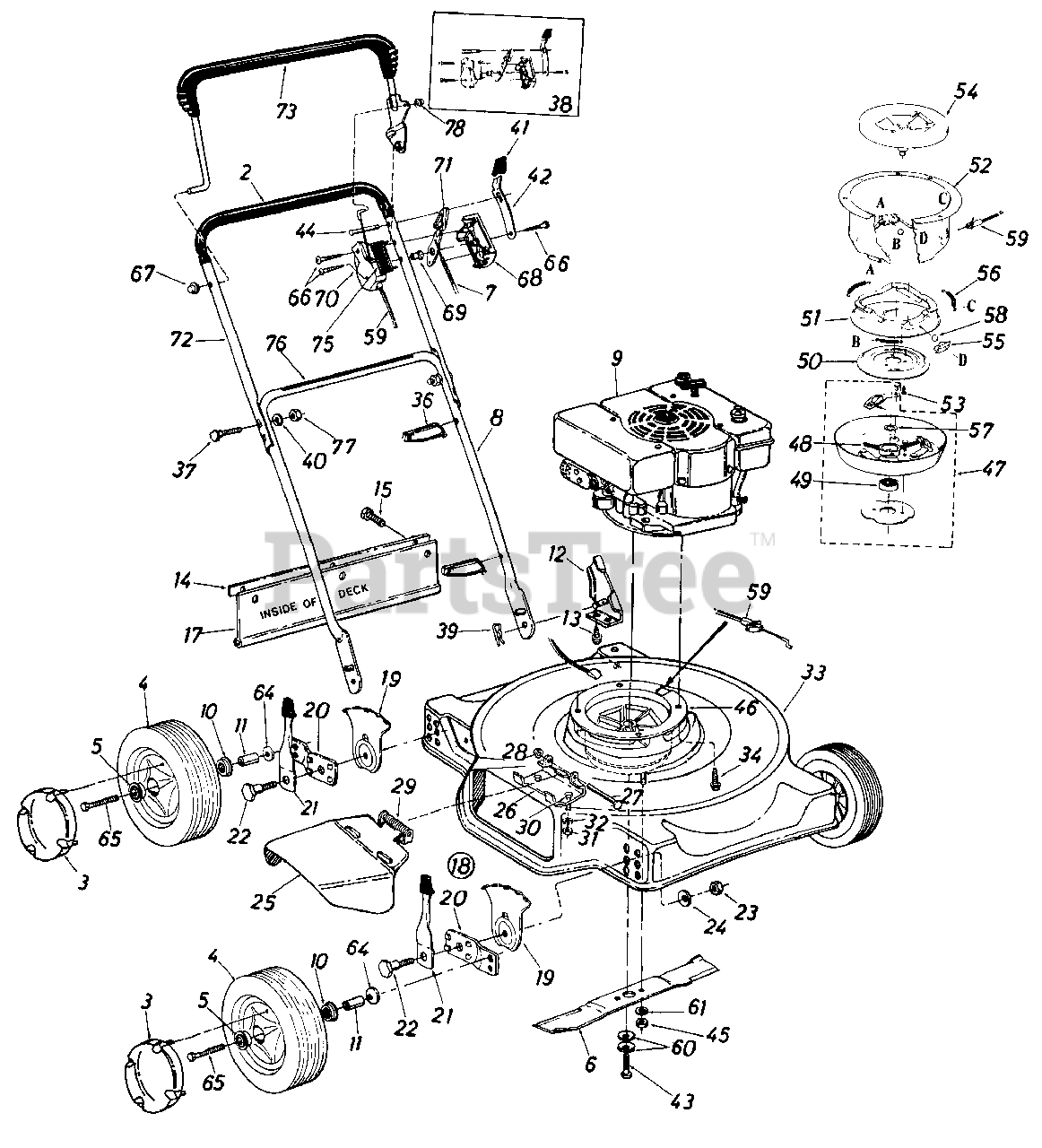

Rotary Parts Diagram

  • Title

2

MTD 718-0145

Grip

$

$

Currently unavailable

3

MTD 731-0571

Hub Cap

$

$

Currently unavailable

4

MTD 734-0657

Wheel Ass'y. Comp.

$

$

Not available

5

MTD 741-0267

Ball Bearing 3/8" I.D.

$

$

Not available

6

MTD 742-0222

22" Blade

$

$

Not available

7

MTD 746-0632

Throttle Control Wire 39"
(Superseded to 946-0671A)

$14.99

$

In Stock, only 3 left!

0

8

MTD 749-0373

Lower Handle
(Superseded to 749-0928A)

$33.99

$

In Stock, only 2 left!

0

9

3.5 H.P.Engine Tec. TVS 90-43261

$

$

Not available

10

MTD 741-0484

Ball Bearing 1/2" I.D.
(Superseded to 941-0484)

$7.49

$

In Stock, only 1 left!

0

11

MTD 750-0434

Spacer

$6.99

$

Usually ships in 3-6 days

0

12

MTD 12935

Handle Mount Brkt. Ass'y. L.H.

$

$

Not available

MTD 12936

Handle Mount Brkt. Ass'y. R.H.

Note: (Not Shown)

$

$

Not available

13

MTD 710-0603

Hex Wash. Hd. B-Tap Scr. 5/16-18 x .50" Lg.

$4.99

$

Usually ships in 3-6 days

0

14

MTD 14846

Retaining Strip

$

$

Not available

15

MTD 710-0776

Hex Wash. Hd. AB-Tap Scr. 1/4 " x .62 " Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

17

MTD 731-0575

Rear Flap Ass'y.
(Superseded to 731-1029)

$26.99

$

Usually ships in 3-6 days

0

18

MTD 14578

Height Adj. Ass'y. R.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

MTD 14579

Height Adj. Ass'y. L.H.
(Superseded to 753-06761)

Note: (Not Shown)

$65.99

$

In Stock, Qty 7

0

19

MTD 15261

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

20

MTD 15262

Pivot Bar
(Superseded to 15262B)

$14.99

$

In Stock, only 1 left!

0

21

MTD 14832

Spring Lever w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

22

MTD 738-0507

Shld. Bolt .500" Dia. x .375
(Superseded to 938-0507B)

$4.49

$

In Stock, Qty 20+

0

23

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

24

MTD 736-0356

Bell-Wash. .39" I.D. x 1.4" O. D.
(Superseded to 936-0356)

$

$

Not available

25

MTD 14944

Chute Deflector Ass'y. Comp.
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 5

0

26

MTD 11130

Deflector Hinge Plate

$

$

Not available

27

MTD 711-0555

Pivot Pin

$

$

Not available

28

MTD 726-0106

Cap Speed Nut 1/4" Rod

$3.99

$

Usually ships in 3-6 days

0

29

MTD 732-0253

Torsion Spring

$

$

Not available

30

MTD 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

31

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

32

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

33

MTD 16302

22" Deck Ass'y.

$

$

Currently unavailable

34

MTD 710-0654

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.00" Lg.
(Superseded to 710-0654A)

$4.49

$

In Stock, Qty 20+

0

36

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

37

MTD 710-0671

Carriage Bolt 5/16-18 x 1.75" Lg.

$

$

Not available

38

MTD 753-0431

Kit Control Housing Comp.

$

$

Not available

39

MTD 714-0104

Hairpin Cotter

$4.49

$

In Stock, Qty 20+

0

40

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

41

MTD 720-0190

Spring Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

42

MTD 732-0401

Lock Out Spring

$

$

Not available

43

MTD 710-0818

Hex Cent. L-Bolt 3/8-24 x 2.00" Lg.

$6.99

$

Usually ships in 3-6 days

0

44

MTD 711-0719

Lock Pin .75" Dia. x 1.80

$

$

Not available

45

MTD 712-0328

Special Hex Nut 5/16-24 Thd.
(Superseded to 712-0241)

$4.49

$

In Stock, Qty 13

0

46

MTD 717-0482

Blade Brake Clutch Ass'y. Comp.

$

$

Not available

47

MTD 14300

Clutch Blade Housing Ass'y.

$

$

Not available

48

MTD 732-0396

Comp. Spring .35" O.D. x 2.00" Lg.

$

$

Not available

49

MTD 741-0124

Ball Brg. .669" I.D. x 1.574" O. D.
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

50

MTD 14304

Clutching Cone

$

$

Not available

51

MTD 14305

Brake Cup Cone

$

$

Currently unavailable

52

MTD 14306

Clutch Housing

$

$

Currently unavailable

53

MTD 710-0875

Hex Wash. TT-Tap Cl.-Scr. 1/4-20 x .75" Lg.

$3.99

$

In Stock, only 2 left!

0

54

MTD 719-0256

Fan Adapter

$

$

Not available

55

MTD 731-0520

Ball Block

$

$

Not available

56

MTD 732-0397

Extension Spring .35" O.D. x 1.75" Lg.

$

$

Not available

57

MTD 736-0333

Fl-Wash. .690" I.D. x 1.060" O. D.

$

$

Not available

58

MTD 741-0326

Steel Ball .500" Dia.

$

$

Not available

59

MTD 746-0402A

Clutch Cable 43"

$

$

Not available

60

MTD 736-0105

Bell-Wash. .400" I.D. x .88" O. D.

$4.49

$

In Stock, Qty 20+

0

61

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

64

MTD 736-0105

Bell-Wash. .400" I.D. x .88" O. D.

$4.49

$

In Stock, Qty 20+

0

65

MTD 710-0427

Axle Bolt
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0

66

MTD 710-0796

Truss Mach. Hi-B Tap Scr. #12 x 1.50" Lg.

$5.49

$

In Stock, only 1 left!

0

67

MTD 726-0135

Cap Speed Nut 5/16" Rod

$6.99

$

In Stock, only 1 left!

0

68

MTD 731-0817

Control Panel Half

$

$

Not available

69

MTD 731-0524

Control Disc Pin

$

$

Not available

70

MTD 731-0816

Clutch Panel Half

$

$

Not available

71

MTD 731-0528

Throttle Control Lever
(Superseded to 931-0972)

$9.99

$

In Stock, Qty 13

0

72

MTD 749-0536

Upper Handle
(Superseded to 749-0538E-0637)

$

$

Not available

73

MTD 731-0609

Control Handle Ass'y.

$

$

Not available

75

MTD 777-5813

Control Label Throttle

$

$

Currently unavailable

76

MTD 777-5815

Instruction Label Handle

$

$

Currently unavailable

77

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

78

MTD 726-0111

Push cap

$

$

Not available
