11078 - Troy-Bilt Mini-Tiller (SN: HH026799 & Below) TRANSMISSION Parts Diagram

Mini-Tiller

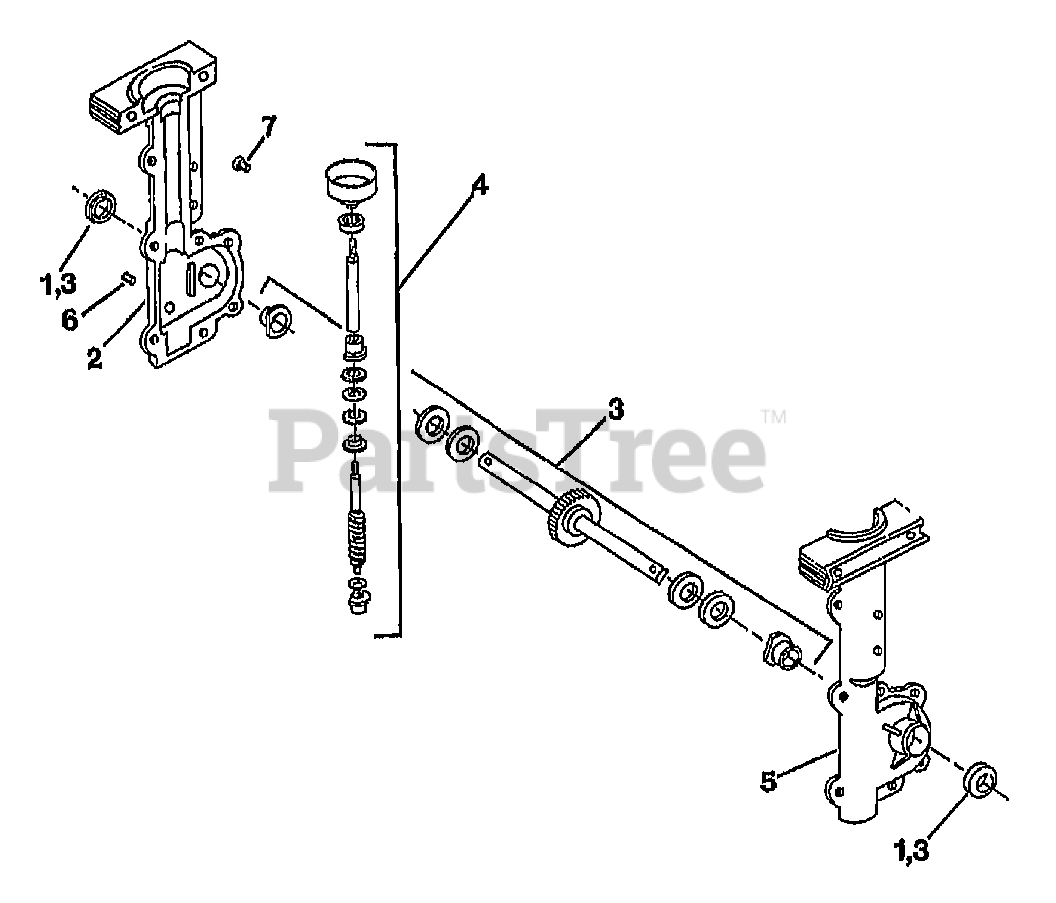

TRANSMISSION Parts Diagram

  • Title
1

$

$

Currently unavailable

2

0

TRANSNISSION, RIGHT HAND HALF

$

$

Not available

2

Troy-Bilt H214166

ASSM-TRANSMISSION SPDY HOE

$

$

Currently unavailable

3

Troy-Bilt H213798-S

KIT-TINE SHAFT (INCL. TWO 1 & 3)

$

$

Currently unavailable

4

Troy-Bilt H213553-S

INPUT SHAFT ASM KIT-HHT

$

$

Currently unavailable

5

0

TRANSMISSION LEFT HAND HALF

$

$

Not available

5

Troy-Bilt H214166

ASSM-TRANSMISSION SPDY HOE

$

$

Currently unavailable

6

Troy-Bilt H213761

PLUG-OIL FILL HHT

$

$

Currently unavailable

7

Troy-Bilt H200723

SCR-PHP M10-32X.38 STH ZP

$

$

Currently unavailable
