11069 - Troy-Bilt Brush Cutter (SN: H010508 & Above) CLUTCH AND CLUTCH HOUSING ASSEMBLY Parts Diagram

Brush Cutter

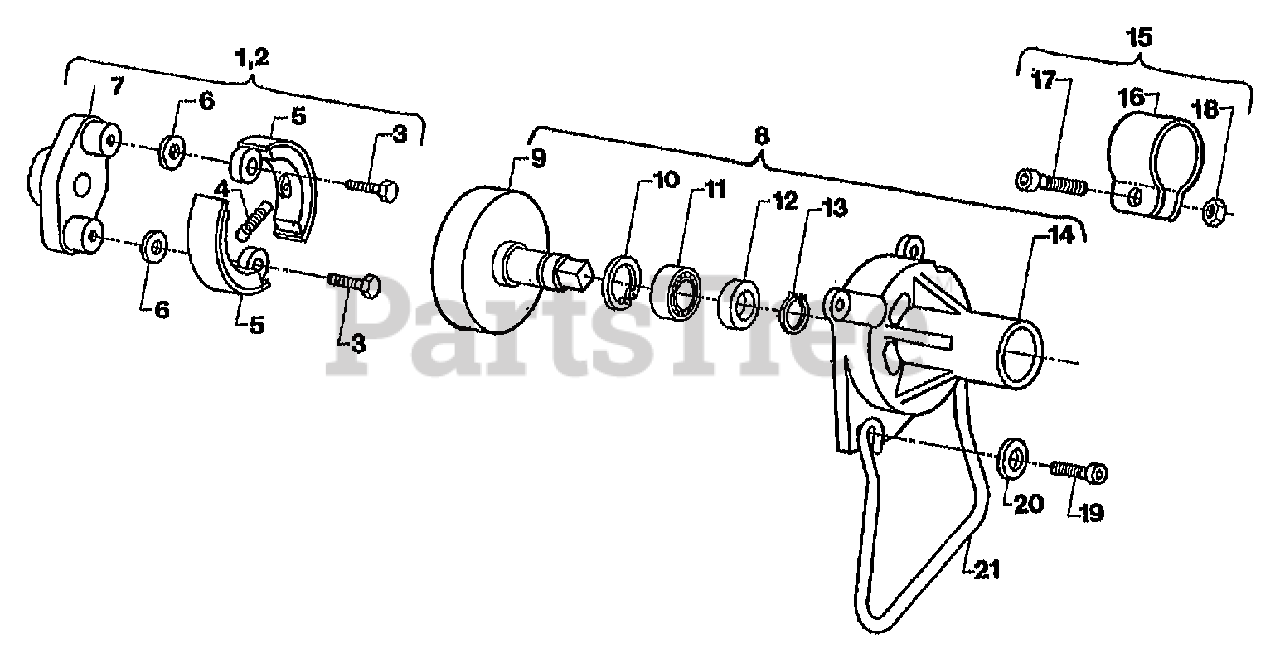

CLUTCH AND CLUTCH HOUSING ASSEMBLY Parts Diagram

  • Title

1

Troy-Bilt H211145

ASSM-CLUTCH (COMPLETE) (INCL. 3-7)

$

$

Currently unavailable

2

Troy-Bilt H211318

ASSM-CLUTCH (COMPLETE) (INCL. 3-6)

$

$

Currently unavailable

3

0

SCREW, HEX, HD., CLUTCH

$

$

Not available

4

Troy-Bilt H211147

SPRING (GREEN)-CLUTCH

$

$

Currently unavailable

5

0

SHOE CLUTCH

$

$

Not available

6

0

WASHER, FLAT, 1/4" I.D. CLUTCH

$

$

Not available

7

Troy-Bilt H209983

ROTOR THREADED-CLUTCH

$

$

Currently unavailable

8

Troy-Bilt H213660

ASSM-CLUTCH HOUSING (INCL. 9-14)

$

$

Currently unavailable

9

Troy-Bilt H212812

ASSM-DRUM & ARBOR

$

$

Currently unavailable

10

Troy-Bilt H205417

RING-RETAINING

$

$

Currently unavailable

11

Troy-Bilt H208960

BEARING

$

$

Currently unavailable

12

Troy-Bilt H206415

SPACER

$

$

Currently unavailable

13

Troy-Bilt H206395

RING-RETAINING

$

$

Currently unavailable

14

Troy-Bilt H213659

HSG-CLUTCH W/BRG (INCL. 11-13)

$

$

Currently unavailable

15

Troy-Bilt H212972

KIT, CLAMP ASSEMBLY, (INCL. 16-18)

$

$

Currently unavailable

16

0

CLAMP

$

$

Not available

17

0

SCREW, 1/4"-20x3/4", SOCKET HD. CAP

$

$

Not available

18

0

NUT, 1/4"-20, CLAMP

$

$

Not available

19

Troy-Bilt H200734

SCR-HXSKT 1/4-20X.75

$

$

Currently unavailable

20

Troy-Bilt H200662

WASHER-MOTOR LEG

$

$

Currently unavailable

21

Troy-Bilt H209605

LEG-MOTOR

$

$

Currently unavailable

0

ENGINE, TECUMSEH-LAUSON, 1.6 HP (TC-200- 2001C)

$

$

Not available
