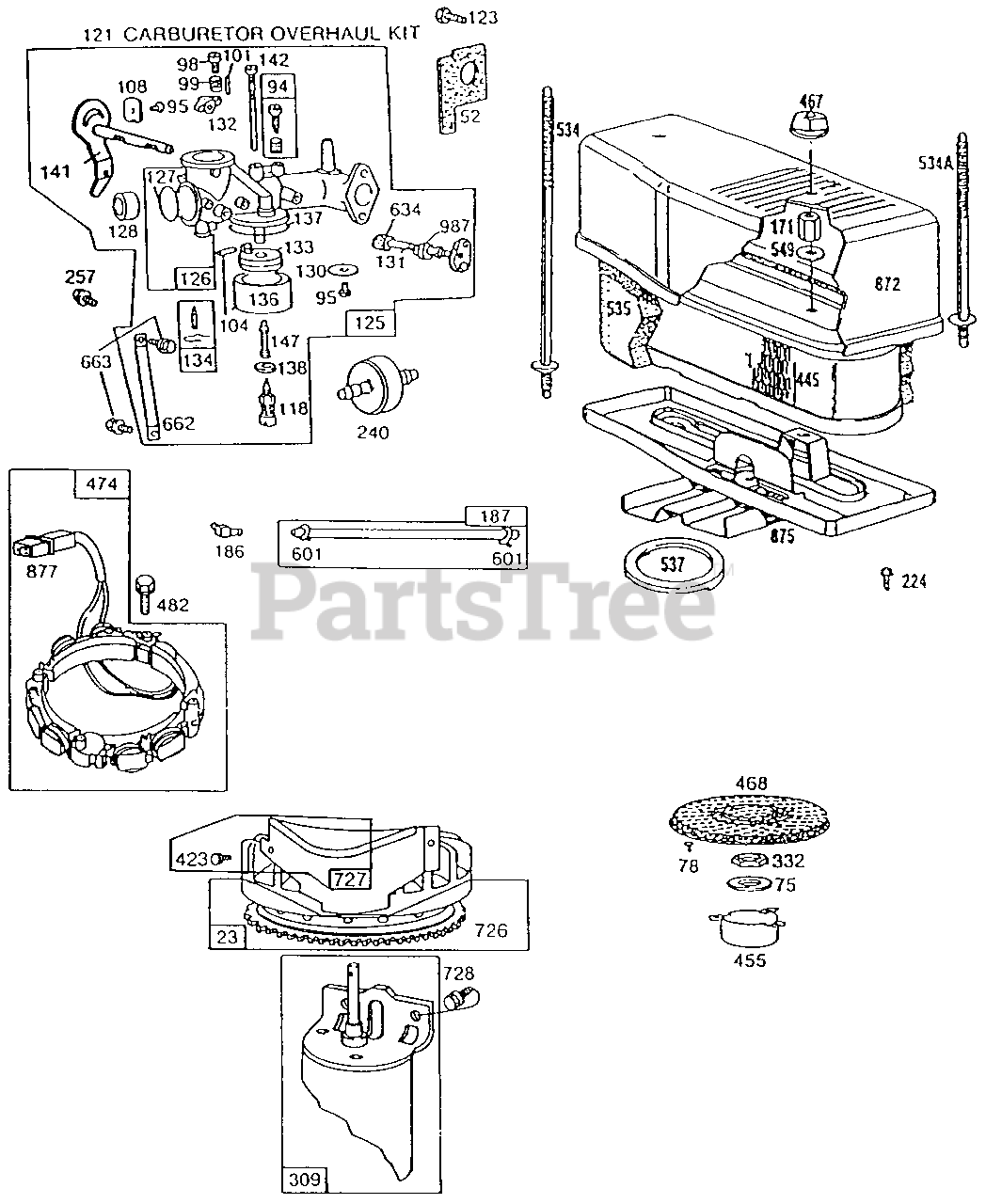

1106 (138-519-100) - Cub Cadet Rear-Engine Riding Mower Engine (1988) B&S 11.0 HP-253707-0419-01 Part 2 Parts Diagram

Rear-Engine Riding Mower Engine

B&S 11.0 HP-253707-0419-01 Part 2 Parts Diagram

  • Title

23

Cub Cadet BS-391988

Flywheel and Ring Gear Ass'y.- Magneto

$

$

Not available

52

Cub Cadet BS-270872

Gasket-Carburetor Mounting
(Superseded to BS-272554S)

Note: (Included in Gasket Set-Part No.393411)

$5.49

$

In Stock, Qty 5

0

75

Cub Cadet BS-220865

Washer-Spring

$

$

Currently unavailable

78

Cub Cadet BS-93805

Screw-Sem
(Superseded to BS-691655)

$3.99

$

Usually ships in 2-12 days

0

94

Cub Cadet BS-292681

Valve Assembly-Carburetor Idle

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$11.99

$

In Stock, only 1 left!

0

95

Cub Cadet BS-93499

Screw-Throttle and Choke Valve Mtg. Sem
(Superseded to BS-691437)

$3.99

$

In Stock, only 3 left!

0

98

Cub Cadet BS-91920

Screw-Machine, Fill. Hd. 8/32 x 5/8"

$

$

Currently unavailable

99

Cub Cadet BS-26157

Spring-Throttle Adjustment
(Superseded to BS-691591)

$8.99

$

Usually ships in 2-12 days

0

101

Cub Cadet BS-93043

Pin-Throttle Stop

$

$

Not available

104

Cub Cadet BS-230896

Pin-Float Hinge

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$

$

Not available

108

Cub Cadet BS-222010

Valve Choke

$7.99

$

Usually ships in 2-12 days

0

118

Cub Cadet BS-396568

Valve-Needle

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$20.99

$

Usually ships in 2-12 days

0

121

Cub Cadet BS-394698

Carburetor Overhaul Kit

$32.99

$

In Stock, Qty 14

0

123

Cub Cadet BS-93357

Screw-Carburetor Mtg.

$

$

Not available

125

Cub Cadet BS-490472

Carburetor Assembly

$

$

Not available

126

Cub Cadet BS-490473

Body Assembly-Carburetor

$109.99

$

Usually ships in 2-12 days

0

127

Cub Cadet BS-221997

Plug-Welch

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$4.99

$

In Stock, only 1 left!

0

128

Cub Cadet BS-211960

Venturi-Carburetor

$

$

Currently unavailable

130

Cub Cadet BS-222433

Valve-Throttle

$9.49

$

Usually ships in 2-12 days

0

131

Cub Cadet BS-491006

Shaft and Lever-Throttle

$21.99

$

In Stock, only 2 left!

0

132

Cub Cadet BS-211712

Stop-Throttle
(Superseded to BS-691708)

$8.99

$

Usually ships in 2-12 days

0

133

Cub Cadet BS-299707

Float-Carburetor

$

$

Not available

134

Cub Cadet BS-394681

Valve-Fuel Inlet

Note: Note: 394682 Valve-Fuel Inlet (Includes Brass Seat)

$7.99

$

In Stock, only 1 left!

0

136

Cub Cadet BS-221995

Bowl-Float

$8.99

$

In Stock, Qty 6

0

137

Cub Cadet BS-270511

Gasket-Float Bowl

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$3.49

$

In Stock, Qty 19

0

138

Cub Cadet BS-222014

Washer-Float Bowl
(Superseded to BS-690618)

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$4.99

$

In Stock, Qty 9

0

141

Cub Cadet BS-299647

Shaft and Lever-Manual Choke

$16.99

$

Usually ships in 2-12 days

0

142

Cub Cadet BS-299740

Nozzle-Carburetor

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$15.99

$

In Stock, only 2 left!

0

147

Cub Cadet BS-231323

Screw-Nozzle

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$24.99

$

Usually ships in 2-12 days

0

171

Cub Cadet BS-231532

Nut-Air Cleaner Mtg.
(Superseded to BS-691668)

$5.49

$

In Stock, only 1 left!

0

186

Cub Cadet BS-67218

Connector-Fuel Pipe

$

$

Not available

187

Cub Cadet BS-393815

Line-Fuel

Note: (Cut to Suit)

$11.99

$

Usually ships in 2-12 days

0

224

Cub Cadet BS-94018

Screw-Sem
(Superseded to BS-690859)

$3.99

$

In Stock, Qty 8

0

240

Cub Cadet BS-298090

Filter-Fuel
(Superseded to BS-298090S)

$

$

Not available

257

Cub Cadet BS-93543

Screw-Control Casing to Screw

$

$

Not available

309

Motor-Starting (12 Volt)

Note: See Chart for Replacement Parts for Starting Motors.

$

$

Not available

332

Cub Cadet BS-92284

Nut-Hex
(Superseded to 712-3056)

$4.99

$

In Stock, Qty 13

0

423

Cub Cadet BS-93984

Screw-Sem

$

$

Currently unavailable

445

Cub Cadet BS-399806

Cartridge-Air Cleaner
(Superseded to BS-399806S)

$28.99

$

In Stock, only 1 left!

0

455

Cub Cadet BS-222561

Cup--Screen Mounting

$

$

Not available

467

Cub Cadet BS-212706

Knob-Air Cleaner
(Superseded to BS-691668)

$5.49

$

In Stock, only 1 left!

0

468

Cub Cadet BS-222562

Screen-Flush Rotating
(Superseded to BS-691748)

$232.99

$

In Stock, only 1 left!

0

474

Cub Cadet BS-393474

Stator-Alternator (Dual Circuit)
(Superseded to BS-592831)

$101.99

$

In Stock, Qty 8

0

482

Cub Cadet BS-93621

Screw-Sem
(Superseded to BS-691183)

$

$

Not available

534

Cub Cadet BS-94248

Screw-Air Cleaner

$

$

Not available

534A

Cub Cadet BS-94248

Screw-Air Cleaner

$

$

Not available

535

Cub Cadet BS-271962

Element-Air Cleaner
(Superseded to BS-271962S)

$6.49

$

In Stock, Qty 7

0

537

Cub Cadet BS-270853

Gasket-Air Cleaner

$9.49

$

In Stock, only 1 left!

0

549

Cub Cadet BS-94249

Washer-Air Cleaner
(Superseded to BS-691668)

$5.49

$

In Stock, only 1 left!

0

601

Cub Cadet BS-93053

Clamp-Fuel Pipe
(Superseded to BS-791850)

$3.49

$

In Stock, Qty 20+

0

634

Cub Cadet BS-271853

Washer-Throttle Shaft
(Superseded to BS-692279)

$3.99

$

In Stock, only 3 left!

0

662

Cub Cadet BS-222311

Bracket-Carburetor

$

$

Not available

663

Cub Cadet BS-93572

Screw
(Superseded to 710-0432)

$

$

Not available

726

Cub Cadet BS-392134

Gear-Ring (Includes Mounting Parts)
(Superseded to BS-696537)

$50.99

$

Usually ships in 2-12 days

0

727

Cub Cadet BS-395405

Cover-Starter (Includes Mounting Screws)

$

$

Not available

728

Cub Cadet BS-93535

Screw-Sem

$

$

Not available

872

Cub Cadet BS-223700

Cover-Air Cleaner

$44.99

$

Usually ships in 2-12 days

0

875

Cub Cadet BS-490332

Body-Air Cleaner

$

$

Not available

877

Cub Cadet BS-393456

Diode and Connector Ass'y. (Dual Circuit)

$20.99

$

In Stock, only 1 left!

0

987

Cub Cadet BS-398970

Seal-Throttle Shaft
(Superseded to BS-692279)

$3.99

$

In Stock, only 3 left!
