1106 (138-519-100) - Cub Cadet Rear-Engine Riding Mower (1988) Parts For Riding Mower Part 2 Parts Diagram

Rear-Engine Riding Mower

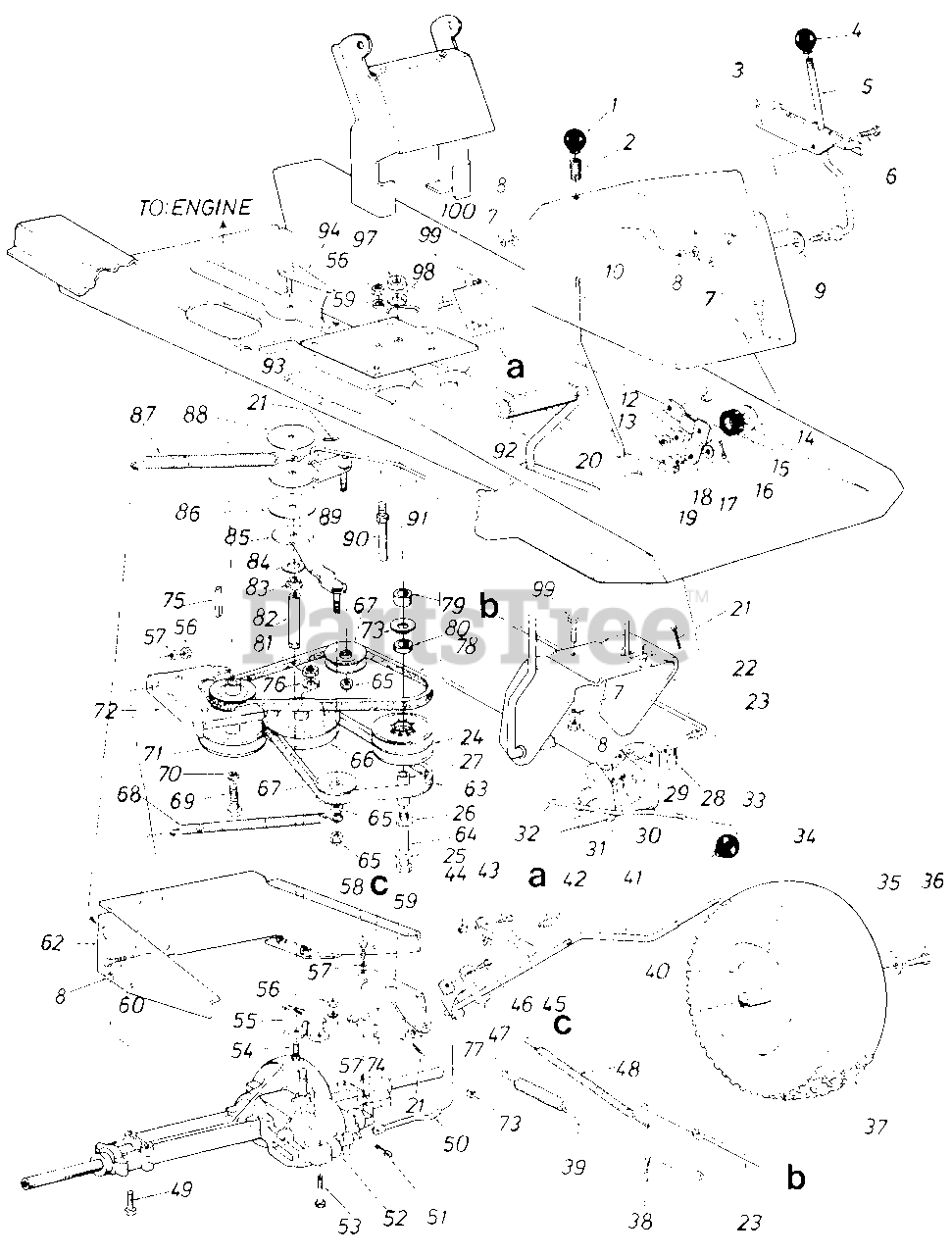

Parts For Riding Mower Part 2 Parts Diagram

  • Title

1

Cub Cadet 720-0187

Ball Knob 1/4-20 Thd. 1.25

$10.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 732-0437

Compression Spring

$10.99

$

In Stock, only 1 left!

0

3

Cub Cadet 16389

Speed Index Bracket

Variations

Cub Cadet 16389-0498

BRACKET-SP INDEX - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 16389-0637

BRACKET-SP INDEX (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 16389-0638

BRACKET-SP INDEX - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

4

Cub Cadet 720-0165

Ball Knob
(Superseded to 920-0232)

$10.99

$

In Stock, only 1 left!

0

5

Cub Cadet 747-0652

Speed Control Lever

$

$

Not available

6

Cub Cadet 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

7

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 736-0253

Bell-Wash. .345" I.D. x .88"

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 747-0450

Brake Locking Rod

$

$

Not available

Cub Cadet 731-0493

Cap

$

$

Not available

12

Cub Cadet 736-0242

Bell-Wash. .345" I.D. x .08"

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

14

Cub Cadet 736-0154

Fl-Wash. .50" I.D. x 1.5" O.D.

$

$

Not available

15

Cub Cadet 735-0129

Rubber Washer

$

$

Currently unavailable

16

Cub Cadet 714-0145

Intern. Cotter Pin 1/2" Dia.

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet 736-0275

Fl-Wash. .34" I.D. x .68" O.D.

$6.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 16396

Speed Control Lever Brkt. Ass'y.

$

$

Not available

19

Cub Cadet 711-0677

Ferrule-Engagement
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

20

Cub Cadet 15562

Clutch/Brake Pedal Ass'y.

$

$

Not available

21

Cub Cadet 714-0507

Cotter Pin 3/32" Dia. x .75"*

$4.49

$

In Stock, only 2 left!

0

22

Cub Cadet 15562

Clutch/Brake Pedal Ass'y.

$

$

Not available

23

Cub Cadet 747-0431

Brake Rod

$

$

Not available

24

Cub Cadet 717-0884

Variable SPeed Pulley Ass'y.

$219.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 736-0247

Washer .40" I.D. x 1.25" O.D.

$9.49

$

In Stock, Qty 16

0

26

Cub Cadet 741-0405

Thrust Brg. 1.25" O.D. x .56" I .D.
(Superseded to 941-0405)

$

$

Not available

27

Cub Cadet 750-0705

Spacer Sleeve 2.71"

$

$

Not available

28

Cub Cadet 714-0115

Cotter Pin 1/8" Dia. x 1.25"

$3.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 736-0275

Fl-Wash. .34" I.D. x .60" O.D.

$6.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 714-0104

Intern. Cot-Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

31

Cub Cadet 736-0275

Fl-Wash. .34" I.D. x .60" O.D.

$6.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 747-0451

Speed Control Rod

$

$

Not available

33

Cub Cadet 720-0165

Ball Knob
(Superseded to 920-0232)

$10.99

$

In Stock, only 1 left!

0

34

Cub Cadet 734-0594

Rear Wheel Rim Only
(Superseded to 634-0138)

Variations

Cub Cadet 734-0594-0499

Rim Assembly, 8.0 X 5.38 with Valve - CUB BEIGE (0499)

$67.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-0594-0629

USE 634-0138-0662 RIM ASSEMBL - SILVER FLAKE (0629)

$67.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-0594-0662

USE 634-0138-0662 RIM ASSEMBL - OYSTER GRAY (0662)

$67.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-0594-0674

RIM ASSEMBLY - YARDMAN YELLOW (0674)

$

$

Not available

$141.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 736-0242

Bell-Wash. .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 710-0627

Hex L-Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 734-0591

Rear Wheel Ass'y.-Comp.
(Superseded to 634-0139)

Variations

Cub Cadet 734-0591-0911

Wheel Assembly, Gray - Carlisle Gray (0911)

$319.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-0591-0912

Wheel Assembly, Gray - Dico Gray (0912)

$319.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-0591-0932

Wheel Assembly, Gray - Dico Beige (0932)

$319.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-0591-0931

USE 634-0139-0931 WHEEL ASM-C - Carlisle Beige (0931)

$319.99

$

Usually ships in 3-6 days

0

$259.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-0275

Tire Only

Variations

Cub Cadet 734-0275-0901

TIRE-16X6.5 - Carlisle (0901)

$

$

Not available

Cub Cadet 734-0275-0905

USE 734-0275-0901 TIRE-16X6.5 - Duro (0905)

$

$

Not available

Cub Cadet 734-0275-0902

TIRE-16X6.5 - Dico (0902)

$

$

Not available

$114.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 714-0470

Cotter Pin 1/8" Dia. x 1.25"

$4.49

$

In Stock, Qty 20+

0

39

Cub Cadet 732-0389

Extension Spring 17.0" Lg.

$

$

Not available

40

Cub Cadet 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet 16475

Shift Lever Ass'y.

Variations

Cub Cadet 16475-0637

SHIFT LEVER ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

$

$

42

Cub Cadet 732-0499

Compression Spring 1.50" Lg.

$9.49

$

In Stock, only 1 left!

0

43

Cub Cadet 710-0789

C Sink AB S-Tap Scr. #8 x .50" Lg.

$

$

Currently unavailable

44

Cub Cadet 726-0206

Push-in Nut #10

$

$

Currently unavailable

45

Cub Cadet 732-0420

Spring Switch

$

$

Not available

46

Cub Cadet 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

47

Cub Cadet 16476

Shift Lever Adjusting Link

$

$

Not available

48

Cub Cadet 732-0487

Ext. Spring 81/4" Lg.

$

$

Not available

49

Cub Cadet 710-0378

3/16-18 x 2.50 Hex Bolt

$4.99

$

In Stock, only 4 left!

0

50

Cub Cadet 747-0668

Shift Rod

$

$

Not available

51

Cub Cadet 714-0149

Intern. Cotter Pin
(Superseded to 914-0149B)

$

$

Not available

52

Cub Cadet 717-0775V

Transaxle

Note: (See Breakdown)

$

$

Currently unavailable

53

Cub Cadet 710-0136

Hex Bolt 1/4-20 x 1.75" Lg.

$3.99

$

In Stock, only 2 left!

0

54

Cub Cadet 710-0180

Hex Bolt 3/8-24 x .75" Lg.

$6.99

$

In Stock, only 3 left!

0

55

Cub Cadet 15564

Torque Rod Bracket

$

$

Not available

56

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

58

Cub Cadet 710-0965

Self-Tap Mach. Scr. Type "C" 1/4-20 x 1.37" Lg.

$

$

Not available

59

Cub Cadet 16478

Shift Lever Support Brkt.

$

$

Currently unavailable

60

Cub Cadet 710-0597

Hex Bolt 1/4-20 x 1.00" Lg.

$3.99

$

In Stock, Qty 14

0

62

Cub Cadet 15553

Transaxle Support Ass'y.

$

$

Not available

63

Cub Cadet 754-0240

V-Belt
(Superseded to 954-0240)

$37.99

$

In Stock, only 1 left!

0

64

Cub Cadet 710-0693

Hex Bolt 3/8-16 x 4.5" Lg.

$14.99

$

In Stock, only 2 left!

0

65

Cub Cadet 712-0116

Hex Ins. L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

66

Cub Cadet 756-0390

5/8 V-Pulley .500" I.D. x 6"

$

$

Not available

67

Cub Cadet 756-0116

V-Belt Idler .38" I.D. x 3.06"
(Superseded to 756-04209)

$22.99

$

In Stock, Qty 20+

0

68

Cub Cadet 732-0308

Ext. Spring .50" O.D. x 6.37"
(Superseded to 732-0308A)

$11.99

$

In Stock, only 2 left!

0

69

Cub Cadet 710-0314

Hex Bolt 7/16-20 x 1.00" Lg.

$4.49

$

In Stock, only 3 left!

0

70

Cub Cadet 736-0171

L-Wash. 7/16" I.D.

$4.49

$

In Stock, Qty 5

0

71

Cub Cadet 756-0509

Engine Pulley

$

$

Not available

72

Cub Cadet 15623

Upper Eng. Belt Guard

$

$

Not available

73

Cub Cadet 712-0219

Bell-Wash. 1.12 O.D. x .40

Note: 0

$

$

Not available

74

Cub Cadet 750-0686

Spacer .256" I.D. x .50" O.D.

$

$

Not available

75

Cub Cadet 714-0114

Sq.-Key 1/4" x 2.00" Lg.
(Superseded to 914-0114)

$4.49

$

In Stock, only 1 left!

0

76

Cub Cadet 736-0921

L-Wash. 1/2" I.D.

$4.49

$

In Stock, Qty 5

0

77

Cub Cadet 736-0226

Fl-Wash. .469" I.D. x .88" O.D.
(Superseded to 936-0226)

$3.99

$

In Stock, only 1 left!

0

78

Cub Cadet 754-0241

V-Belt
(Superseded to 954-05040)

$45.99

$

In Stock, Qty 15

0

79

Cub Cadet 750-0706

Spacer 1.00" x .380" O.D.
(Superseded to 950-0706)

$

$

Not available

80

Cub Cadet 736-0405

Thrust Bearing 1.25 O.D. x .56 I.D. x .06

$

$

Not available

81

Cub Cadet 712-0922

Hex Nut 1/2-20 Thd.
(Superseded to 712-3029)

$6.99

$

In Stock, Qty 6

0

82

Cub Cadet 711-0676

Torque Rod

$

$

Not available

83

Cub Cadet 748-0294

Flange Bearing .378

$

$

Not available

84

Cub Cadet 736-0187

Fl-Wash. .640" I.D. x 1.24"

$4.49

$

In Stock, Qty 20+

0

85

Cub Cadet 15569

Idler Bracket Ass'y.
(Superseded to 15569B)

$

$

Not available

86

Cub Cadet 736-0283

Thrust Wash. .635" I.D.

$

$

Not available

87

Cub Cadet 732-0436

Extension Spring 7.58" Lg.
(Superseded to 932-0556)

$21.99

$

Usually ships in 3-6 days

0

88

Cub Cadet 736-0284

Thrust Wash. .385" I.D.

$

$

Not available

89

Cub Cadet 15585

Idler Bracket Ass'y. For Clutch

$

$

Not available

90

Cub Cadet 711-0747

Belt Guard Pin 1/4" Dia.

$10.99

$

Usually ships in 3-6 days

0

91

Cub Cadet 747-0422

Clutch Rod

$

$

Not available

92

Cub Cadet 735-0196

Foot Pad
(Superseded to 735-0239A)

$12.99

$

In Stock, only 1 left!

0

93

Cub Cadet 17100

Mtg. Brkt. Variable Pulley

$

$

Not available

94

Cub Cadet 15642

Weld Bolt Brkt. Ass'y.

Variations

Cub Cadet 15642-0637

BRACKET AS - POWDER BLACK (0637)

$

$

Not available

$

$

97

Cub Cadet 712-0798

Hex Nut 3/8-16

$4.49

$

In Stock, only 2 left!

0

98

Cub Cadet 736-0217

L-Wash. 3/8 Heavy Duty

$4.49

$

In Stock, Qty 9

0

99

Cub Cadet 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

100

Cub Cadet 16482

Shift Lever Spring Brkt.

$

$

Not available
