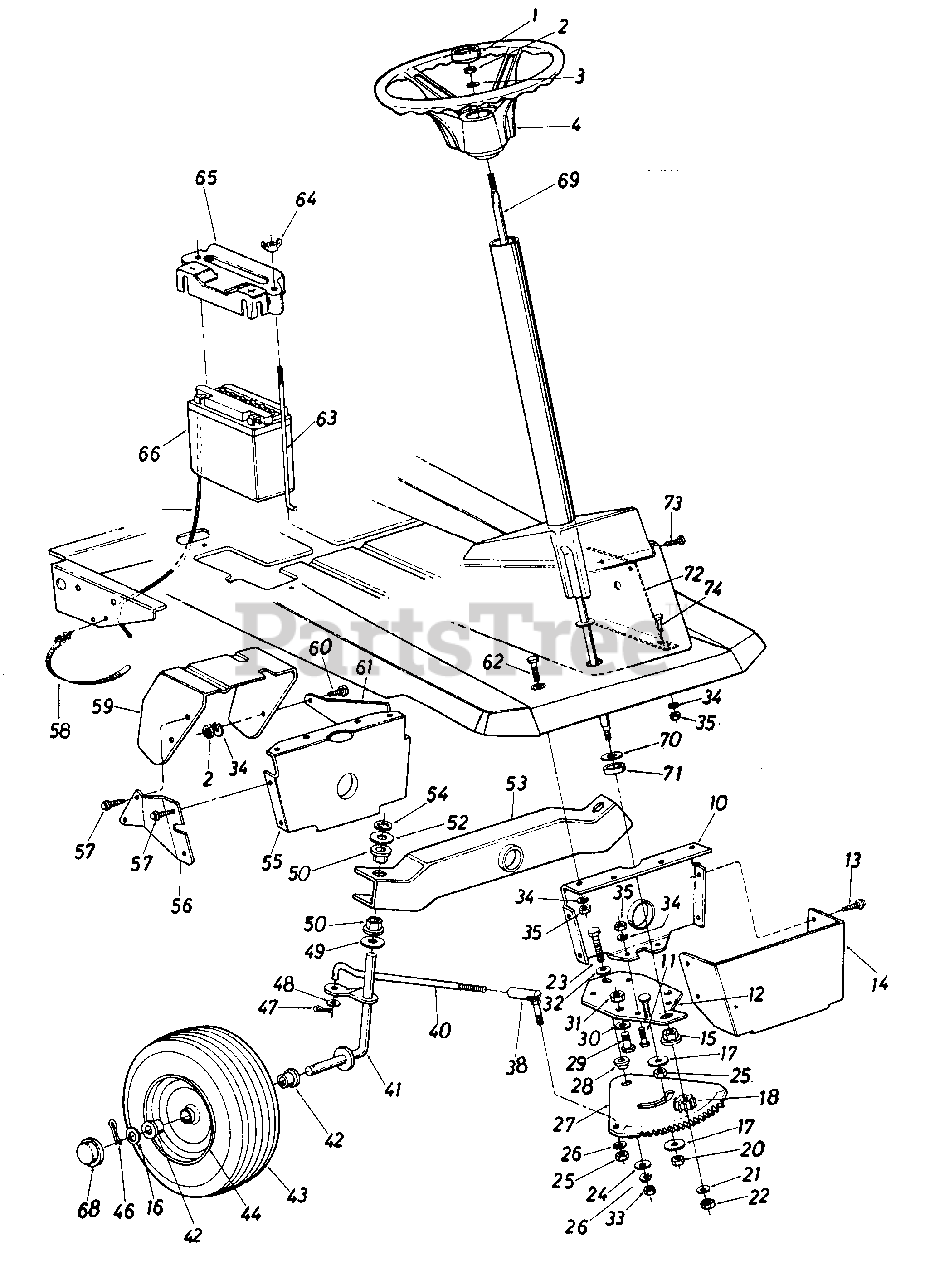

1106 (137-519-100) - Cub Cadet Rear-Engine Riding Mower (1987) Parts For Riding Mower Part 3 Parts Diagram

Rear-Engine Riding Mower

Parts For Riding Mower Part 3 Parts Diagram

  • Title
1

Cub Cadet 731-0220

Steering Wheel Cap
(Superseded to 931-0220)

$9.49

$

In Stock, only 2 left!

0

2

Cub Cadet 712-0237

Hex Nut 5/16-24 Thd.

$4.99

$

In Stock, only 4 left!

0

3

Cub Cadet 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 731-0805

Steering Wheel Ass'y.
(Superseded to 931-0806A)

$

$

Not available

10

Cub Cadet 15613

Pivot Bar Bracket

$

$

Not available

11

Cub Cadet 710-0118

Hex Bolt 5/16-18 x .75" Lg.*
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 17130

Steering Gear Support Brkt.

$

$

Not available

13

Cub Cadet 710-0776

Hex Wash. Hd. AB-Tap Scr. 1/4 x.62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 15608

Steering Gear Cover

Variations

Cub Cadet 15608-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 15608-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 15608-0637

COVER-STEE - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 15608-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 15608-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

Cub Cadet 15608-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

$

$

15

Cub Cadet 741-0225

Hex Flange Bearing
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 19

0

16

UNKNOWN

$

$

Not available

17

Cub Cadet 736-0320

Fl-Washer 3/8" I.D. x 1.37" O.D.

$6.99

$

In Stock, Qty 7

0

18

Cub Cadet 748-0290

Steering Pinion Gear
(Superseded to 948-0290)

$

$

Not available

Cub Cadet 736-0320

Fl-Wash. .385" I.D. x 1.38"

$6.99

$

In Stock, Qty 7

0

20

Cub Cadet 712-0116

Hex L-Nut 3/8-24

$4.99

$

In Stock, Qty 6

0

21

Cub Cadet 736-0275

Fl-Wash. .34" I.D. x .68" O.D.

$6.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 712-0123

Hex Nut 5/16-24 Thd.*
(Superseded to 912-3057)

$6.99

$

In Stock, only 2 left!

0

23

Cub Cadet 710-0191

Hex Bolt 3/8-24 x 1.25" Lg. (Grade 5)

$4.99

$

In Stock, Qty 9

0

24

Cub Cadet 736-0320

Fl-Wash. .385" I.D. x 1.38"

$6.99

$

In Stock, Qty 7

0

25

Cub Cadet 712-0241

Hex Nut 3/8-24 Thd.*

$4.49

$

In Stock, Qty 13

0

26

Cub Cadet 736-0169

L-Wash. 3/8" I.D.*

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 717-0472

Steering Gear Segment
(Superseded to 917-0472A)

$

$

Not available

28

Cub Cadet 738-0541

Shoulder Spacer .622" Dia. x .218

$

$

Not available

29

Cub Cadet 710-0689

Hex Bolt (Nylon) 1/2-13 x .75"

$6.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 736-0160

Fl-Wash. .530" I.D. x .930"

$4.49

$

In Stock, only 2 left!

0

31

Cub Cadet 712-0206

Hex Nut 1/2-13 Thd.*

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 736-0105

Bell-Wash. .385" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 712-0241

Hex Nut 3/8-24 Thd.*

$4.49

$

In Stock, Qty 13

0

34

Cub Cadet 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

35

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

38

Cub Cadet 723-0156

Ball Joint Ass'y. 3/8-24 Thd.
(Superseded to 923-0156)

$16.99

$

In Stock, Qty 20+

0

40

Cub Cadet 747-0417

Steering Tie Rod

$

$

Not available

41

Cub Cadet 17160

Front Axle Ass'y.-R.H.
(Superseded to 983-0012)

$141.99

$

Usually ships in 3-6 days

0

Cub Cadet 17161

Front Axle Ass'y.-L.H.
(Superseded to 983-0011)

Note: (Not Shown)

$

$

Not available

42

Cub Cadet 741-0349

Flange Bearing .632" I.D.
(Superseded to 741-0696)

$30.99

$

Usually ships in 3-6 days

0

43

Front Wheel Ass'y. Comp.

$

$

Not available

Cub Cadet 734-1453

Wheel Ass'y. Comp.
(Superseded to 634-0147)

$

$

Not available

44

Front Wheel Rim Only

$

$

Not available

$

$

Not available

46

Cub Cadet 714-0470

Cotter Pin 1/8" Dia. x 1.25"

$4.49

$

In Stock, Qty 20+

0

47

Cub Cadet 714-0115

Cotter Pin 1/8" Dia. x 1.00"

$3.99

$

In Stock, only 2 left!

0

48

Cub Cadet 736-0300

Fl-Wash. .385" I.D. x .87"

$4.49

$

In Stock, Qty 20+

0

49

Cub Cadet 736-0156

Fl-Wash. .635" I.D. x 1.12"

$4.49

$

In Stock, Qty 12

0

50

Cub Cadet 741-0225

Hex Flange Bearing
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 19

0

52

Cub Cadet 736-0156

Fl-Wash. .635" I.D. x 1.12"

$4.49

$

In Stock, Qty 12

0

53

Cub Cadet 15610

Pivot Bar Ass'y.
(Superseded to 15610C-0637)

$224.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 726-0159

Speed Nut 518" I.D.
(Superseded to 926-0159B)

$

$

Not available

55

Cub Cadet 15613

Pivot Bar Bracket

$

$

Not available

56

Cub Cadet 15694

Bracket Reinforcement- R.H.

$

$

Not available

57

Cub Cadet 710-0776

Hex Wash. Hd. AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

58

Cub Cadet 726-0154

Cable Tiet
(Superseded to 926-0154)

$6.49

$

Usually ships in 3-6 days

0

59

Cub Cadet 15562

Clutch-Brake Pedal Ass'y.

$

$

Not available

60

Cub Cadet 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

61

Cub Cadet 15699

Bracket Reinforcement-L.H.

$

$

Not available

62

Cub Cadet 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

63

Cub Cadet 711-0222

Battery Hold Down Rodt
(Superseded to 911-0222A)

$11.99

$

In Stock, only 1 left!

0

64

Cub Cadet 712-0113

Wing Nut Solid 1/4-20 Thd.t
(Superseded to 912-0113)

$6.99

$

In Stock, only 2 left!

0

65

Cub Cadet 731-0708

Battery Hold Down Covert

$

$

Not available

66

Cub Cadet 725-0514

12V Batteryt
(Superseded to 753-0607)

$170.99

$

Usually ships in 3-6 days

0

68

Cub Cadet 731-0484

Hub Cap
(Superseded to 931-0484A)

$6.49

$

In Stock, Qty 20+

0

69

Cub Cadet 16513

Steering Shaft Ass'y.

$

$

Not available

70

Cub Cadet 736-0187

Fl-Wash. .62" I.D. x 1.25" O.D.

$4.49

$

In Stock, Qty 20+

0

71

Cub Cadet 750-0532

Spacer (Plastic)
(Superseded to 950-0532)

$

$

Not available

72

Cub Cadet 16069

Reinf. Brkt. Ass'y.

Variations

Cub Cadet 16069-0637

BRACKET-REINF - POWDER BLACK (0637)

$

$

Not available

$

$

73

Cub Cadet 710-0323

Truss Mach. Scr. 5/16-18

$4.99

$

In Stock, only 2 left!

0

74

Cub Cadet 710-0116

Hex Bolt 5/16-18 x 2.00" Lg.
(Superseded to 710-3103)

$4.49

$

In Stock, Qty 20+

0
