1106 (137-519-100) - Cub Cadet Rear-Engine Riding Mower (1987) 38" Deck Parts Diagram

Rear-Engine Riding Mower

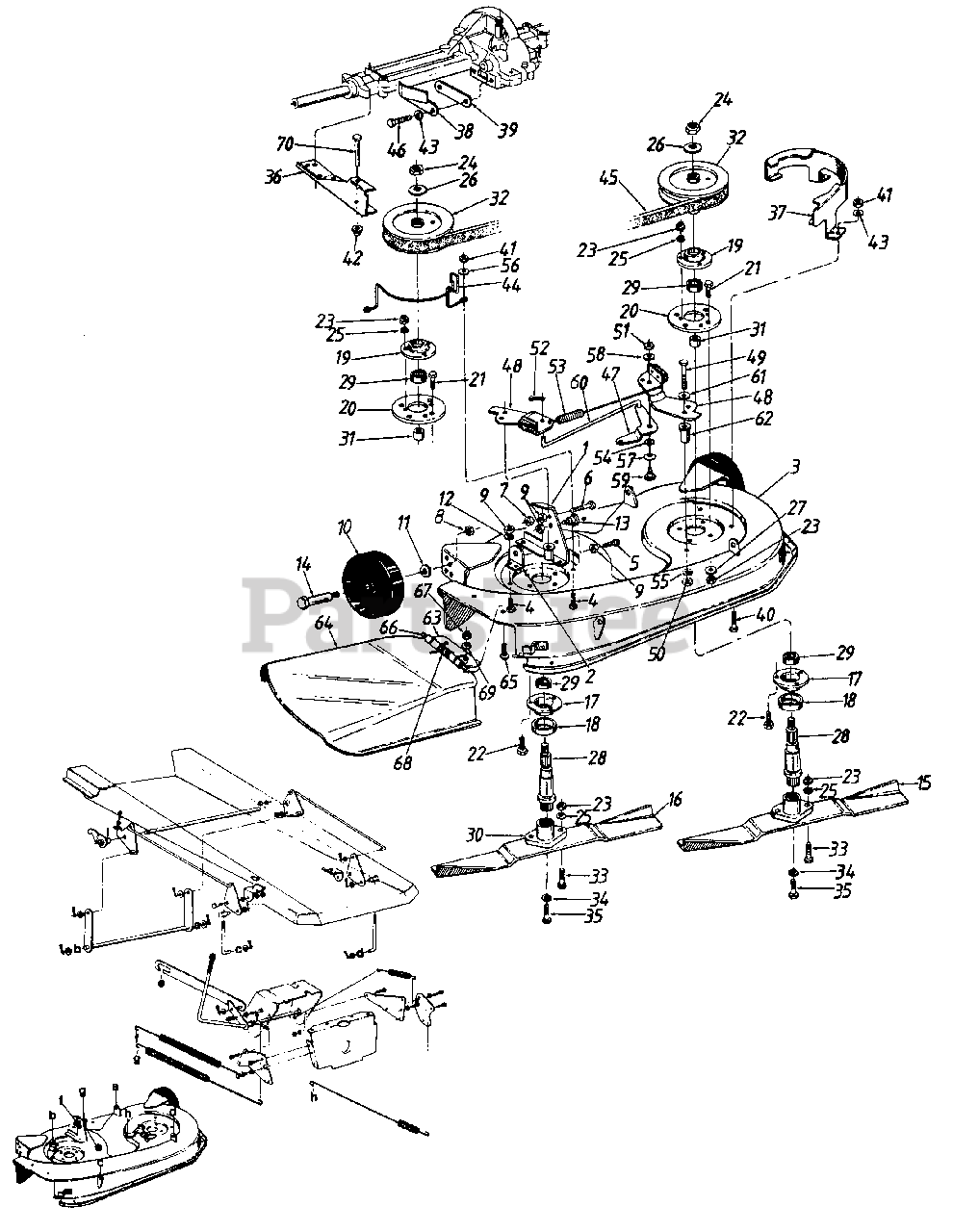

38" Deck Parts Diagram

  • Title

1

Cub Cadet 17094

Deck Disengagement Brkt.

$

$

Not available

2

Cub Cadet 17096

Rear Deck Brkt.-R.H.

$

$

Currently unavailable

3

Cub Cadet 17122

38" Deck Ass'y.

$

$

Currently unavailable

Cub Cadet 17158

38" Deck Ass'y. Comp.

$

$

Currently unavailable

4

Cub Cadet 710-0285

Hex Bolt 1/4-20 x .62" Lg.

$

$

Currently unavailable

5

Cub Cadet 710-0642

Hex TT-Tap Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0778

Hex Wash. Hd. Scr. 1/4-20 x 1.5" Lg.

$4.49

$

In Stock, only 1 left!

0

7

Cub Cadet 712-0107

Hex L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

8

Cub Cadet 712-0181

Hex L-Nut 3/8-16 Thd.

$4.49

$

In Stock, only 3 left!

0

9

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

10

Cub Cadet 734-0973

Deck Wheel

$12.99

$

In Stock, Qty 20+

0

11

Cub Cadet 736-0105

Bell-Wash .380 I.D. x .88

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 736-0329

L-Wash 1/4 1. D .
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

13

Cub Cadet 738-0183

Shld Bolt .500 Dia. x .215" Lg.
(Superseded to 938-0183)

$

$

Not available

14

Cub Cadet 738-0373

Shld. Bolt .498 Dia. x 1.53" Lg.
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

15

Cub Cadet 742-0472

L.H. High-Lift Blade
(Superseded to 942-0473A)

$33.99

$

In Stock, Qty 5

0

16

Cub Cadet 742-0473

R.H. High-Lift Blade
(Superseded to 942-0473A)

$33.99

$

In Stock, Qty 5

0

17

Cub Cadet 08253

Bearing Housing
(Superseded to 08253B)

$19.99

$

In Stock, only 1 left!

0

18

Cub Cadet 13703

Bearing Shield

$

$

Not available

19

Cub Cadet 15296

Open Brg. Housing
(Superseded to 15296A)

$8.99

$

In Stock, only 2 left!

0

20

Cub Cadet 16603

Spindle Mounting Plate
(Superseded to 16603A)

$27.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 18

0

22

Cub Cadet 710-0888

Hex Bolt 5/16-24 x 1.0" Lg. (Special)

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

24

Cub Cadet 712-0318

Hex Jam Nut 5/8-18 Thd.

$3.49

$

In Stock, Qty 12

0

25

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

26

Cub Cadet 736-0158

L-Wash. 5/8" I.D.

$4.49

$

In Stock, Qty 11

0

27

Cub Cadet 736-0242

Bell-Wash. .345 I.D. x .88

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 738-0707

Blade Spindle
(Superseded to 938-0707A)

$45.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 741-0919

Ball Bearing
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

30

Cub Cadet 748-0300

Blade Adapter

$13.99

$

In Stock, only 4 left!

0

31

Cub Cadet 750-0456

Spacer

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 756-0486

5" Dia. Pulley

$54.99

$

In Stock, only 3 left!

0

33

Cub Cadet 710-0888

Hex Bolt 5/16-24 x 1.0" Lg. (Special)

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 736-0217

L-Wash. 3/8" I.D. H.D.

$4.49

$

In Stock, Qty 8

0

35

Cub Cadet 710-0152

Hex Bolt 3/8-24 x 1.0" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 15625

Lower Outside Belt Guard

$

$

Not available

37

Cub Cadet 16608

Belt Guard Deck-R.H.

$

$

Not available

38

Cub Cadet 17117

Lower Inside Belt Guard

$

$

Currently unavailable

39

Cub Cadet 17118

Belt Guard Spacer

$

$

Currently unavailable

40

Cub Cadet 710-0258

Hex Bolt 1/4-20 X .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

41

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

42

Cub Cadet 726-0106

Speed Nut 1/4" Rod

$3.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

44

Cub Cadet 747-0691

Deck Belt Guard

$

$

Not available

45

Cub Cadet 754-0344

V-Belt

$

$

Not available

46

Cub Cadet 710-0262

Hex Bolt 1/4-20 x .75" Lg.

$3.99

$

In Stock, Qty 11

0

47

Cub Cadet 17091

Deck Brake Bracket

$

$

Currently unavailable

48

Cub Cadet 17116

Deck Brake Brkt. Ass'y.
(Superseded to 97116)

$52.99

$

In Stock, only 1 left!

0

49

Cub Cadet 710-0772

Hex Bolt 5/16-24 x 2" Lg.

$4.49

$

Usually ships in 3-6 days

0

50

Cub Cadet 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

51

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

52

Cub Cadet 714-0127

Cotter Pin 1/16 Dia.

$

$

Not available

53

Cub Cadet 732-0560

Extension Spring

$

$

Not available

54

Cub Cadet 736-0101

Fl-Wash. .406 I.D. x 1.00
(Superseded to 936-0101)

$4.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

56

Cub Cadet 736-0270

Bell-Wash. .265 I.D. x .75

$3.99

$

In Stock, Qty 20+

0

57

Cub Cadet 736-0286

Washer-Bowed
(Superseded to 936-0286)

$6.99

$

In Stock, only 2 left!

0

58

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

59

Cub Cadet 738-0255

Shld Bolt .375 Dia. x .181" Lg.
(Superseded to 938-0255)

$5.49

$

In Stock, Qty 8

0

60

Cub Cadet 747-0681

Deck Control Rod

$

$

Currently unavailable

61

Cub Cadet 748-0234

Shld. Spacer.27" Lg.

$4.49

$

In Stock, Qty 20+

0

62

Cub Cadet 750-0702

Spacer 1.46" Lg.

$

$

Not available

63

Cub Cadet 16521

Chute Brkt.

$

$

Not available

64

Cub Cadet 16566

Chute
(Superseded to 753-0567)

$136.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 710-0255

Truss-Mach. Scr. 1/4-20 X .75" Lg.
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

66

Cub Cadet 711-0792

Hinge Pin
(Superseded to 911-0792)

$4.99

$

In Stock, only 1 left!

0

67

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

68

Cub Cadet 732-0542

Torsion Spring 1.14" Lg.
(Superseded to 932-0542)

$

$

Not available

69

Cub Cadet 736-0329

L-Wash. 1/4" I.D
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

70

Cub Cadet 710-0586

Pin

$

$

Not available
