11052x4D - Murray Cultivator (2003) Tine & Shield Assembly Parts Diagram

Cultivator

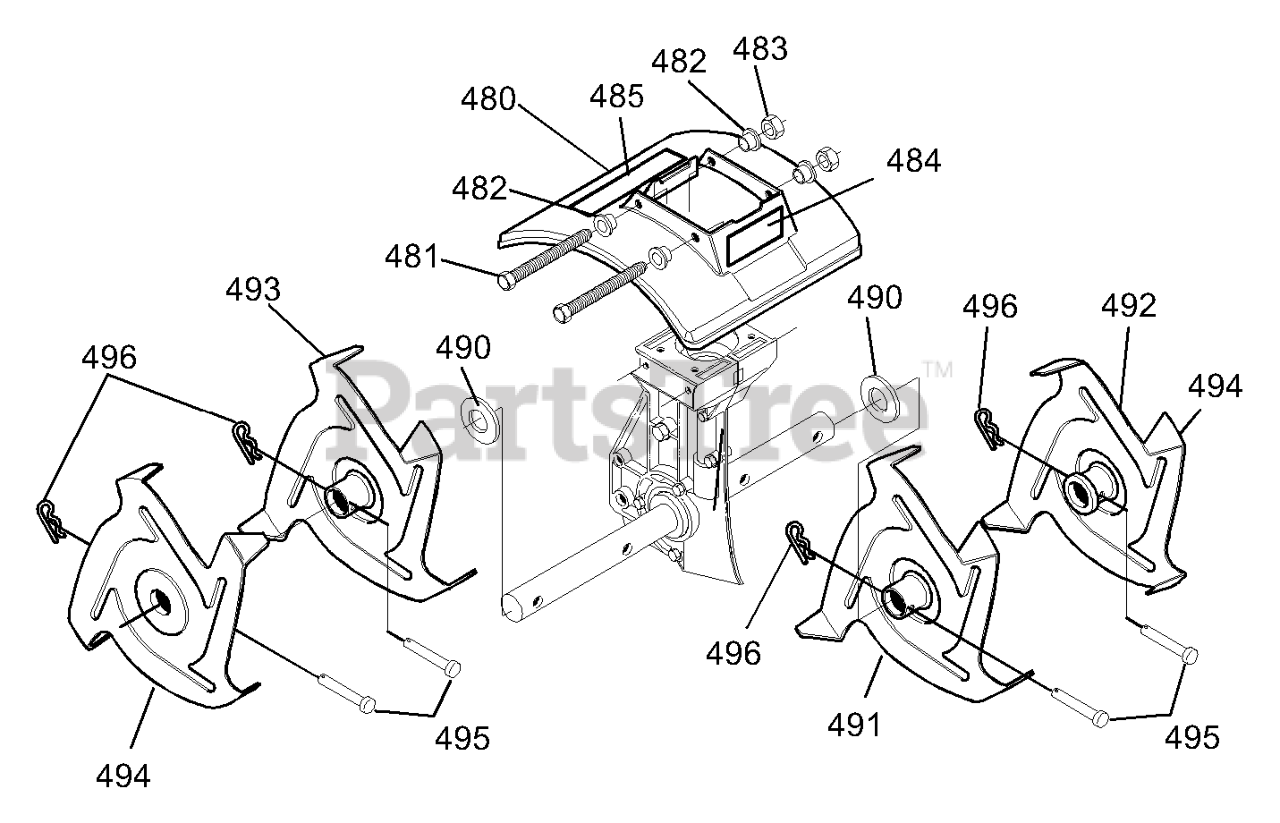

Tine & Shield Assembly Parts Diagram

  • Title

480

Murray 7401015

Shield, Tine

Note: (Includes Ref. No's. 484, 485 and four of Ref. No. 482)

$

$

Currently unavailable

481

Murray 310056

Screw, 1/4-20x5.50

$

$

Not available

482

Murray 672734MA

Spacer, Flange

$4.49

$

Usually ships in 2-12 days

0

483

Murray 782585

Nut, 1/4-20
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

484

Murray 48X894

Decal, Murray

$10.99

$

Usually ships in 2-12 days

0

485

Murray 48X4031

Decal, Caution

$10.99

$

Usually ships in 2-12 days

0

490

Murray 56158MA

Washer, Felt

$4.99

$

Usually ships in 2-12 days

0

491

Murray 56157E701

Tine Assy. Inner LH

$37.99

$

Usually ships in 2-12 days

0

492

Murray 56155E701

Tine Assy. Outer LH

$20.99

$

Usually ships in 2-12 days

0

493

Murray 56156E701

Tine Assy. Inner RH

$35.99

$

Usually ships in 2-12 days

0

494

Murray 56154E701MA

Tine Assy. Outer RH

$

$

Not available

495

Murray 56123MA

Clevis Pin

$4.49

$

Usually ships in 2-12 days

0

496

Murray 0031X4MA

Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0
