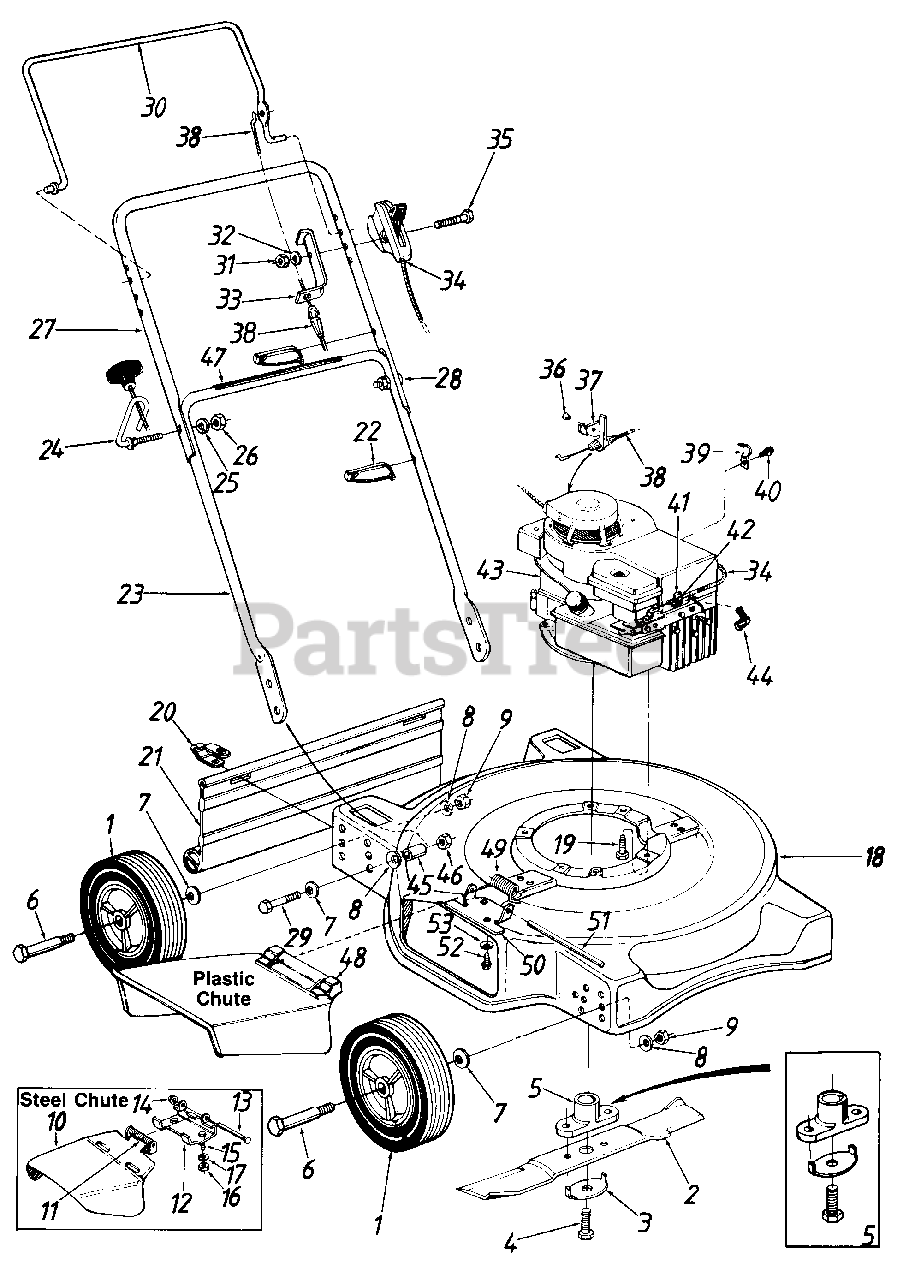

11050R-9 - MTD Walk-Behind Mower (1989) Rotary Parts Diagram

Walk-Behind Mower

Rotary Parts Diagram

  • Title

1

MTD 734-1170

Wheel Ass'y. Complete

$

$

Not available

2

MTD 742-0520

20" Blade
(Superseded to 942-0620)

$

$

Not available

3

MTD 736-0415

Blade Bell-Washer
(Superseded to 753-0525)

$

$

Not available

4

MTD 710-1044

Hex Bolt 3/8-24 x 1.5" Lg.

$3.99

$

In Stock, only 3 left!

0

5

MTD 753-0462

Blade Adapter Kit (Keyed)

$

$

Not available

6

MTD 738-0533

Shld. Bolt .498" Dia. x 1.64"

$7.99

$

Usually ships in 3-6 days

0

7

MTD 736-0105

Bell-Wash. .380" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

8

MTD 736-0331

Bell-Wash. .39" I.D. x 1.13"

$3.99

$

In Stock, Qty 20+

0

9

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

10

MTD 14944

Chute Deflector Ass'y.
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 5

0

11

MTD 732-0253

Torsion Spring

$

$

Not available

12

MTD 11130

Adapter Plate

$

$

Not available

13

MTD 711-0555

Pivot Pint

$

$

Not available

14

MTD 726-0106

Speed Nut 1/4" Rod

$3.99

$

Usually ships in 3-6 days

0

15

MTD 710-0289

Hex Bolt 1/4-20 x .5" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

16

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

17

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

18

MTD 17038

20" Deck Ass'y.

$

$

Currently unavailable

19

MTD 710-0654A

Hex Wash. Hd. Scr. 3/8-16 x 1" Lg.

$4.49

$

In Stock, only 4 left!

0

20

MTD 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

21

MTD 731-0872

Rear Flap 16.75" Lg.
(Superseded to 731-0872B)

$39.99

$

In Stock, Qty 6

0

22

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

23

MTD 749-0372B

Lower Handle (Painted)
(Superseded to 749-0928A)

$33.99

$

In Stock, only 2 left!

0

MTD 749-0373B

Lower Handle (Chrome)
(Superseded to 749-0928A)

$33.99

$

In Stock, only 2 left!

0

24

MTD 710-0842B

Rope Guide Bolt

$

$

Not available

25

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

26

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

27

MTD 749-0755

Upper Handle (Painted)
(Superseded to 749-0756A)

$

$

Not available

MTD 749-0754

Upper Handle (Chrome)

$

$

Not available

28

MTD 710-0671

Curved Carriage Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

29

MTD 710-0459

Hex Bolt 3/8-24 x 1.5" Lg.
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

30

MTD 747-0550

Control Handle

$

$

Not available

31

MTD 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

32

MTD 736-0175

Spr. Wash. .265" I.D. x .562"
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

33

MTD 16201

Cable Mounting Bracket

$

$

Not available

34

MTD 746-0646

Throttle Control Ass'y. Comp.
(Superseded to 946-0802A)

$60.99

$

In Stock, only 1 left!

0

35

MTD 710-0559

Hex Bolt 1/4-28 x 1.75" Lg.

$

$

Not available

36

MTD 728-0171

Pop Rivet

$

$

Not available

37

MTD 14924

Cable Bracket

$

$

Not available

38

MTD 746-0553

Control Cable - 36"
(Superseded to 946-0553)

$24.99

$

Usually ships in 3-6 days

0

39

MTD 12894A

Casing Clamp

$

$

Not available

40

MTD 710-0429

Hex B-TaP Scr. #10 x .38" Lg.
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

41

MTD 751-0369

Casing Clamp

$

$

Not available

42

MTD 710-0227

Hex Wash. Hd. AB-Tap Scr. #8 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

43

Engine

$

$

Not available

44

MTD 735-0639

Spark Plug Boot

$

$

Not available

45

MTD 750-0727

Spacer .381" I.D. x .56" O.D. x.75" Lg.

$

$

Not available

46

MTD 712-0355

Hex L-Nut 3/8-24 Thd.
(Superseded to 912-0355)

$5.49

$

Usually ships in 3-6 days

0

47

MTD 777-5776

Instruction Label Handle

$

$

Currently unavailable

48

MTD 731-1034

Chute Deflector Ass'y.
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 5

0

49

MTD 732-0593

Torsion Spring
(Superseded to 932-0593)

$4.99

$

In Stock, only 3 left!

0

50

MTD 17032

Adapter Plate
(Superseded to 17032A)

$10.99

$

In Stock, only 2 left!

0

51

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

52

MTD 710-0599

Hex Self-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

53

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0
