11050C - MTD Walk-Behind Mower (1986) Rotary Parts Diagram

Walk-Behind Mower

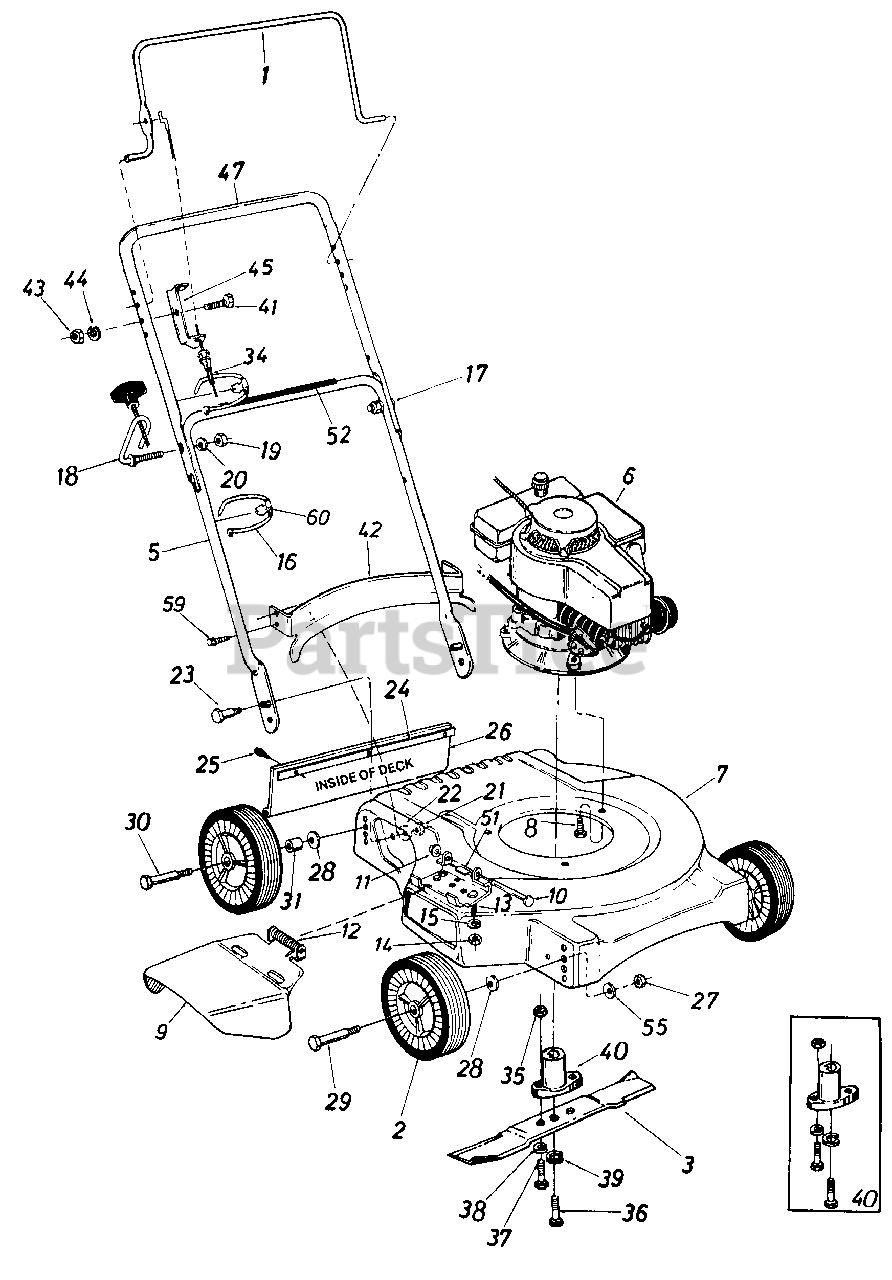

Rotary Parts Diagram

  • Title

1

MTD 747-0500

Control Handle

$

$

Not available

2

MTD 734-0840

Wheel Ass'y.

$

$

Not available

MTD 734-1176

Wheel Ass'y.

$

$

Not available

3

MTD 742-0123

20" Blade

$

$

Not available

5

MTD 749-0373

Lower Handle
(Superseded to 749-0928A)

$33.99

$

In Stock, only 2 left!

0

6

Engine

$

$

Not available

7

MTD 16202

20" Deck

Variations

MTD 16202-0498

No Longer Available DECK ASM - OLD CUB YELLOW (0498)

$

$

Not available

MTD 16202-0499

No Longer Available DECK ASM - CUB BEIGE (0499)

$

$

Not available

$

$

8

MTD 710-0654

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.00" Lg.
(Superseded to 710-0654A)

$4.49

$

In Stock, only 4 left!

0

9

MTD 14944

Chute Deflector Ass'y.
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 5

0

10

MTD 711-0555

Pivot Pin

$

$

Not available

11

MTD 726-0106

Cap Speed Nut 1/4" Rod

$3.99

$

Usually ships in 3-6 days

0

12

MTD 732-0253

Torsion Spring

$

$

Not available

13

MTD 710-0289

Hex Bolt 1/4-20 X .50" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

14

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

15

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

16

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

17

MTD 710-0671

Curved Carriage Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

18

MTD 710-0842

Rope Guide Bolt

$

$

Not available

19

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

20

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

21

MTD 712-0429

Hex Ins. L-Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

22

MTD 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

23

MTD 738-0296

Shld. Bolt .437" Dia. x .268" Lg.

$4.49

$

In Stock, Qty 20+

0

24

MTD 14836

Retainer Strip

$

$

Not available

25

MTD 710-0776

Hex Wash. Hd. Self-Tap Scr. 1/4" X .62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

26

MTD 731-0670

Rear Flap Ass'y.

$

$

Not available

27

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

28

MTD 736-0105

Bell-Wash. .400" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

29

MTD 738-0213

Shld. Bolt

Note: (Front Axle)

$7.99

$

In Stock, only 2 left!

0

30

MTD 738-0509

Shld. Bolt

Note: (Rear Axle)

$

$

Not available

31

MTD 750-0515

Spacer

$4.49

$

In Stock, only 4 left!

0

34

MTD 746-0551

Control Cable 43.0" Lg.
(Superseded to 946-0551)

$24.99

$

In Stock, only 1 left!

0

35

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

36

MTD 710-0152

Hex Bolt 3/8-24 x 1.00" Lg. (Grade 5)
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

37

MTD 710-0888

Hex Bolt 5/16-24 x 1.00" Lg. (Grade 5)

$4.49

$

In Stock, Qty 20+

0

38

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

39

MTD 736-0217

L-Wash. 3/8" I.D. Heavy Duty

$4.49

$

In Stock, Qty 8

0

40

MTD 753-0343

Blade Adapter Kit
(Superseded to 753-0343B)

$

$

Not available

41

MTD 710-0559

Hex Bolt 1/4-28 X 1.75" Lg.

$

$

Not available

42

MTD 16414

Rear Baffle

$

$

Not available

43

MTD 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

44

MTD 736-0175

L-Wash. 1/4" I.D.
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

45

MTD 16201

Cable Mounting Brkt.

$

$

Not available

47

MTD 749-0536

Upper Handle
(Superseded to 749-0538E-0637)

$

$

Not available

51

MTD 11130

Hinge Plate

$

$

Not available

52

MTD 777-5773

Instruction Label Handle

$

$

Currently unavailable

55

MTD 736-0331

Bell-Wash. .39" I.D. x 1.13" O.D.

$3.99

$

In Stock, Qty 20+

0

59

MTD 710-0351

Hex Tap Screw #10 x .50" Lg.

$4.49

$

Usually ships in 3-6 days

0

60

MTD 726-0241

Cable Anchor
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0
