1105 (135-292-100) - Cub Cadet Lawn Tractor Transmission Controls Parts Diagram

Lawn Tractor

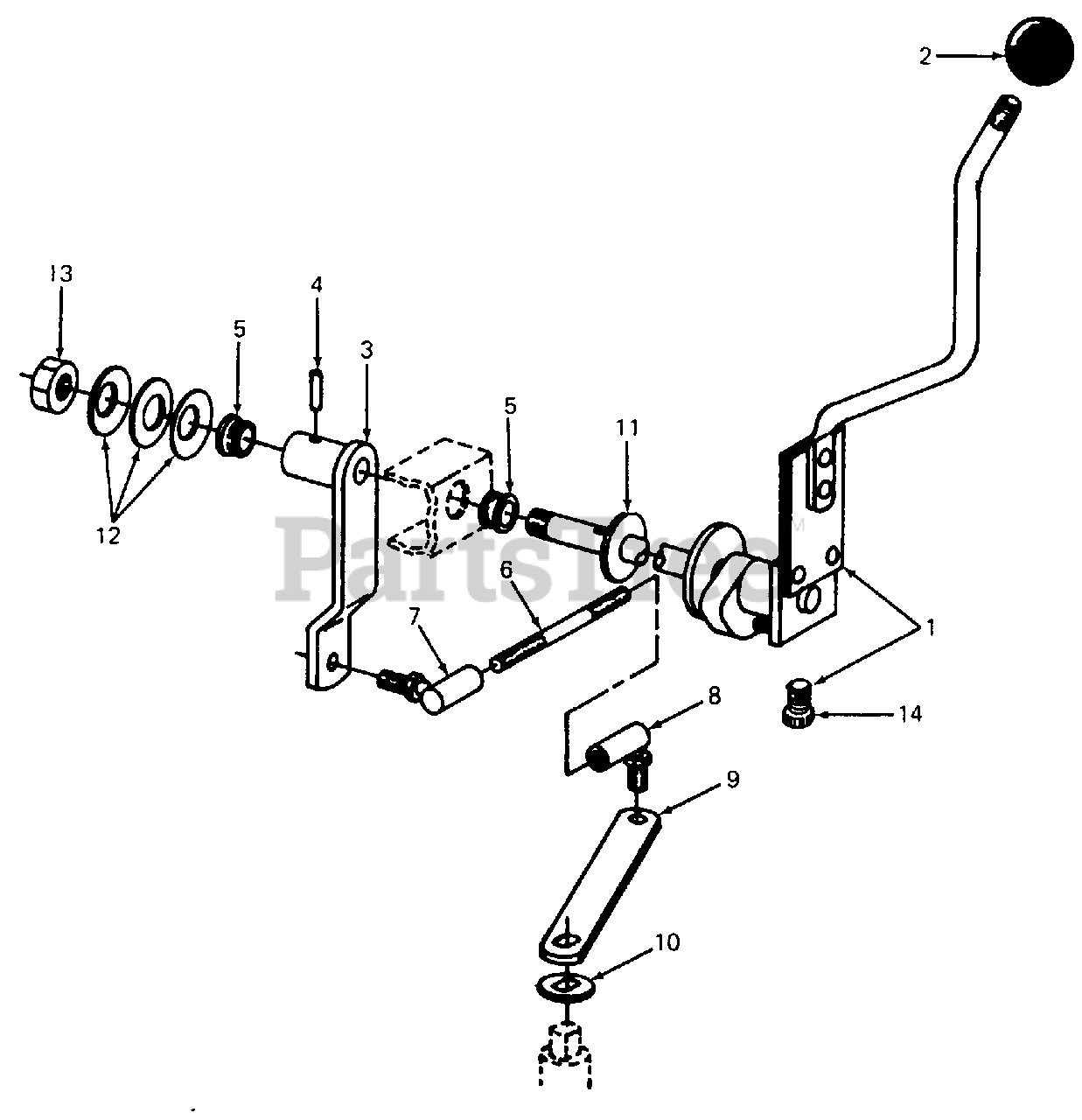

Transmission Controls Parts Diagram

  • Title

1

Cub Cadet 703-1267

Handle, Shifter Control

Note: (Includes Ref No. 14)

$

$

Currently unavailable

2

Cub Cadet 720-0175

Knob, Shifter
(Superseded to 931-0009A)

$14.99

$

In Stock, only 4 left!

0

3

Cub Cadet 703-1222

Lever, Shifter

$

$

Not available

4

Cub Cadet 715-3032

Pin, 3/16 X 1 Pln Slt-Spr

$

$

Not available

5

Cub Cadet 723-3047

Bearing, Nyliner

$

$

Not available

6

Cub Cadet 711-3184

Shaft, Shifter

$

$

Not available

7

Cub Cadet 723-3011

Joint, 5/16 C-Z Type G Ball
(Superseded to 923-3011)

$37.99

$

In Stock, only 4 left!

0

Cub Cadet 712-3057

Nut, 5/16-NF Cad P/T Lock GR 8
(Superseded to 912-3057)

$6.99

$

In Stock, only 2 left!

0

Cub Cadet 712-0305

Nut, 5/16-NF Jam GR 5
(Superseded to 912-0237)

$

$

Not available

8

Cub Cadet 723-3012

Joint, 5/16 Pln Type G Ball (LH Thd)
(Superseded to 923-3012)

$42.99

$

In Stock, only 4 left!

0

Cub Cadet 712-3043

Nut, 5/16-NF Jam LH Thd GR 5

$

$

Not available

Cub Cadet 712-0305

Nut, 5/16-NF Jam GR 5
(Superseded to 912-0237)

$

$

Not available

9

Cub Cadet 703-1107

Lever, Shifter

$

$

Not available

Cub Cadet 736-0270

Washer, .265 X .75 X .06 Belleville

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 710-0513

Bolt, 1/4-NF X 5/8 Pln GR 5
(Superseded to 710-0513A)

$4.99

$

In Stock, Qty 7

0

10

Cub Cadet 717-0234

Washer, Shifter

$

$

Not available

11

Cub Cadet 723-3013

Washer, Friction
(Superseded to 923-3013)

$

$

Not available

12

Cub Cadet 736-3022

Washer, .760 X 1.5 X .06 Belleville
(Superseded to 936-3022)

$5.49

$

In Stock, only 2 left!

0

13

Cub Cadet 712-3059

Nut, 1/2 Cad P/T Lock GR 5

$4.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-3069

Screw, 1/4 X 1/2 Hex-Soc-Hd

$4.99

$

In Stock, Qty 10

0
