1105 (0350039U) - Cub Cadet Lawn Tractor Fuel Tank & Related Parts Parts Diagram

Lawn Tractor

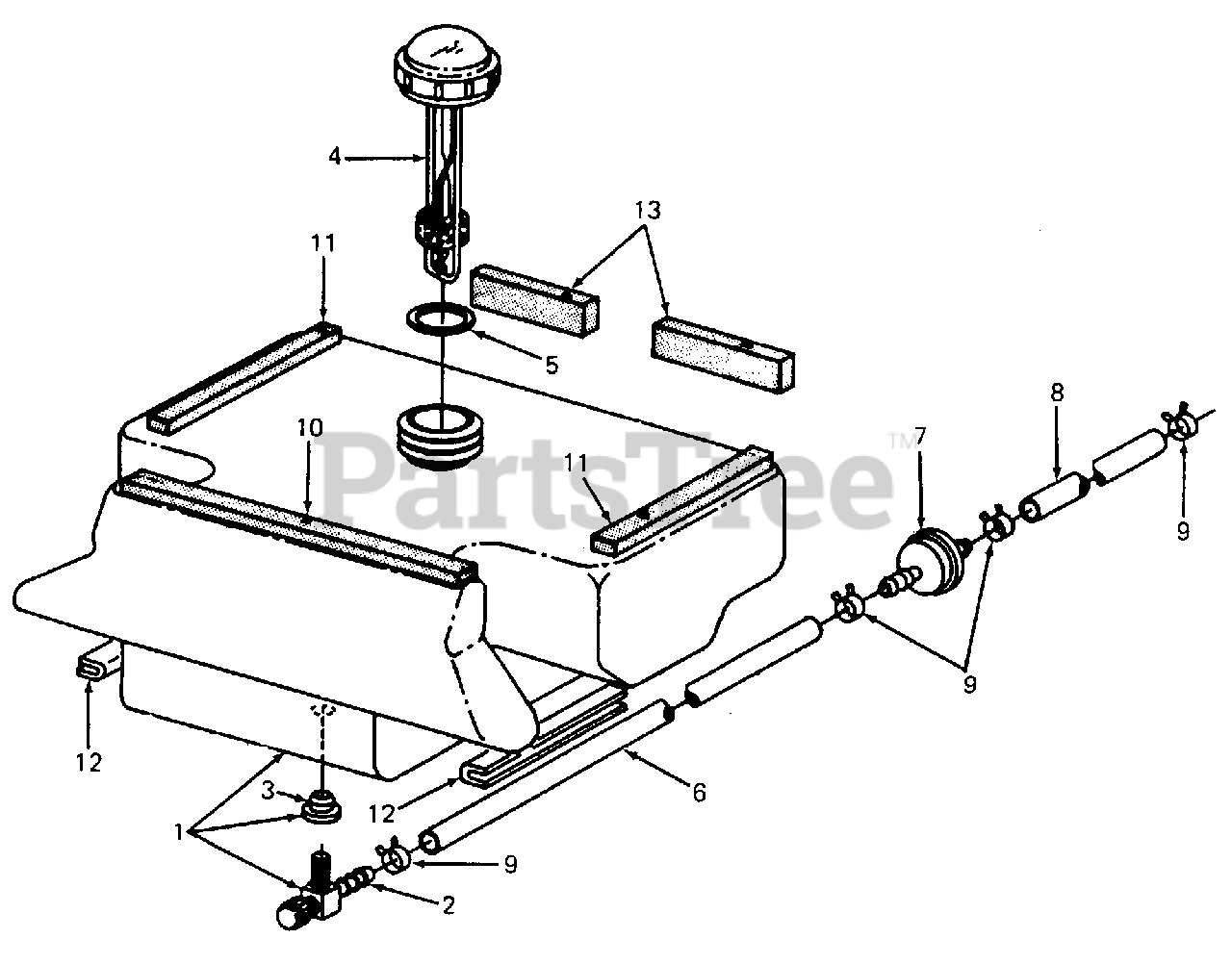

Fuel Tank & Related Parts Parts Diagram

  • Title

1

Cub Cadet 759-3195

Tank Assy, Fuel

Note: (Includes Ref No. 2 & 3)

$

$

Currently unavailable

2

Cub Cadet 751-0171

Valve w/Screen, Shut-off
(Superseded to 951-0171)

$20.99

$

In Stock, Qty 20+

0

3

Cub Cadet 751-3008

Bushing
(Superseded to 935-0149)

$2.99

$

In Stock, Qty 20+

0

4

Cub Cadet 751-3044

Cap w/Gauge, Fuel Tank

$

$

Not available

5

Cub Cadet 723-3003

Gasket, Fuel Tank Cap

$

$

Not available

6

Line, Fuel Tank To Filter, 56 in. Long

Note: (Order Bulk Fuel Line Part No. 759-3330, 10 ft. Long)

$

$

Not available

7

Cub Cadet 751-3013

Filter, Fuel
(Superseded to 951-3013)

$5.49

$

In Stock, Qty 20+

0

8

Line, Fuel Filter To Engine, 25 in. Long

Note: (Order Bulk Fuel Line Part No. 759-3330, 10 ft. Long)

$

$

Not available

9

Cub Cadet 726-0205

Clamp, 1/2 OD Tube Hose

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 703-1349

Strip, Foam Gasket Sealing 12 in. Long

$

$

Not available

11

Cub Cadet 703-1348

Strip, Foam Gasket Sealing 5 in. Long

$

$

Not available

12

Cub Cadet 703-1368

Seal, Edge, 4 in. Long

$

$

Not available

13

Cub Cadet 723-3051

Strip, Foam Gasket Sealing 3 in. Long

$

$

Not available
