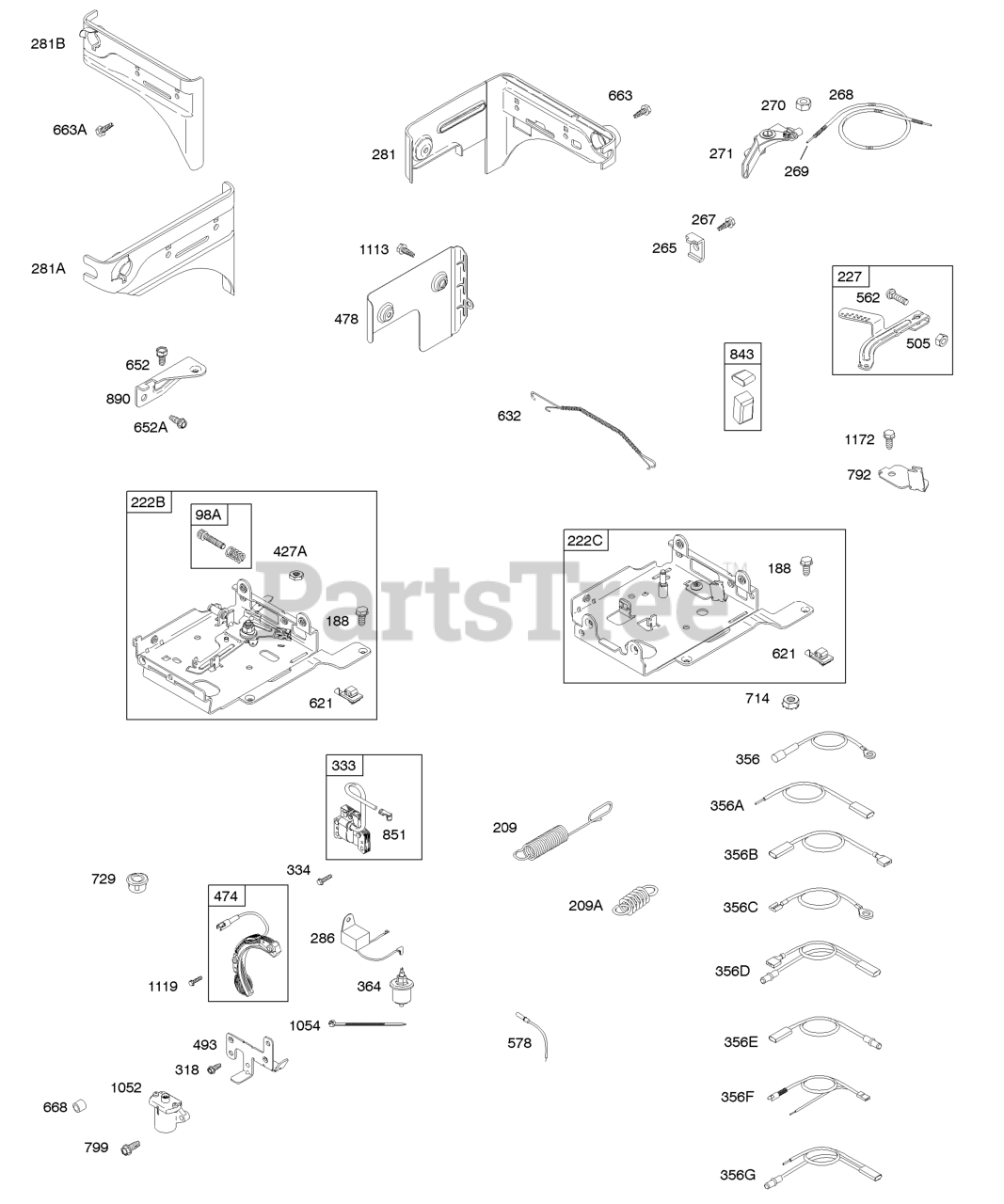

110412-0188-E1 - Briggs & Stratton Horizontal Engine Panels, Controls, Springs, Alternator, Wires Parts Diagram

Horizontal Engine

Panels, Controls, Springs, Alternator, Wires Parts Diagram

  • Title

98A

Briggs & Stratton 493280

Kit-Idle Speed

Note: (Control Bracket)

$8.99

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 690877

Screw

Note: (Control Bracket)

$3.99

$

In Stock, only 3 left!

0

209

Briggs & Stratton 692571

Spring-Governor

Note: (Silver)

$7.49

$

In Stock, only 1 left!

0

209A

Briggs & Stratton 691278

Spring-Governor

Note: (Platinum)

$7.99

$

In Stock, only 2 left!

0

222B

Briggs & Stratton 692606

Bracket-Control

Note: Used Before Code Date 98072000

$

$

Not available

227

Briggs & Stratton 692573

Lever-Governor Control
(Superseded to 794367)

$16.99

$

In Stock, Qty 6

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, only 3 left!

0

267

Briggs & Stratton 692577

Screw

Note: (Casing Clamp)

$3.99

$

Usually ships in 2-12 days

0

268

Briggs & Stratton 691025

CASING, Control Wire

Note: (72" Long)(Cut To Required Length)

$

$

Not available

269

Briggs & Stratton 691026

WIRE, Control
(Superseded to 26634)

Note: (78" Long)(Cut To Required Length)

$

$

Not available

270

Briggs & Stratton 691027

NUT

Note: (Control Wire Casing)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 691028

Lever-Control

$45.99

$

Usually ships in 2-12 days

0

281

Briggs & Stratton 793122

Panel-Control

Note: Used After Code Date 99070400

$35.99

$

Usually ships in 2-12 days

0

281A

Briggs & Stratton 693407

Panel-Control

Note: Used After Code Date 98062800 Used Before Code Date 99070500

$11.99

$

Usually ships in 2-12 days

0

286

Briggs & Stratton 698611

Module-Oil Sensor
(Superseded to 794185)

$61.99

$

Usually ships in 2-12 days

0

318

Briggs & Stratton 693609

Screw

Note: (Mounting Bracket)

$2.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 695711

Armature-Magneto
(Superseded to 796964)

$55.99

$

In Stock, Qty 10

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 693650

Wire-Stop

$8.99

$

Usually ships in 2-12 days

0

356A

Briggs & Stratton 692390

Wire-Stop

$

$

Not available

356C

Briggs & Stratton 695630

WIRE, Stop

$7.99

$

Usually ships in 2-12 days

0

356F

Briggs & Stratton 695283

Wire-Stop

$20.99

$

Usually ships in 2-12 days

0

356G

Briggs & Stratton 695814

Wire-Stop

$

$

Not available

356E

Briggs & Stratton 697397

Wire-Stop

$12.99

$

Usually ships in 2-12 days

0

356B

Briggs & Stratton 692602

Wire-Stop

$11.99

$

Usually ships in 2-12 days

0

356D

Briggs & Stratton 693651

Wire-Stop

$11.99

$

Usually ships in 2-12 days

0

364

Briggs & Stratton 695693

Terminal-Oil Plug

Note: Used Before Code Date 00080600

$13.99

$

Usually ships in 2-12 days

0

427A

Briggs & Stratton 692575

Nut

Note: (Control Bracket) Used Before Code Date 99070500

$2.99

$

Usually ships in 2-12 days

0

474

Briggs & Stratton 694457

Alternator
(Superseded to 793640)

$67.99

$

Usually ships in 2-12 days

0

478

Briggs & Stratton 693709

Panel

$

$

Not available

493

Briggs & Stratton 693599

Bracket-Mounting

Note: (Oil Sensor)

$4.49

$

Usually ships in 2-12 days

0

505

Briggs & Stratton 691251

NUT

Note: (Governor Control Lever)

$3.49

$

In Stock, Qty 9

0

562

Briggs & Stratton 691119

BOLT

Note: (Governor Control Lever)

$4.49

$

In Stock, Qty 17

0

578

Briggs & Stratton 692306

WIRE ASSEMBLY

Note: (1 Wire, 48-1/2" Long)(Snap Connect Female Pin Socket, And Bare WireEnd)

$17.99

$

Usually ships in 2-12 days

0

621

Briggs & Stratton 692310

Switch-Stop

$5.99

$

In Stock, Qty 20+

0

632

Briggs & Stratton 693408

Spring/Link-Mechanical Governor

$8.99

$

In Stock, only 3 left!

0

652

Briggs & Stratton 691108

SCREW

Note: (Support Bracket)

$3.49

$

In Stock, Qty 20+

0

652A

Briggs & Stratton 695629

SCREW

Note: (Support Bracket)

$3.49

$

Usually ships in 2-12 days

0

663

Briggs & Stratton 694593

Screw
(Superseded to 691693)

Note: (Control Panel) (3/8" Long)

$3.99

$

In Stock, Qty 8

0

663A

Briggs & Stratton 692577

Screw

Note: (Control Panel) (3/4" Long)

$3.99

$

Usually ships in 2-12 days

0

668

Briggs & Stratton 693604

Spacer

Note: (Oil Sensor)

$4.99

$

Usually ships in 2-12 days

0

714

Briggs & Stratton 693649

Nut

Note: (Wire Stop)

$2.99

$

Usually ships in 2-12 days

0

729

Briggs & Stratton 694371

Clip-Wire

$4.49

$

Usually ships in 2-12 days

0

799

Briggs & Stratton 693609

Screw

Note: (Oil Sensor)

$2.99

$

Usually ships in 2-12 days

0

843

Briggs & Stratton 694061

Sleeve-Lever

$8.49

$

In Stock, only 1 left!

0

851

Briggs & Stratton 493880S

TERMINAL, Spark Plug

$3.49

$

In Stock, Qty 20+

0

890

Briggs & Stratton 694933

Bracket-Support
(Superseded to 790203)

$5.99

$

Usually ships in 2-12 days

0

1052

Briggs & Stratton 790141

Sensor-Oil

$61.99

$

Usually ships in 2-12 days

0

1054

Briggs & Stratton 280275

Tie-Cable

$4.49

$

Usually ships in 2-12 days

0

1113

Briggs & Stratton 692577

Screw

Note: (Panel)

$3.99

$

Usually ships in 2-12 days

0

1119

Briggs & Stratton 691183

SCREW

Note: (Alternator)

$3.49

$

Usually ships in 2-12 days

0

1172

Briggs & Stratton 691676

Screw

Note: (Fixed Speed Bracket)

$3.99

$

In Stock, only 2 left!

0
