11003 - Toro 53cm Walk-Behind Mower, Canada (SN: 210000001 - 210999999) (2001) SHORT BLOCK ASSEMBLY Parts Diagram

53cm Walk-Behind Mower, Canada

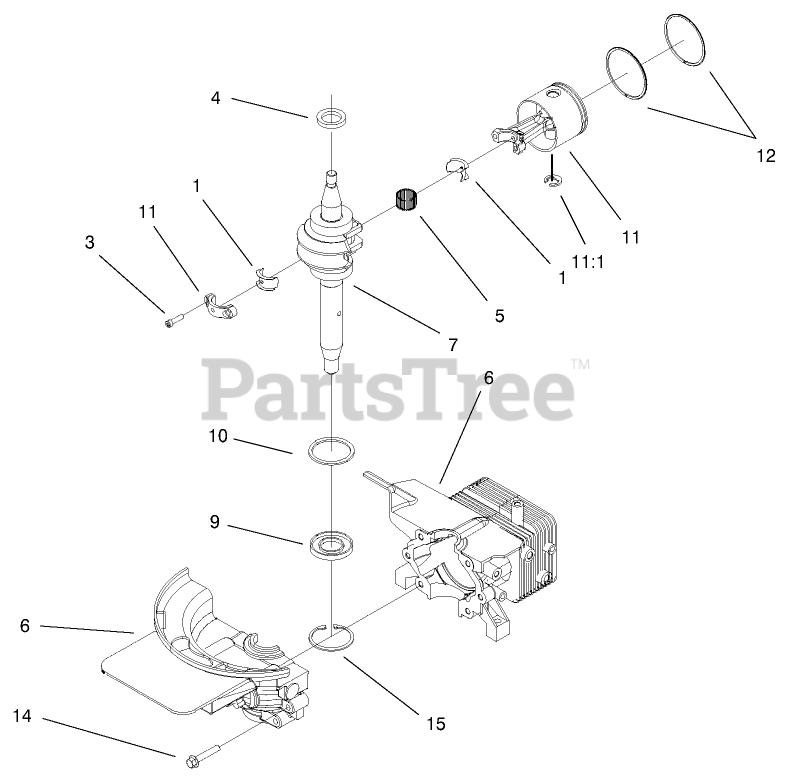

SHORT BLOCK ASSEMBLY Parts Diagram

  • Title

1

Toro 677982

LINER ASM

$46.99

$

In Stock, only 2 left!

0

2

Toro 609790

SEALER-LOCTITE 50CC

Note: Not illustrated

$62.99

$

Usually ships in 3-6 days

0

2

Toro 610372

SEALER-LOCTITE 6CC

Note: Not illustrated

$27.99

$

Usually ships in 3-6 days

0

3

Toro 611393

SCREW-HSH

$22.99

$

Usually ships in 3-6 days

0

4

Toro 611396

SEAL-OIL

$6.99

$

In Stock, only 2 left!

0

5

Toro 683911

BEARING-NEEDLE

$23.99

$

In Stock, Qty 5

0

6

Toro 95-7631

CYLINDER AND CRANKCASE ASM

$

$

Not available

6

Cylinder And Crankcase ASM

$

$

Not available

6:1

Toro 602587

PLATE-BACKUP, REED

Note: Not illustrated

$3.49

$

Usually ships in 3-6 days

0

6:2

Toro 602588

REED-CARBURETOR

Note: Not illustrated

$

$

Not available

6:3

Toro 612872

SCREW-HH

Note: Not illustrated

$2.49

$

In Stock, Qty 5

0

7

Toro 99-2920

CRANKSHAFT AND BEARING ASM

$312.99

$

Usually ships in 3-6 days

0

9

Toro 94-5764

SEAL-OIL

$12.99

$

In Stock, only 4 left!

0

10

Toro 94-5765

RING-RETAINING, EXT.

$

$

Not available

11

Toro 100-2915

Piston&rod Ay
(Superseded to 100-2916)

$

$

Not available

11:1

Toro 303712

RING-RETAINING

$3.49

$

In Stock, Qty 11

0

12

Toro 100-2917

SET-RING

$107.99

$

Usually ships in 3-6 days

0

14

Toro 94-5781

SCREW-HHF

$6.99

$

Usually ships in 3-6 days

0

15

Toro 98-7046

RING-RETAINING
(Superseded to 32151-75)

$3.49

$

In Stock, Qty 19

0

16

Toro 609790

SEALER-LOCTITE 50CC

Note: Not illustrated

$62.99

$

Usually ships in 3-6 days

0
