11003 - Toro 53cm Walk-Behind Mower, Canada (SN: 210000001 - 210999999) (2001) HOUSING ASSEMBLY Parts Diagram

53cm Walk-Behind Mower, Canada

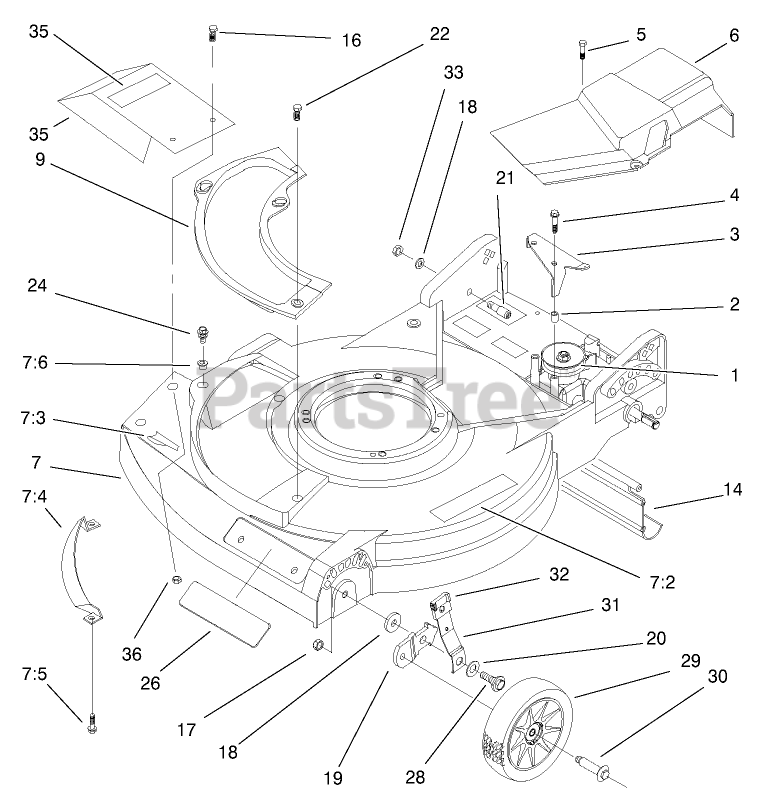

HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 92-7869

GEAR CASE ASM

$

$

Not available

2

Toro 46-5551

SPACER

$2.49

$

In Stock, only 2 left!

0

3

Toro 92-7699-03

BRACKET-ACTUATOR

$12.99

$

Usually ships in 3-6 days

0

4

Toro 32144-110

SCREW-HWH

$1.49

$

In Stock, only 4 left!

0

5

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0

6

Toro 98-4493

COVER-DRIVE

$47.99

$

Usually ships in 3-6 days

0

7

Toro 99-5204

HOUSING ASM

$265.99

$

Usually ships in 3-6 days

0

7:2

Toro 93-4105

DECAL-DANGER
(Superseded to 112-8759)

$18.99

$

Usually ships in 3-6 days

0

7:3

Toro 93-7009

DECAL-DANGER

$7.49

$

In Stock, Qty 20+

0

7:4

Toro 608175

BAR-TOE

$77.99

$

Usually ships in 3-6 days

0

7:5

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

7:6

Toro 94-1610

NUT-CLIP

$1.49

$

In Stock, Qty 20+

0

9

Toro 95-7052

PLATE-OPENING, CHUTE

$36.99

$

In Stock, only 3 left!

0

14

Toro 92-7736

SHIELD-TRAILING

$40.99

$

In Stock, only 3 left!

0

16

Toro 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+

0

17

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

18

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

19

Toro 95-7403-03

BRACKET-HEIGHT ADJUSTMENT, WHEEL

$

$

Not available

20

Toro 3290-413

WASHER-BELLEVILLE

$5.49

$

Usually ships in 3-6 days

0

21

Toro 92-9673

BOLT-SHOULDER

$7.49

$

In Stock, only 2 left!

0

22

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

24

Toro 614677

SCREW-SEMS

$4.49

$

In Stock, Qty 12

0

26

Toro 100-6378

DECAL-DECK,SP

$

$

Not available

28

Toro 92-4856

BOLT-SHOULDER

$76.99

$

Usually ships in 3-6 days

0

29

Toro 684159

WHEEL AND TIRE ASM

$77.99

$

Usually ships in 3-6 days

0

30

$15.99

$

In Stock, only 2 left!

0

31

Toro 92-1006

FRONT SPRING ARM ASM

$12.99

$

In Stock, only 2 left!

0

32

Toro 92-1008

KNOB-LEVER, HEIGHT ADJUSTMENT

$14.99

$

In Stock, only 2 left!

0

35

Toro 104-1009

GUARDPLATE (SERVICE)

$

$

Not available

35:1

Toro 93-7009

DECAL-DANGER

$7.49

$

In Stock, Qty 20+

0

36

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0
