11003 - Toro 53cm Walk-Behind Mower, Canada (SN: 089000001 - 089999999) (1998) HOUSING ASSEMBLY Parts Diagram

53cm Walk-Behind Mower, Canada

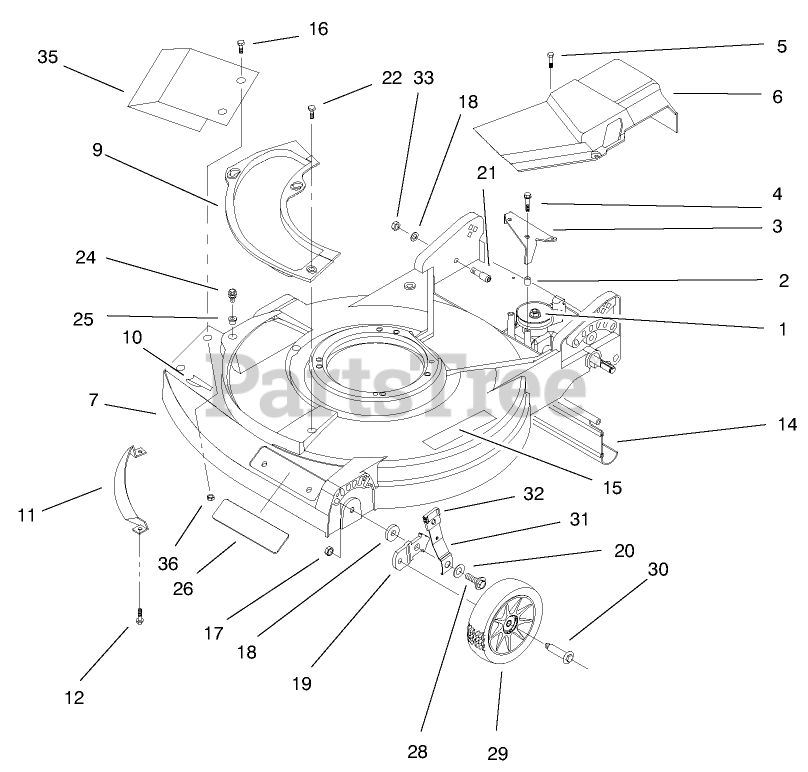

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 92-7869

GEAR CASE ASM

$

$

Not available

2

Toro 46-5551

SPACER

$2.49

$

In Stock, only 2 left!

0

3

Toro 92-7699

Bracket-Actuator
(Superseded to 92-7699-03)

$14.99

$

Usually ships in 3-6 days

0

4

Toro 92-7748

SCREW
(Superseded to 36-3860)

$2.49

$

In Stock, Qty 10

0

5

Toro 12-5450

SCREW

$10.99

$

In Stock, only 2 left!

0

6

Toro 98-4493

COVER-DRIVE

$50.99

$

Usually ships in 3-6 days

0

7

Toro 99-5204

HOUSING ASM

$280.99

$

Usually ships in 3-6 days

0

9

Toro 95-7052

PLATE-OPENING, CHUTE

$38.99

$

In Stock, Qty 9

0

10

Toro 93-7009

DECAL-DANGER

$7.99

$

In Stock, Qty 20+

0

11

Toro 608175

BAR-TOE

$82.99

$

Usually ships in 3-6 days

0

12

Toro 46-6811

SCREW-HWH

$3.99

$

In Stock, only 3 left!

0

14

Toro 92-7736

SHIELD-TRAILING

$42.99

$

In Stock, only 3 left!

0

15

Toro 93-4105

DECAL-DANGER
(Superseded to 112-8759)

$19.99

$

Usually ships in 3-6 days

0

16

Toro 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+

0

17

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

18

Toro 608834

WASHER

$15.99

$

In Stock, only 2 left!

0

19

Toro 614637

Bracket-H.
(Superseded to 95-7403-03)

$

$

Not available

20

Toro 3290-413

WASHER-BELLEVILLE

$5.49

$

Usually ships in 3-6 days

0

21

Toro 92-9673

BOLT-SHOULDER

$7.99

$

In Stock, only 2 left!

0

22

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

24

Toro 614677

SCREW-SEMS

$4.99

$

In Stock, Qty 12

0

25

Toro 94-1610

NUT-CLIP

$1.49

$

In Stock, Qty 20+

0

26

Toro 99-1503

DECAL-DECK SP

$

$

Not available

28

Toro 92-4856

BOLT-SHOULDER

$81.99

$

Usually ships in 3-6 days

0

29

Toro 684159

WHEEL AND TIRE ASM

$72.99

$

Usually ships in 3-6 days

0

30

Toro 603567

BOLT

$16.99

$

In Stock, only 2 left!

0

31

Toro 92-1006

FRONT SPRING ARM ASM

$14.99

$

In Stock, only 1 left!

0

32

Toro 92-1008

KNOB-LEVER, HEIGHT ADJUSTMENT

$15.99

$

In Stock, only 2 left!

0

33

Toro 610358

NUT-JAM, LOCKING

$2.99

$

In Stock, Qty 12

0

35

Toro 93-7415

GUARD PLATE

$

$

Not available

36

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0
