11003 - Lawn-Boy 53cm Walk-Behind Mower, Canada (SN: 009900001 - 009999999) (1999) REAR AXLE ASSEMBLY Parts Diagram

53cm Walk-Behind Mower, Canada

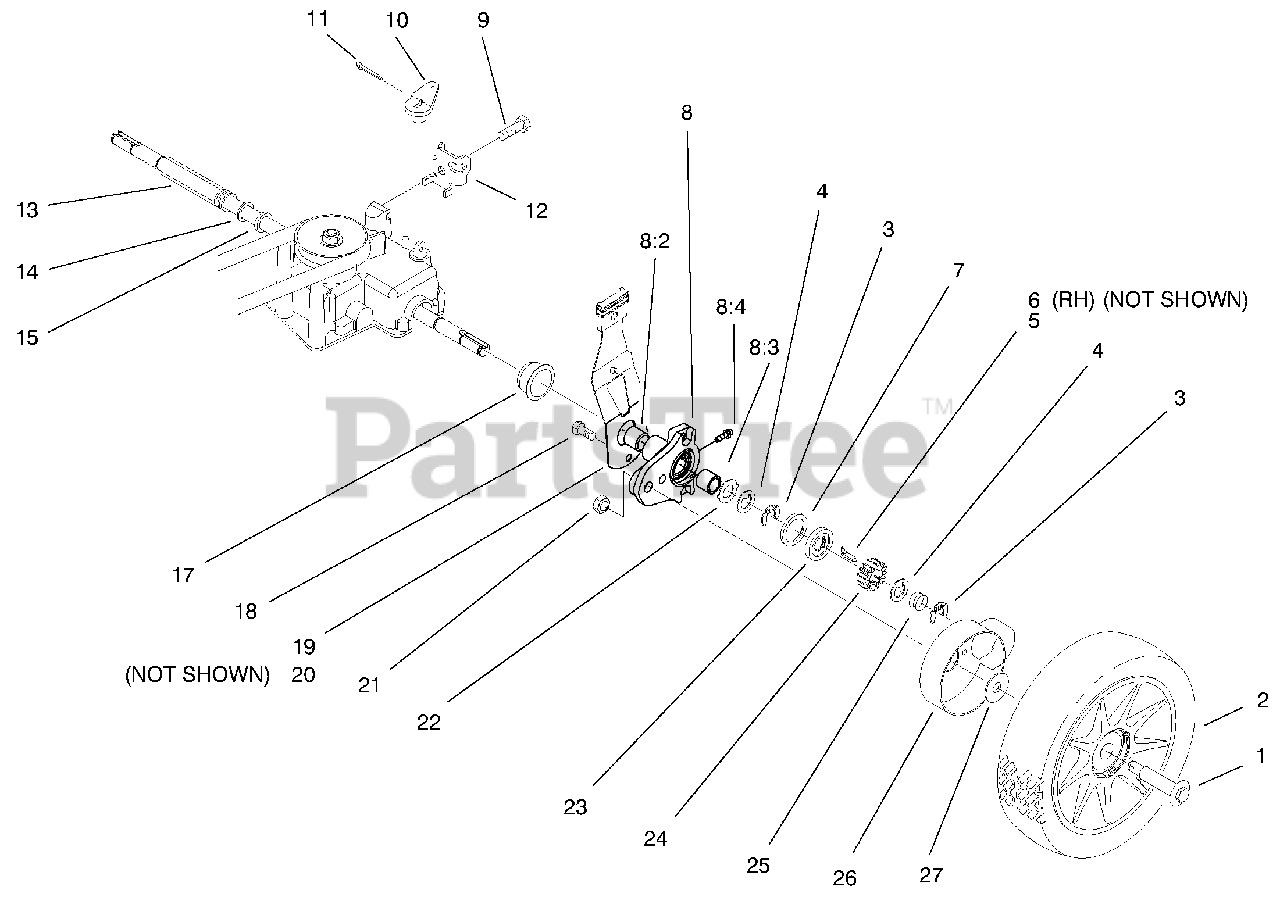

REAR AXLE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 92-1057

Bolt-Shoulder

$3.99

$

In Stock, Qty 20+

0

2

Lawn-Boy 95-1714

ASM-Whl
(Superseded to 115-1454)

$113.99

$

In Stock, only 2 left!

0

3

Lawn-Boy 65-2720

Ring-Retaining

$1.49

$

In Stock, Qty 20+

0

4

Lawn-Boy 65-4740

Washer-Thrust

$2.49

$

In Stock, Qty 20+

0

5

Lawn-Boy 66-6050

Key-Rocking LH
(Superseded to 139-6644)

$7.49

$

In Stock, Qty 20+

0

6

Lawn-Boy 66-6040

Key-Locking RH
(Superseded to 139-6643)

$7.49

$

In Stock, Qty 20+

0

7

Lawn-Boy 65-4710

Ring-Friction

$3.49

$

In Stock, Qty 20+

0

8

Lawn-Boy 92-7746

ASM-Hgt Adj Arm

$50.99

$

In Stock, only 2 left!

0

8:2

$4.99

$

In Stock, Qty 20+

0

8:3

$6.49

$

In Stock, Qty 20+

0

8:4

Lawn-Boy 302-56

Fitting-Grease

$5.49

$

In Stock, only 1 left!

0

9

Lawn-Boy 32144-70

Screw-TAP

$2.99

$

In Stock, Qty 20+

0

10

Lawn-Boy 60-8821

Lever-Shift

$11.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 3272-10

Pin-Cotter

$1.49

$

In Stock, Qty 11

0

12

Lawn-Boy 82-8780

Retainer-Cable

$14.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 24-7920

Cover-Drive Shaft

$11.99

$

Usually ships in 3-6 days

0

14

$2.49

$

In Stock, Qty 8

0

15

Lawn-Boy 605255

Washer-Flat

$1.99

$

In Stock, Qty 20+

0

17

$8.49

$

In Stock, Qty 7

0

18

$1.99

$

In Stock, Qty 20+

0

19

Lawn-Boy 92-6540

ASM-Spring Arm

$21.99

$

In Stock, only 2 left!

0

20

Lawn-Boy 92-6539

ASM-Spring Arm

$21.99

$

In Stock, only 3 left!

0

21

Lawn-Boy 610358

Nut-Lock

$2.99

$

In Stock, Qty 12

0

22

Lawn-Boy 65-4730

Washer-Thrust

$2.49

$

In Stock, Qty 20+

0

23

$1.49

$

In Stock, Qty 20+

0

24

Lawn-Boy 65-4750

Gear-Pinion

$11.99

$

In Stock, Qty 20+

0

25

Lawn-Boy 65-4720

Spring-Compression

$1.49

$

In Stock, Qty 20+

0

26

Lawn-Boy 94-1609

Cover-Wheel

$10.99

$

In Stock, Qty 5

0

27

Lawn-Boy 614426

Washer-Stepped

$3.49

$

In Stock, Qty 20+

0
