11003 - Lawn-Boy 53cm Walk-Behind Mower, Canada (SN: 008900001 - 008999999) (1998) ENGINE & BLADE ASSEMBLY Parts Diagram

53cm Walk-Behind Mower, Canada

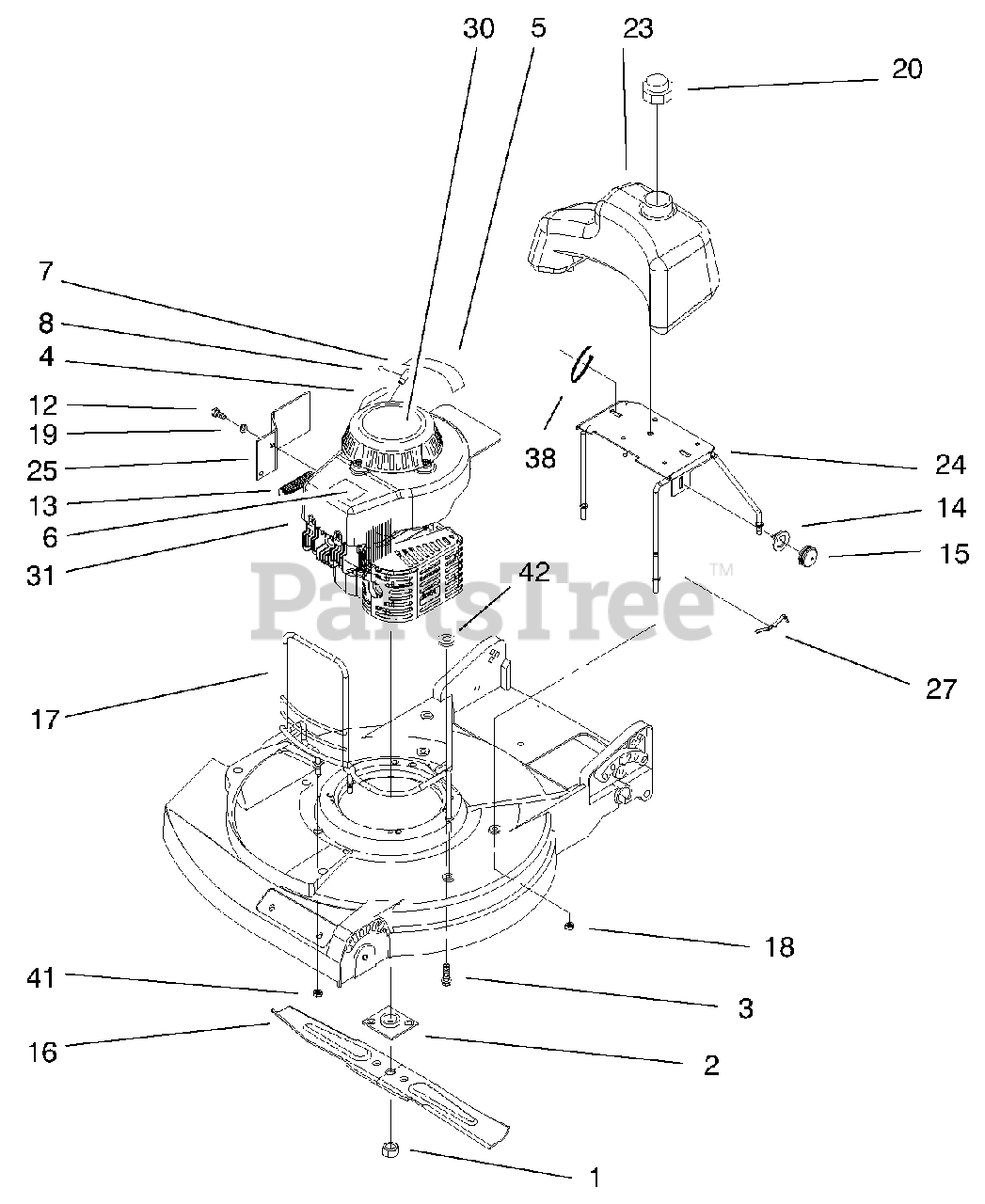

ENGINE & BLADE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 603164

Nut-Blade
(Superseded to 121-3611)

$5.99

$

In Stock, only 1 left!

0

2

Lawn-Boy 677525

ASM-Plate & Collar

$51.99

$

In Stock, only 1 left!

0

3

Lawn-Boy 98-4480

Screw-Sems

$3.49

$

In Stock, only 3 left!

0

4

Lawn-Boy 612782

Gas Line

$7.49

$

In Stock, Qty 9

0

5

Lawn-Boy 99-1520

Decal-Fuel Mix

$

$

Not available

6

Lawn-Boy 99-1517

Decal-Lawn Boy

$33.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 47-2480

Rope Stop

$

$

Not available

$

$

Not available

12

Lawn-Boy 322-3

Screw-HH

$0.99

$

In Stock, Qty 13

0

13

Lawn-Boy 93-4306

Spring-Compression

$6.49

$

In Stock, only 1 left!

0

14

Lawn-Boy 44-2750

Body-Primer

$8.99

$

In Stock, Qty 20+

0

15

Lawn-Boy 66-7460

Bulb-Primer

$6.49

$

In Stock, Qty 20+

0

16

Lawn-Boy 612543

Blade-21" Whirl
(Superseded to 612543-03)

$33.99

$

In Stock, only 3 left!

0

17

Lawn-Boy 98-1598

Guard-Engine

$243.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 608311

Locknut

$3.49

$

Usually ships in 3-6 days

0

19

Lawn-Boy 3253-4

Washer-Lock

$0.99

$

In Stock, Qty 20+

0

20

Lawn-Boy 93-3660

ASM-Fuel/Oil Cap
(Superseded to 98-8344)

$24.99

$

In Stock, only 2 left!

0

21

Lawn-Boy 306531

Nut-Throttle Cable
(Superseded to 3217-26)

$1.99

$

In Stock, only 2 left!

0

22

Lawn-Boy 314576

Screw-Throttle Cable

$1.99

$

In Stock, Qty 6

0

23

Lawn-Boy 98-4497

Tank-Fuel

$349.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 98-4459

Tank Bkt ASM
(Superseded to 98-4459-03)

$

$

Not available

25

Lawn-Boy 99-1515

Guard-Brake
(Superseded to 99-1515-03)

$43.99

$

Usually ships in 3-6 days

0

27

$5.49

$

In Stock, Qty 6

0

28

Lawn-Boy 612428

Screw-Sems

$2.49

$

In Stock, only 4 left!

0

29

Lawn-Boy 32144-53

Screw-Tf Acorn Hd

$3.99

$

In Stock, Qty 10

0

30

Lawn-Boy 92-9551

Decal-Recoil

$

$

Not available

31

Lawn-Boy 99-2910

Engine ASM
(Superseded to 95-7636)

$

$

Not available

38

Lawn-Boy 614249

Tie Strap

$1.49

$

In Stock, Qty 6

0

41

$2.99

$

In Stock, Qty 8

0

42

$

$

Not available
