11002 - Toro 53cm Walk-Behind Mower, Canada (SN: 099000001 - 099999999) (1999) ENGINE & BLADE ASSEMBLY Parts Diagram

53cm Walk-Behind Mower, Canada

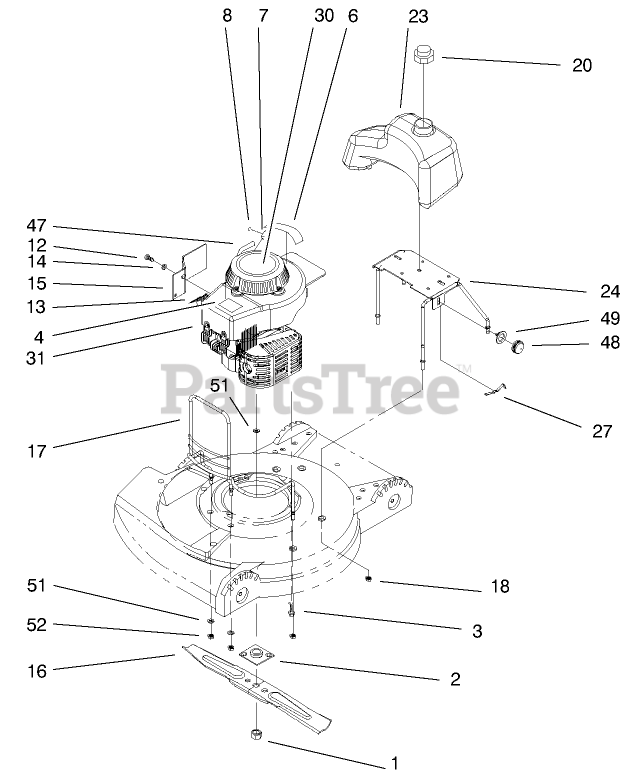

ENGINE & BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 603164

NUT-BLADE
(Superseded to 121-3611)

$5.99

$

Usually ships in 3-6 days

0

2

Toro 677525

PLATE AND COLLAR ASM

$23.99

$

In Stock, only 1 left!

0

3

Toro 98-4480

SCREW-HH, SEMS

$3.49

$

In Stock, only 3 left!

0

4

Toro 99-1517

DECAL-LAWN BOY

$28.99

$

Usually ships in 3-6 days

0

6

Toro 99-1520

DECAL- FUEL MIX

$

$

Not available

7

Toro 47-2480

STOP-ROPE

$

$

Not available

8

Toro 3290-443

STAPLE

$

$

Not available

12

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 93-4306

SPRING-COMPRESSION

$5.49

$

In Stock, only 1 left!

0

14

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

15

Toro 99-1515-03

GUARD-BRAKE S

$37.99

$

Usually ships in 3-6 days

0

16

Toro 612543

Blade
(Superseded to 612543-03)

$29.99

$

In Stock, only 4 left!

0

17

Toro 98-1598

GUARD-MUFFLER

$208.99

$

Usually ships in 3-6 days

0

18

Toro 608311

NUT-LOCK F

$2.99

$

Usually ships in 3-6 days

0

20

Toro 98-8344

FUEL AND OIL CAP ASM

$23.99

$

In Stock, only 2 left!

0

21

Toro 314576

SCREW

$1.49

$

In Stock, Qty 6

0

22

Toro 306531

NUT-HEX
(Superseded to 3217-26)

$1.99

$

In Stock, only 2 left!

0

23

Toro 98-4497

TANK-FUEL

$308.99

$

Usually ships in 3-6 days

0

24

Toro 98-4458-03

TANK BRACKET ASM

$128.99

$

Usually ships in 3-6 days

0

27

Toro 609830

SPRING

$5.49

$

In Stock, Qty 6

0

30

Toro 92-9551

DECAL - RECOIL

$

$

Not available

31

Engine-Briggs and Stratton 084232-0121-e1

$

$

Not available

47

Toro 612782

LINE-FUEL

$6.49

$

In Stock, Qty 9

0

48

Toro 66-7460

BULB-PRIMER

$6.49

$

In Stock, Qty 20+

0

49

Toro 44-2750

BODY-PRIMER

$8.99

$

In Stock, Qty 20+

0

51

Toro 68-5920

WASHER-HOOD PIVOT

$

$

Not available

52

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0
