11002 - Toro 53cm Walk-Behind Mower, Canada (SN: 089000001 - 089999999) (1998) HOUSING ASSEMBLY Parts Diagram

53cm Walk-Behind Mower, Canada

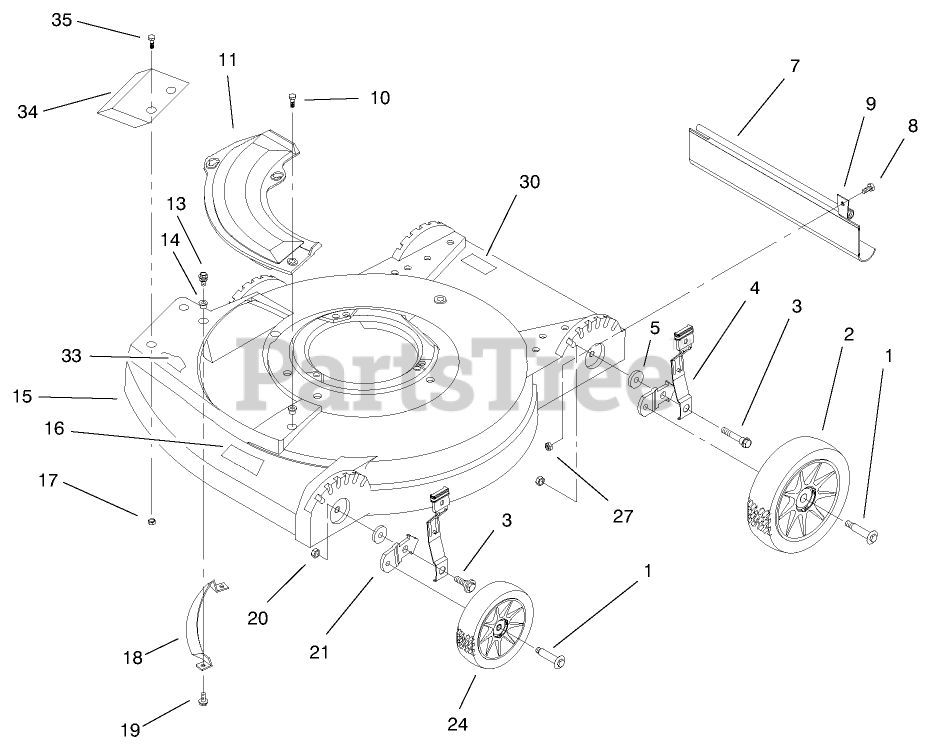

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 603567

BOLT

$15.99

$

In Stock, only 2 left!

0

2

Toro 683464

WHEEL/TIRE ASM

$90.99

$

Usually ships in 3-6 days

0

3

Toro 610646

BOLT

$7.49

$

Usually ships in 3-6 days

0

4

Toro 153444

SPRING ARM ASM

$

$

Not available

5

Toro 608834

WASHER

$14.99

$

In Stock, only 2 left!

0

7

Toro 93-7368

SHIELD-TRAILING

$41.99

$

In Stock, only 1 left!

0

8

Toro 609891

Screw
(Superseded to 700138)

$

$

Not available

9

Toro 93-7693

CLAMP-SHIELD

$15.99

$

In Stock, only 2 left!

0

10

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

11

Toro 95-7052

PLATE-OPENING, CHUTE

$36.99

$

In Stock, only 3 left!

0

13

Toro 614677

SCREW-SEMS

$4.49

$

In Stock, Qty 12

0

14

Toro 94-1610

NUT-CLIP

$1.49

$

In Stock, Qty 20+

0

15

Toro 99-5203

HOUSING ASM

$1293.99

$

Usually ships in 3-6 days

0

16

Toro 99-1502

DECAL-DECK HP

$

$

Not available

17

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

18

Toro 608175

BAR-TOE

$77.99

$

Usually ships in 3-6 days

0

19

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

20

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

21

Toro 608833

Bracket
(Superseded to 608833-03)

$27.99

$

In Stock, only 2 left!

0

24

Toro 684159

WHEEL AND TIRE ASM

$77.99

$

Usually ships in 3-6 days

0

27

Toro 3296-52

NUT-LOCK, NI

$6.99

$

Usually ships in 3-6 days

0

30

Toro 93-6657

DECAL-DANGER

$

$

Not available

33

Toro 93-7009

DECAL-DANGER

$7.49

$

In Stock, Qty 20+

0

34

Toro 93-7415

GUARD PLATE

$

$

Not available

35

Toro 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+

0
