11002 - Toro 53cm Walk-Behind Mower, Canada (SN: 089000001 - 089999999) (1998) CARBURETOR ASSEMBLY Parts Diagram

53cm Walk-Behind Mower, Canada

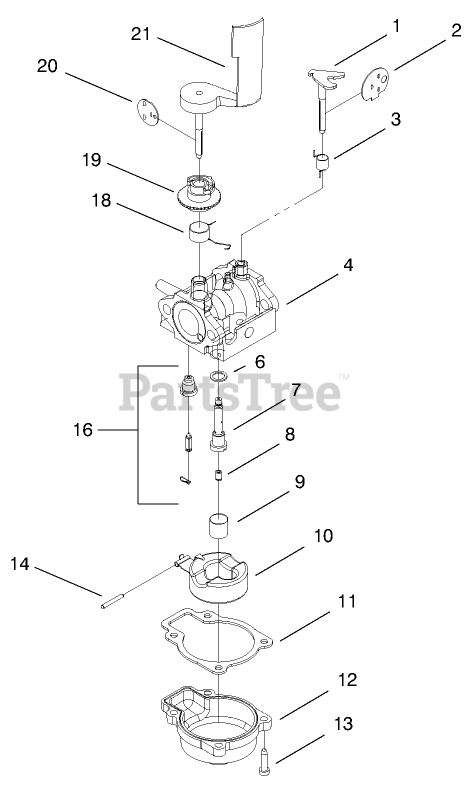

CARBURETOR ASSEMBLY Parts Diagram

  • Title

1

Toro 95-5581

SHAFT-CHOKE

$3.99

$

In Stock, only 4 left!

0

2

Toro 94-5788

DISC-CHOKE

$2.99

$

Usually ships in 3-6 days

0

3

Toro 95-5583

SPRING-CHOKE

$3.49

$

In Stock, only 2 left!

0

4

Toro 98-7042

CARBURETOR ASM
(Superseded to 107-4607)

$

$

Not available

6

Toro 612383

WASHER

$1.99

$

In Stock, only 4 left!

0

7

Toro 98-7001

NOZZLE

$31.99

$

In Stock, Qty 5

0

8

Toro 98-1357

JET-MAIN 77.5

$12.99

$

In Stock, only 2 left!

0

9

Toro 94-5787

FILTER-FUEL

$2.49

$

In Stock, Qty 6

0

10

Toro 95-1899

FLOAT AND ARM ASM

$16.99

$

In Stock, Qty 10

0

11

Toro 98-1362

GASKET

$2.99

$

In Stock, Qty 20+

0

12

Toro 92-9691

CHAMBER-FLOAT

$37.99

$

Usually ships in 3-6 days

0

13

Toro 608850

SCREW-HH

$1.99

$

In Stock, only 3 left!

0

14

Toro 92-6389

PIN-STRAIGHT

$5.49

$

In Stock, only 1 left!

0

16

Toro 92-9697

VALVE / SEAT-FLOAT

$21.99

$

In Stock, Qty 10

0

18

Toro 98-7011

SPRING-THROTTLE

$3.49

$

In Stock, Qty 8

0

19

Toro 610834

COLLAR-ADJUST, AIRVANE

$3.49

$

In Stock, Qty 20+

0

20

Toro 98-7047

DISC-THROTTLE

$1.99

$

In Stock, Qty 11

0

21

Toro 92-6376

Air Vane&shaft
(Superseded to 104-4430)

$11.99

$

In Stock, Qty 18

0
