11002 - Lawn-Boy 53cm Walk-Behind Mower, Canada (SN: 200000001 - 200999999) (2000) HOUSING ASSEMBLY Parts Diagram

53cm Walk-Behind Mower, Canada

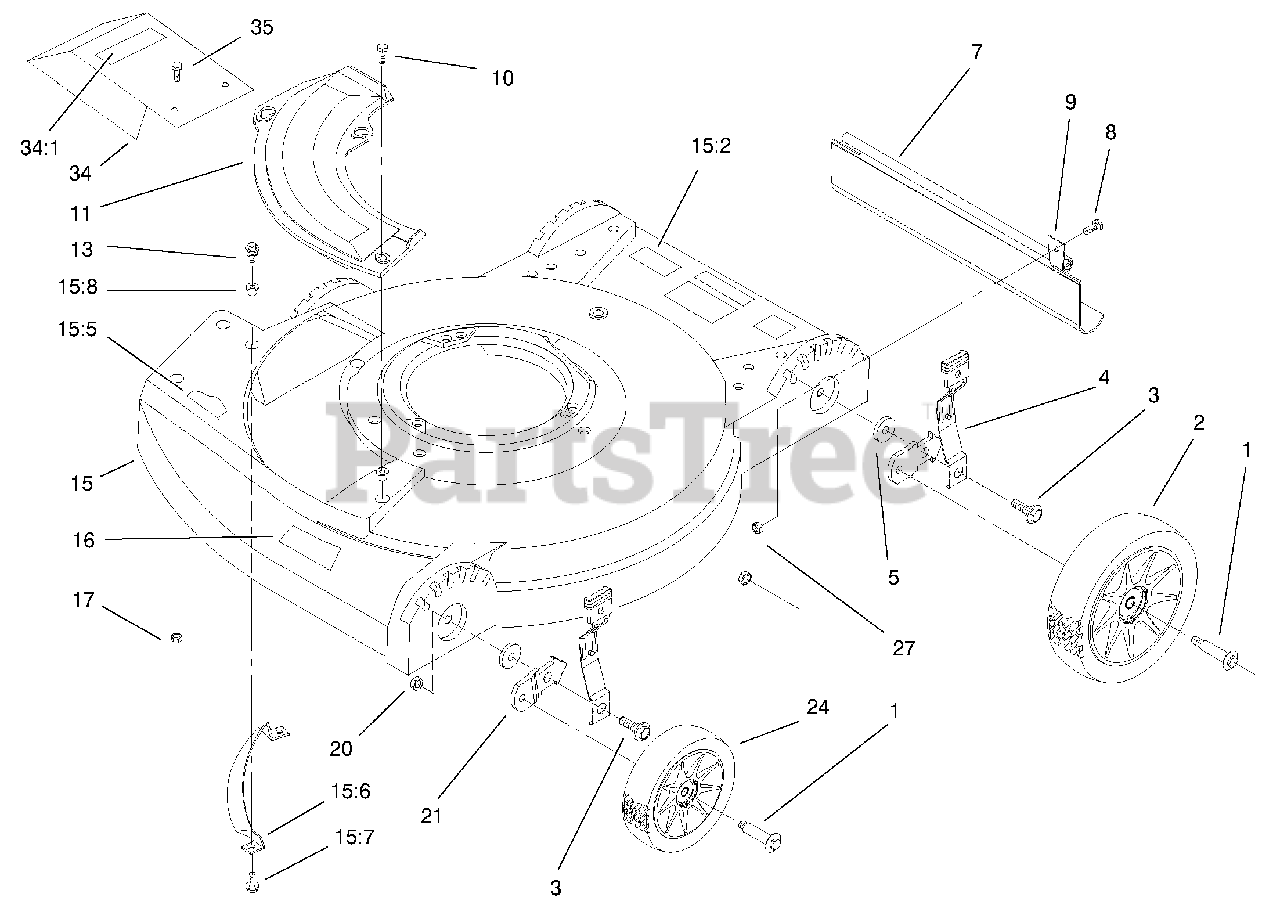

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 603567

Bolt

$13.99

$

In Stock, only 2 left!

0

2

Lawn-Boy 683464

Wheel/Tire ASM

$79.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 610646

Bolt

$6.49

$

Usually ships in 3-6 days

0

4

Lawn-Boy 153444

Spring Arm ASM

$

$

Not available

5

Lawn-Boy 608834

Washer

$15.99

$

In Stock, only 2 left!

0

7

Lawn-Boy 93-7368

Shield-Trailing

$35.99

$

In Stock, only 1 left!

0

8

Lawn-Boy 321-3

Screw

$1.49

$

In Stock, Qty 20+

0

9

Lawn-Boy 93-7693

Clamp-Shield

$15.99

$

In Stock, only 2 left!

0

10

Lawn-Boy 49-2040

Screw-Taptite

$2.49

$

In Stock, Qty 20+

0

11

Lawn-Boy 95-7052

Plate-Chute Opening

$30.99

$

In Stock, only 1 left!

0

13

Lawn-Boy 614677

Screw-Sems

$3.99

$

In Stock, Qty 16

0

15

Lawn-Boy 99-5203

Housing ASM

$1106.99

$

Usually ships in 3-6 days

0

15:2

Lawn-Boy 93-6657

Decal-Danger

$25.99

$

Usually ships in 3-6 days

0

15:5

Lawn-Boy 93-7009

Decal-Danger

$6.49

$

In Stock, only 1 left!

0

15:6

Lawn-Boy 608175

Toe Bar

$75.99

$

Usually ships in 3-6 days

0

15:7

Lawn-Boy 46-6811

Screw & Washer ASM

$3.49

$

In Stock, only 3 left!

0

15:8

Lawn-Boy 94-1610

Grommet-Plastic

$0.99

$

In Stock, Qty 14

0

16

Lawn-Boy 100-6377

Decal-Deck, HP

$

$

Not available

17

Lawn-Boy 3296-42

Nut-Lock

$0.99

$

In Stock, Qty 20+

0

20

Lawn-Boy 3296-39

Nut-Lock, NI

$2.99

$

In Stock, Qty 20+

0

21

Lawn-Boy 608833-03

Bracket-Wheel Height

$22.99

$

In Stock, only 2 left!

0

24

Lawn-Boy 684159

Wheel/Tire ASM

$68.99

$

Usually ships in 3-6 days

0

27

Lawn-Boy 3296-56

Nut-Lock, NI

$2.49

$

In Stock, Qty 20+

0

34

Lawn-Boy 104-1009

Guard Plate

$

$

Not available

34:1

Lawn-Boy 93-7009

Decal-Deflector

$6.49

$

In Stock, only 1 left!

0

35

Lawn-Boy 32105-15

Screw-Machine

$2.99

$

In Stock, Qty 13

0
