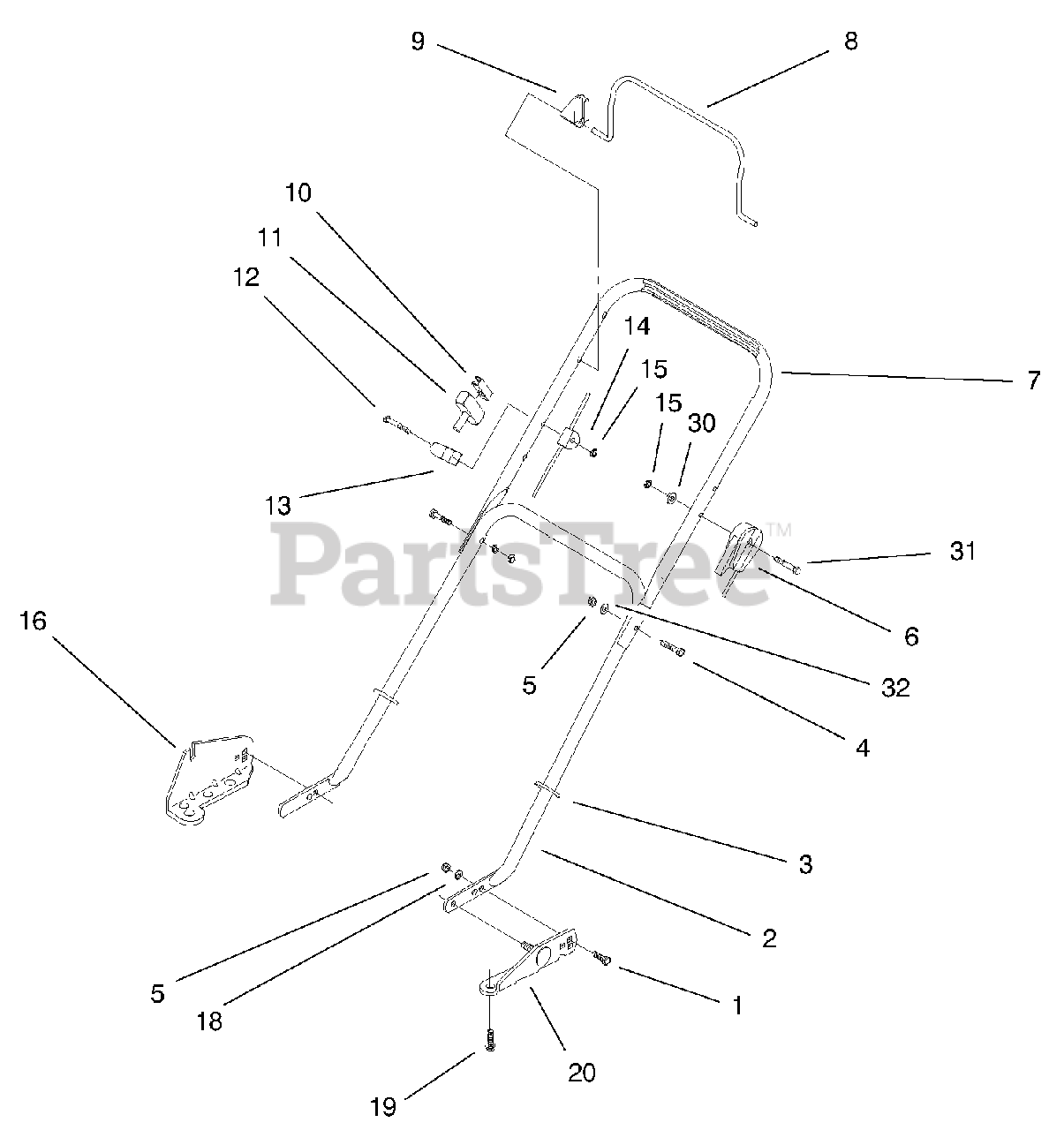

11002 - Lawn-Boy 53cm Walk-Behind Mower, Canada (SN: 009900001 - 009999999) (1999) HANDLE ASSEMBLY Parts Diagram

53cm Walk-Behind Mower, Canada

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 3230-29

Bolt-CARR

$2.99

$

In Stock, Qty 12

0

2

Lawn-Boy 613048-05

Handle Section-Lower
(Superseded to 92-2920-05)

$128.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 614249

Tie Strap

$1.49

$

In Stock, Qty 6

0

4

Lawn-Boy 322-9

Screw-HH

$3.49

$

In Stock, only 1 left!

0

5

Lawn-Boy 3296-29

Nut-Lock

$2.49

$

In Stock, Qty 18

0

6

Lawn-Boy 100-1172

Cable-Throttle

$65.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 614515-05

Handle Section-Upper

$

$

Currently unavailable

8

Lawn-Boy 100-1174

Bail-Flywheel Brake

$78.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 92-5412

Stop-Pivot
(Superseded to 107-0757)

$4.49

$

In Stock, only 1 left!

0

10

Lawn-Boy 612824

Clip-Rope

$3.99

$

In Stock, Qty 10

0

11

Lawn-Boy 612825

Handle-Starter
(Superseded to 81-1630)

$18.99

$

In Stock, only 1 left!

0

12

Lawn-Boy 321-49

Screw-HH

$1.49

$

In Stock, Qty 9

0

13

Lawn-Boy 93-7383

Guide-Rope
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 5

0

14

Lawn-Boy 100-1173

Cable-Flywheel Brake

$69.99

$

In Stock, only 3 left!

0

15

Lawn-Boy 3296-73

Nut-Lock

$5.49

$

In Stock, Qty 6

0

16

Lawn-Boy 684057-03

Bracket & Pin ASM

$

$

Not available

18

Lawn-Boy 3253-33

Washer-Lock

$1.99

$

In Stock, Qty 12

0

19

$3.49

$

In Stock, only 3 left!

0

20

Lawn-Boy 684058-03

Bracket & Pin ASM

$70.99

$

Usually ships in 3-6 days

0

30

Lawn-Boy 92-8632

Washer
(Superseded to 115-0995)

$6.99

$

In Stock, only 3 left!

0

31

Lawn-Boy 321-48

Screw-HH

$1.99

$

In Stock, only 2 left!

0

32

$3.49

$

In Stock, Qty 10

0
