11002 - Lawn-Boy 53cm Walk-Behind Mower, Canada (SN: 008900001 - 008999999) (1998) HOUSING ASSEMBLY Parts Diagram

53cm Walk-Behind Mower, Canada

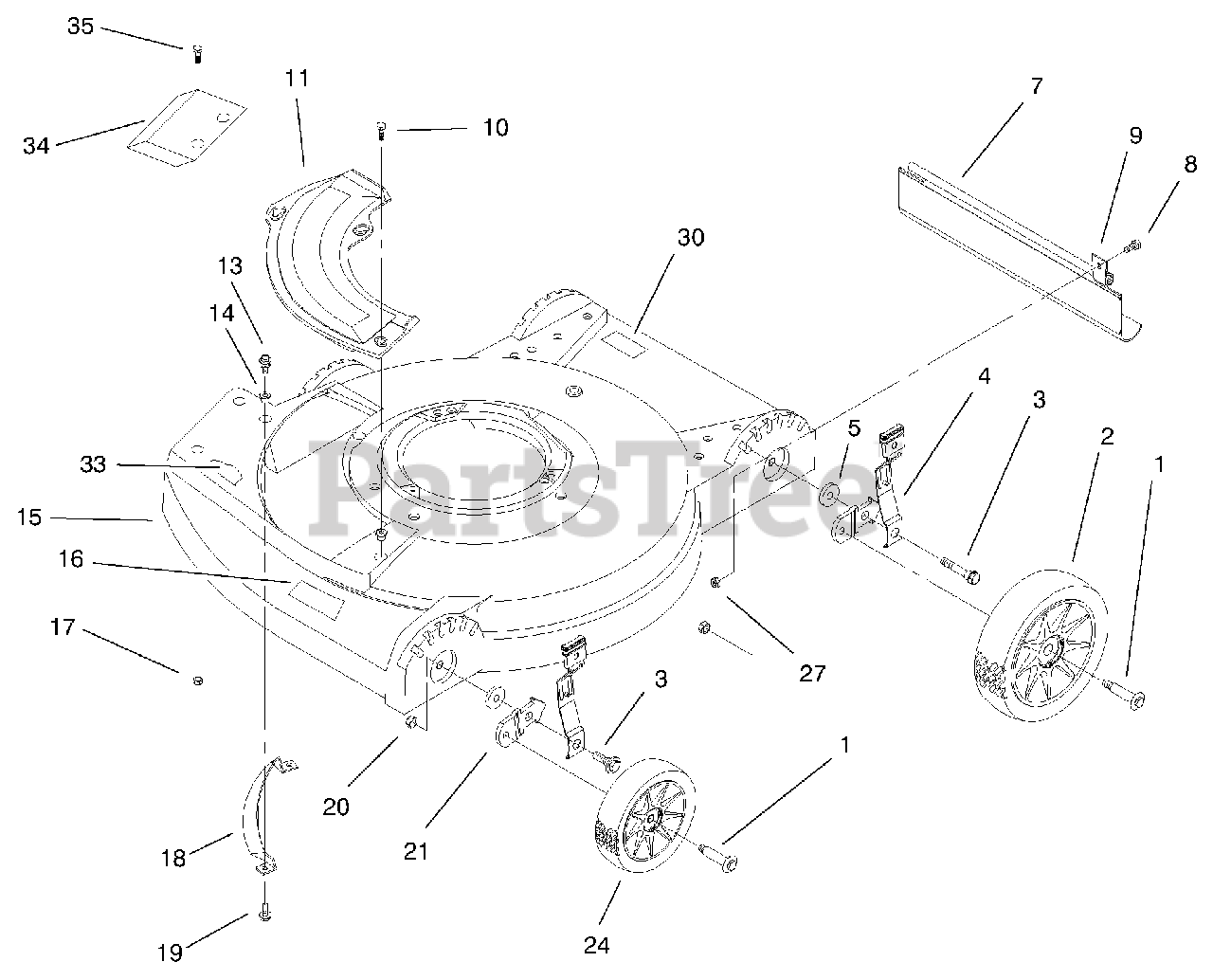

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 603567

Bolt-Wheel

$15.99

$

In Stock, only 2 left!

0

2

Lawn-Boy 683464

ASM-Wheel & Tire

$90.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 610646

Bolt-Ajustment

$7.49

$

Usually ships in 3-6 days

0

4

Lawn-Boy 153444

Knob & Spring

$

$

Not available

5

Lawn-Boy 608834

Washer

$14.99

$

In Stock, only 2 left!

0

7

Lawn-Boy 93-7368

Shield-Trailing

$41.99

$

In Stock, only 1 left!

0

8

Lawn-Boy 609891

Screw-HH
(Superseded to 700138)

$

$

Not available

9

Lawn-Boy 93-7693

Clamp-Rod

$15.99

$

In Stock, only 2 left!

0

10

Lawn-Boy 49-2040

Screw-HH

$2.49

$

In Stock, Qty 20+

0

11

Lawn-Boy 95-7052

Plate-Cover

$36.99

$

In Stock, only 3 left!

0

13

Lawn-Boy 614677

Screw-Sems

$4.49

$

In Stock, Qty 12

0

14

Lawn-Boy 94-1610

Grommet-Plastic

$1.49

$

In Stock, Qty 20+

0

15

Lawn-Boy 99-5203

Hsg-Commercial 21" Int'l

$1293.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 99-1502

Decal-Deck 550c

$

$

Not available

17

Lawn-Boy 3296-42

Nut-Lock

$0.99

$

In Stock, Qty 20+

0

18

Lawn-Boy 608175

Toe Bar 21

$77.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 46-6811

Screw-HWH

$3.49

$

In Stock, only 3 left!

0

20

Lawn-Boy 3296-39

Nut-Lock

$2.99

$

In Stock, Qty 20+

0

21

Lawn-Boy 608833

Bracket-Height
(Superseded to 608833-03)

$27.99

$

In Stock, only 2 left!

0

24

Lawn-Boy 684159

Wheel & Tire

$77.99

$

Usually ships in 3-6 days

0

27

Lawn-Boy 3296-52

Nut-Lock

$6.99

$

Usually ships in 3-6 days

0

30

Lawn-Boy 93-6657

Decal-Danger

$

$

Not available

33

Lawn-Boy 93-7009

Decal-Deflector Danger

$7.49

$

In Stock, Qty 20+

0

34

Lawn-Boy 93-7415

Guard-Plate

$

$

Not available

35

Lawn-Boy 32105-15

Screw-HH

$2.99

$

In Stock, Qty 20+

0
