11002 - Lawn-Boy 53cm Walk-Behind Mower, Canada (SN: 008900001 - 008999999) (1998) HANDLE ASSEMBLY Parts Diagram

53cm Walk-Behind Mower, Canada

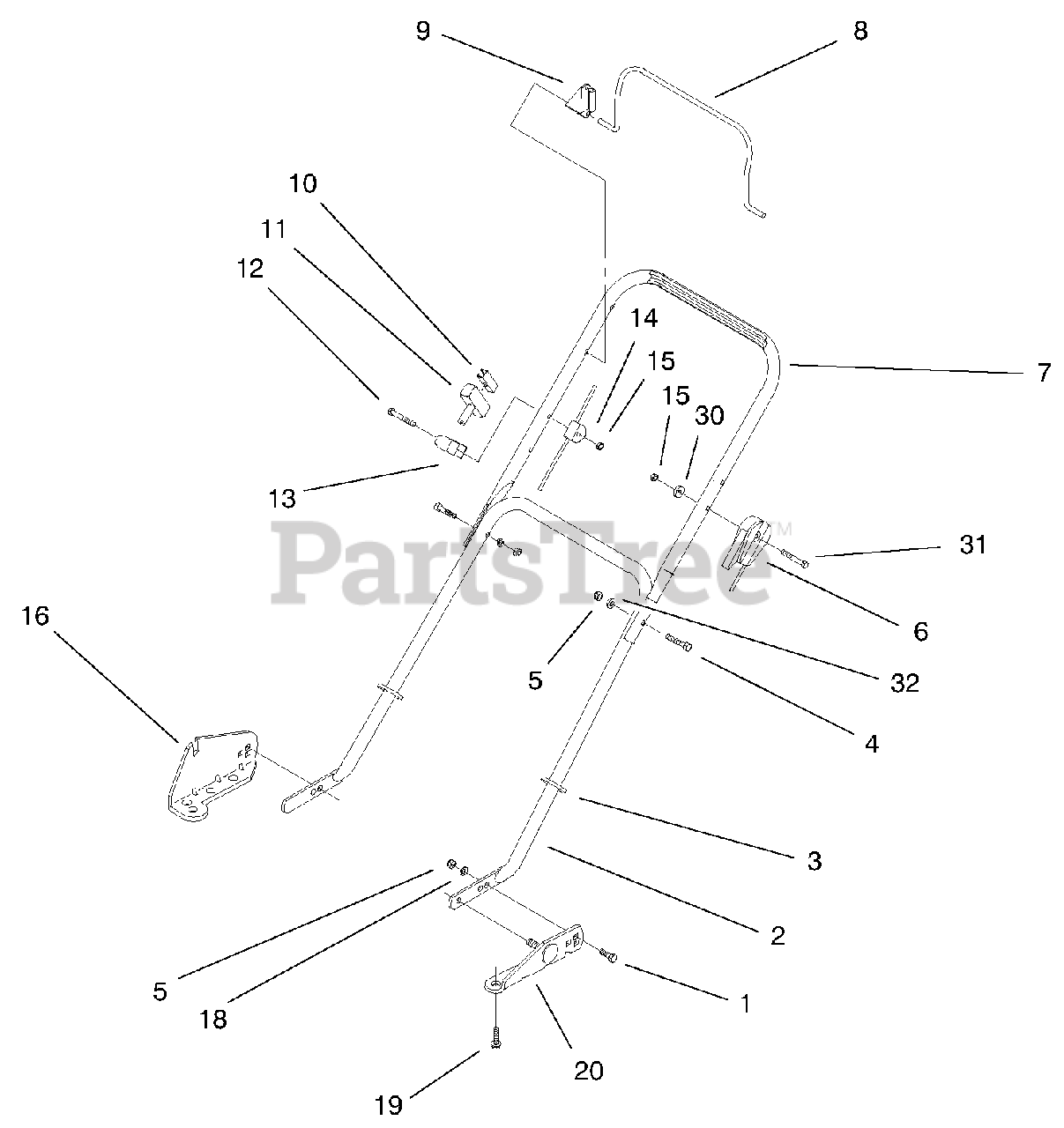

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 3230-29

Bolt-CARR

$2.99

$

In Stock, Qty 12

0

2

Lawn-Boy 613048

Handle Section-Lower
(Superseded to 92-2920-05)

$128.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 614249

Tie Strap

$1.49

$

In Stock, Qty 6

0

4

Lawn-Boy 322-9

Screw-HH

$3.49

$

In Stock, only 1 left!

0

5

Lawn-Boy 3296-29

Nut-Lock

$2.49

$

In Stock, Qty 18

0

6

Lawn-Boy 95-7446

Cable-Throttle

$73.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 95-1713

Handle Section-Upper
(Superseded to 95-1713-05)

$91.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 93-4184

Bail-Flywheel Brake
(Superseded to 93-4184-03)

$34.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 92-5412

Stop-Pivot
(Superseded to 107-0757)

$4.49

$

In Stock, only 1 left!

0

10

Lawn-Boy 612824

Clip-Rope

$3.99

$

In Stock, Qty 10

0

11

Lawn-Boy 612825

Handle-Starter
(Superseded to 81-1630)

$18.99

$

In Stock, only 1 left!

0

12

Lawn-Boy 321-49

Screw-HH

$1.49

$

In Stock, Qty 9

0

13

Lawn-Boy 93-7383

Guide-Rope
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 5

0

14

Lawn-Boy 92-7738

Cable-Flywheel Brake

$28.99

$

In Stock, only 1 left!

0

15

Lawn-Boy 3296-73

Nut-Lock

$5.49

$

In Stock, Qty 6

0

16

Lawn-Boy 684057

ASM-Bracket & Pin
(Superseded to 684057-03)

$

$

Not available

18

Lawn-Boy 3253-33

Washer-Lock

$1.99

$

In Stock, Qty 12

0

19

Lawn-Boy 607188

Screw

$3.49

$

In Stock, only 3 left!

0

20

Lawn-Boy 684058

ASM-Bracket & Pin
(Superseded to 684058-03)

$70.99

$

Usually ships in 3-6 days

0

30

Lawn-Boy 92-8632

Washer
(Superseded to 115-0995)

$6.99

$

In Stock, only 3 left!

0

31

Lawn-Boy 321-48

Screw-HH

$1.99

$

In Stock, only 2 left!

0

32

Lawn-Boy 609739

Washer

$3.49

$

In Stock, Qty 10

0
