11002 - Lawn-Boy 53cm Walk-Behind Mower, Canada (SN: 008900001 - 008999999) (1998) ENGINE ASSEMBLY Parts Diagram

53cm Walk-Behind Mower, Canada

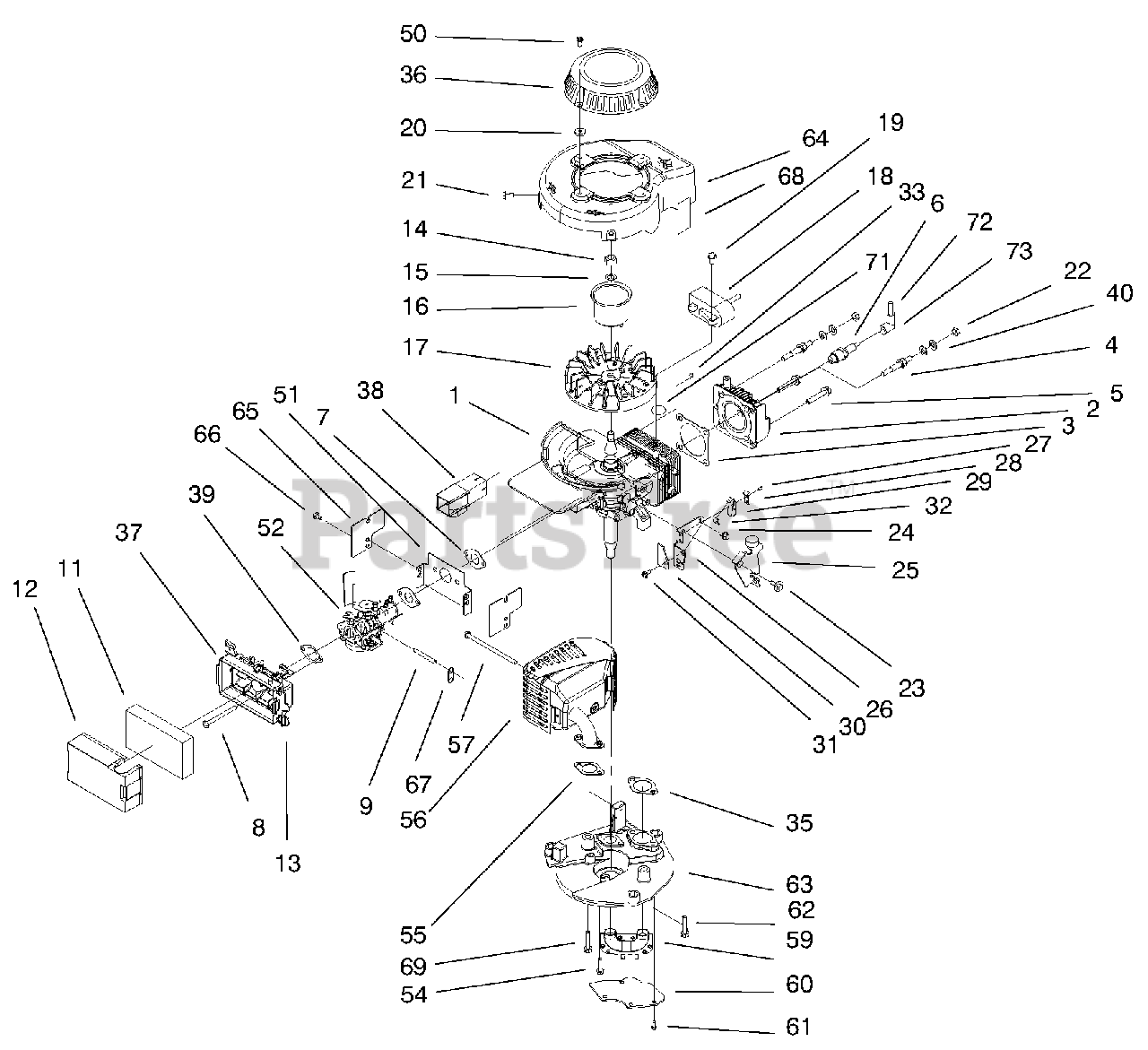

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 95-7636

Short Block ASM

$

$

Not available

$69.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 94-5778

Gasket-Head

$11.99

$

In Stock, only 1 left!

0

$10.99

$

In Stock, only 2 left!

0

$8.49

$

In Stock, only 2 left!

0

6

Lawn-Boy 81-0181

Spark Plug
(Superseded to 50-1170)

$3.49

$

In Stock, Qty 20+

0

7

Lawn-Boy 94-5795

Intake Gasket

$2.99

$

In Stock, Qty 16

0

8

$5.49

$

In Stock, only 4 left!

0

9

Lawn-Boy 44-3170

Primer Hose

$10.99

$

In Stock, only 1 left!

0

11

Lawn-Boy 95-5574

Element-Air Filter
(Superseded to 107-4622)

$9.49

$

In Stock, only 2 left!

0

12

Lawn-Boy 95-5577

Cover-Air Filter

$15.99

$

In Stock, only 1 left!

0

13

Lawn-Boy 610383

Retainer-Filter

$9.49

$

In Stock, Qty 20+

0

$3.49

$

In Stock, Qty 6

0

15

Lawn-Boy 316959

Washer-Lock
(Superseded to 325-36)

$0.99

$

In Stock, Qty 20+

0

16

Lawn-Boy 612949

Hub-Starter

$49.99

$

In Stock, only 3 left!

0

17

Lawn-Boy 95-1866

Flywheel Machined Recoil

$164.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 92-1152

Ignition ASM
(Superseded to 99-2916)

$90.99

$

In Stock, only 3 left!

0

19

Lawn-Boy 613208

Screw-HWH

$2.49

$

In Stock, only 2 left!

0

20

$11.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 700094

Screw
(Superseded to 112-0167)

$6.49

$

In Stock, only 4 left!

0

22

Lawn-Boy 146501

Nut-Lock

$1.99

$

In Stock, only 3 left!

0

23

Lawn-Boy 95-1870

Shoulder Screw Brake

$

$

Not available

24

Lawn-Boy 95-1871

Screw (Brake)

$

$

Not available

25

Lawn-Boy 93-4312

ASM-Brake Plate

$74.99

$

In Stock, only 2 left!

0

26

Lawn-Boy 84-7820

Plate-Mount Brake

$

$

Not available

27

Lawn-Boy 3290-459

Rivet-Self Expand Plas

$2.49

$

In Stock, only 1 left!

0

28

Lawn-Boy 92-2925

Strap-Insulation

$2.49

$

Usually ships in 3-6 days

0

29

Lawn-Boy 60-9010

Strap-Ground

$14.99

$

Usually ships in 3-6 days

0

30

Lawn-Boy 53-4690

Stop-Ground Strap

$4.49

$

In Stock, only 1 left!

0

31

Lawn-Boy 12-5450

Screw-Thread Forming

$9.99

$

In Stock, only 2 left!

0

32

Lawn-Boy 98-7037

Brake Switch Lead Wire

$

$

Not available

$5.49

$

In Stock, Qty 9

0

35

Lawn-Boy 95-1778

Gasket-Exhaust

$5.49

$

In Stock, Qty 9

0

36

Lawn-Boy 684566

ASM-Starter
(Superseded to 684622)

$

$

Not available

37

Lawn-Boy 95-5588

Air Filter Base ASM

$29.99

$

In Stock, only 1 left!

0

38

$5.49

$

In Stock, only 1 left!

0

39

Lawn-Boy 95-7613

Gasket-Filter Base

$4.49

$

In Stock, Qty 20+

0

40

Lawn-Boy 3290-456

Washer-Lock

$2.99

$

In Stock, Qty 19

0

50

Lawn-Boy 98-4484

Screw-Sems

$7.49

$

In Stock, Qty 5

0

51

Lawn-Boy 98-7015

Heat Shield

$

$

Not available

52

Lawn-Boy 98-7042

Carburetor ASM
(Superseded to 107-4607)

$

$

Not available

54

Lawn-Boy 613208

Screw-HWH

$2.49

$

In Stock, only 2 left!

0

55

$6.49

$

In Stock, only 1 left!

0

56

Lawn-Boy 99-2904

Muffler & Guard
(Superseded to 100-9514)

$279.99

$

Usually ships in 3-6 days

0

57

$16.99

$

Usually ships in 3-6 days

0

58

$4.49

$

In Stock, only 1 left!

0

59

Lawn-Boy 98-1557

Transfer Tube

$

$

Not available

60

Lawn-Boy 98-1591

Cover Plate

$12.99

$

In Stock, only 3 left!

0

61

$1.99

$

In Stock, Qty 10

0

62

Lawn-Boy 322-17

Screw-HH

$3.99

$

In Stock, only 2 left!

0

63

Lawn-Boy 98-1383

Muffler Plate Machining

$126.99

$

In Stock, only 2 left!

0

64

Lawn-Boy 98-4467

Shroud ASM

$226.99

$

Usually ships in 3-6 days

0

65

Lawn-Boy 93-4316

Shield-Gov Int'l

$

$

Not available

66

$

$

Not available

67

Lawn-Boy 95-7615

Retainer Hose

$3.49

$

In Stock, only 4 left!

0

69

Lawn-Boy 613233

Screw-Hhd Washer

$4.49

$

Usually ships in 3-6 days

0

70

Lawn-Boy 3254-1

Washer-Lock

$0.99

$

Usually ships in 3-6 days

0

71

Lawn-Boy 317893

Tie Strap

$

$

Not available

72

Lawn-Boy 681678

High Tension Lead

$24.99

$

Usually ships in 3-6 days

0

73

Lawn-Boy 684698

Cover & Terminal

$7.49

$

Usually ships in 3-6 days

0
