11000 - Toro Walk-Behind Mower (SN: 079000001 - 079999999) (1997) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

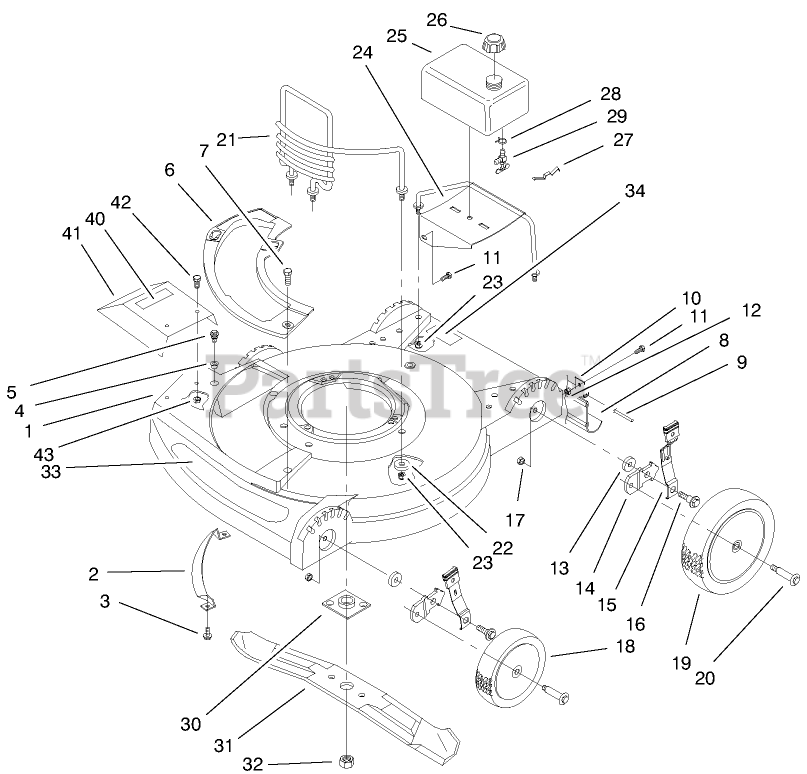

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 16-9619

Housing Assembly (Incl. Ref. #34, & 40)

$

$

Not available

2

Toro 608175

BAR-TOE

$75.99

$

Usually ships in 3-6 days

0

3

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

4

Toro 604604

Grommet
(Superseded to 94-1610)

$0.99

$

In Stock, Qty 14

0

5

Toro 614677

SCREW-SEMS

$3.99

$

In Stock, Qty 16

0

6

Toro 607560

CoverPlate
(Superseded to 95-7052)

$30.99

$

In Stock, only 1 left!

0

7

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

8

Toro 611016

T/SHIELD GEAUGA

$95.99

$

Usually ships in 3-6 days

0

9

Toro 608174

ROD 21" ADVANCE

$

$

Not available

10

Toro 608161

CLAMP ROD KMC

$10.99

$

Usually ships in 3-6 days

0

11

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

13

Toro 608834

WASHER

$15.99

$

In Stock, only 2 left!

0

14

Toro 608833

Bracket
(Superseded to 608833-03)

$22.99

$

In Stock, only 2 left!

0

15

Toro 153444

SPRING ARM ASM

$

$

Not available

16

Toro 610646

BOLT

$6.49

$

Usually ships in 3-6 days

0

17

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

18

Toro 684159

WHEEL AND TIRE ASM

$68.99

$

Usually ships in 3-6 days

0

19

Toro 683464

WHEEL/TIRE ASM

$79.99

$

Usually ships in 3-6 days

0

20

Toro 603567

BOLT

$13.99

$

In Stock, only 2 left!

0

21

Toro 93-7164

Guard-Engine
(Superseded to 94-1618)

$

$

Not available

22

Toro 145875

WASHER

$

$

Not available

23

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 16

0

24

Toro 684583

Bracket-Tank
(Superseded to 684583-03)

$

$

Not available

25

Toro 609829

Gas Tank
(Superseded to 145476)

$

$

Not available

26

Toro 682755

FUEL CAP & INSERT

$21.99

$

Usually ships in 3-6 days

0

27

Toro 609830

SPRING

$5.49

$

In Stock, Qty 6

0

28

Toro 312387

CLAMP - HOSE S

$1.49

$

In Stock, Qty 8

0

29

Toro 677052

VALVE&SCREEN SM

$22.99

$

In Stock, only 2 left!

0

30

Toro 677525

PLATE AND COLLAR ASM

$23.99

$

In Stock, only 1 left!

0

31

Toro 612543

Blade
(Superseded to 612543-03)

$29.99

$

In Stock, only 4 left!

0

32

Toro 603164

NUT-BLADE
(Superseded to 121-3611)

$5.99

$

Usually ships in 3-6 days

0

33

Toro 92-8838

DECAL - DECK 550C

$

$

Not available

34

Toro 93-6657

DECAL-DANGER

$25.99

$

Usually ships in 3-6 days

0

40

Toro 93-6667

DECAL - WARNING

$

$

Not available

41

Toro 93-7415

GUARD PLATE

$

$

Not available

42

Toro 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 10

0

43

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0
