11000 - Toro Walk-Behind Mower (SN: 079000001 - 079999999) (1997) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

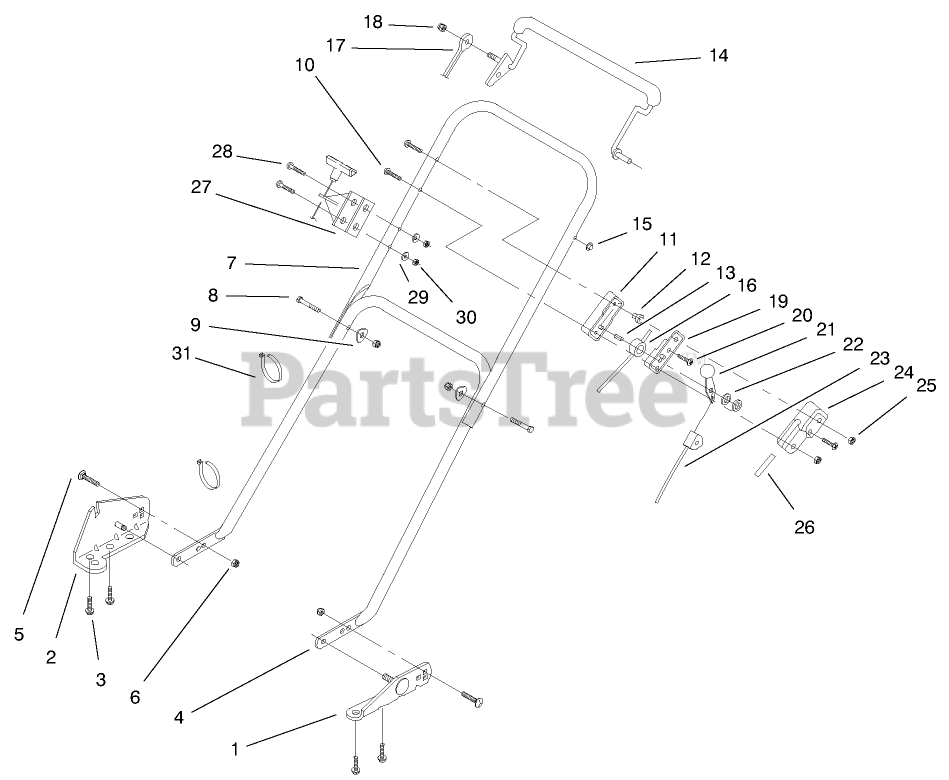

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 684057

ASM-Bracket & Pin
(Superseded to 684057-03)

$

$

Not available

2

Toro 684058

ASM-Bracket & Pin
(Superseded to 684058-03)

$70.99

$

Usually ships in 3-6 days

0

3

Toro 607188

SCREW

$3.49

$

In Stock, only 3 left!

0

4

Toro 613048

Handle-Lower
(Superseded to 92-2920-05)

$128.99

$

Usually ships in 3-6 days

0

5

Toro 800358

Bolt
(Superseded to 3230-22)

$2.49

$

In Stock, Qty 6

0

6

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Toro 614515

Handle-Top
(Superseded to 614516)

$

$

Not available

8

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

9

Toro 609739

WASHER-CURVED

$3.49

$

In Stock, Qty 10

0

10

Toro 611799

SCREW

$4.99

$

Usually ships in 3-6 days

0

11

Toro 611777

OUTER CONTROL CASE

$27.99

$

In Stock, only 1 left!

0

12

Toro 611541

COLUMN

$12.99

$

Usually ships in 3-6 days

0

13

Toro 611542

PIN SKF

$3.49

$

Usually ships in 3-6 days

0

14

Toro 683478

CONTROL LEVER ARG

$138.99

$

Usually ships in 3-6 days

0

15

Toro 605546

NUT-PUSH
(Superseded to 32112-11)

$1.49

$

In Stock, Qty 6

0

16

Toro 612564

PULLEY PL

$5.49

$

Usually ships in 3-6 days

0

17

Toro 93-3694

CABLE - CONTROL

$82.99

$

Usually ships in 3-6 days

0

18

Toro 612168

NUT ACORN

$17.99

$

Usually ships in 3-6 days

0

19

Toro 612633

CENTER CONTROL CASE

$

$

Not available

20

Toro 611543

SCREW

$3.99

$

In Stock, Qty 6

0

21

Toro 93-4135

ASM - LEVER & KNOB

$

$

Not available

22

Toro 612586

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

23

Toro 93-3778

CABLE - THROTTLE

$61.99

$

Usually ships in 3-6 days

0

24

Toro 612634

INNER CONTROL CASE

$

$

Not available

25

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

26

Toro 92-8893

DECAL-THROTTLE CONTROL

$

$

Not available

27

Toro 153254

GUIDE - ROPE
(Superseded to 682684)

$

$

Not available

28

Toro 611233

SCREW

$

$

Not available

29

Toro 602945

WASHER

$

$

Not available

30

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

31

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0
