11000 - Toro Walk-Behind Mower (SN: 079000001 - 079999999) (1997) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

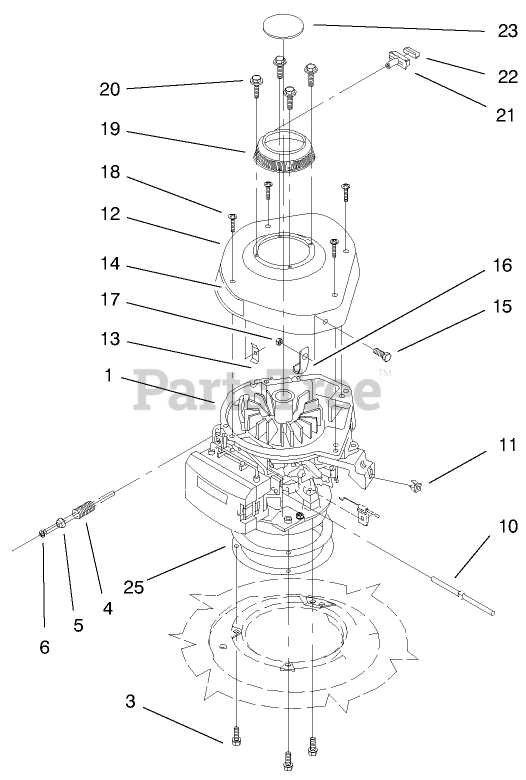

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Engine ASM

$

$

Not available

3

Toro 95-1727

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

4

Toro 611214

SPRING

$9.99

$

In Stock, only 1 left!

0

5

Toro 611509

ACTUATOR-LEVER, BRAKE

$5.49

$

In Stock, only 3 left!

0

6

Toro 611213

RETAINER S

$2.49

$

In Stock, only 4 left!

0

10

Toro 612784

GAS LINE

$10.99

$

Usually ships in 3-6 days

0

11

Toro 609900

NUT-SPEED

$9.49

$

Usually ships in 3-6 days

0

12

Toro 683638

SHROUD AY B S

$

$

Not available

13

Toro 145945

PUSHNUT F

$

$

Not available

14

Toro 612754

APPLIQUE S

$

$

Not available

15

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

16

Toro 611504

CLAMP F

$

$

Not available

17

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

18

Toro 611395

SCREW S
(Superseded to 611543)

$4.49

$

In Stock, Qty 6

0

19

Toro 684622

STARTER,SERV S

$

$

Not available

20

Toro 612428

SCREW SEMS SM

$2.49

$

In Stock, only 4 left!

0

21

Toro 612825

HANDLE-START
(Superseded to 81-1630)

$21.99

$

Usually ships in 3-6 days

0

22

Toro 612824

CLIP-STARTER

$4.49

$

In Stock, Qty 10

0

23

Toro 92-8830

DECAL - RECOIL

$

$

Not available

25

Toro 93-7153

PLATE - ENGINE

$

$

Not available
