11000 - Toro Walk-Behind Mower (SN: 079000001 - 079999999) (1997) CARBURETOR ASSEMBLY Parts Diagram

Walk-Behind Mower

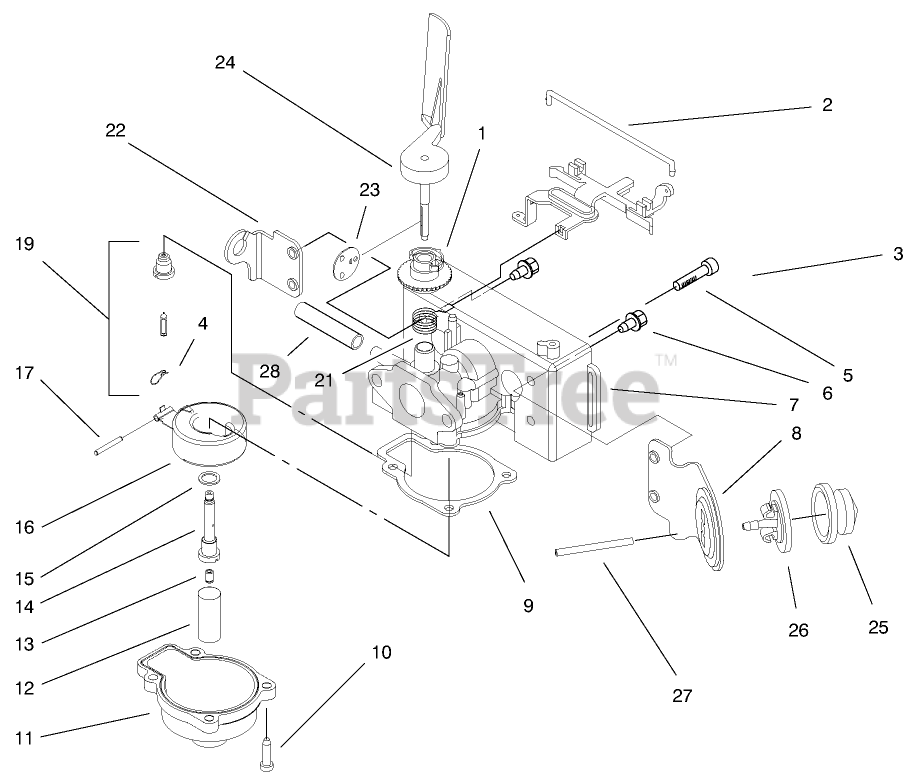

CARBURETOR ASSEMBLY Parts Diagram

  • Title

1

Toro 610834

COLLAR-ADJUST, AIRVANE

$4.49

$

In Stock, Qty 20+

0

2

Toro 610165

RETAINER

$4.49

$

In Stock, Qty 14

0

3

Toro 93-1225

LEVER-ADJ. VF

$2.99

$

In Stock, Qty 20+

0

4

Toro 603145

See Supercession: 92-9697
(Superseded to 92-9697)

$27.99

$

In Stock, Qty 20+

0

5

Toro 609482

SCREW

$2.99

$

In Stock, Qty 8

0

6

Toro 613269

SCREW V

$2.49

$

Usually ships in 3-6 days

0

7

Toro 93-4341

BODY - CARB F

$

$

Not available

8

Toro 93-1232

BRKT-PRIMER F

$

$

Not available

9

Toro 602850

See Supercession: 98-1362
(Superseded to 98-1362)

$3.49

$

In Stock, Qty 20+

0

10

Toro 608850

SCREW-HH

$2.49

$

In Stock, only 3 left!

0

11

Toro 92-9691

CHAMBER-FLOAT

$42.99

$

Usually ships in 3-6 days

0

12

Toro 611071

FILTER-FUEL VS

$18.99

$

In Stock, only 2 left!

0

13

Toro 94-5710

MAIN JET F

$

$

Not available

14

Toro 92-6371

NOZZLE VF

$

$

Not available

15

Toro 612383

WASHER

$1.99

$

In Stock, only 1 left!

0

16

Toro 678113

FLOAT & ARM ASM

$

$

Not available

17

Toro 92-6389

PIN-STRAIGHT

$5.99

$

In Stock, only 1 left!

0

19

Toro 678278

Float, Valve, & Body Ass-y (Incl. Ref. #4)
(Superseded to 92-9697)

$27.99

$

In Stock, Qty 20+

0

21

Toro 92-4944

SPRING-GOV V

$10.99

$

In Stock, only 2 left!

0

22

Toro 93-1226

BRKT-SPEED CONT F

$

$

Not available

23

Toro 94-5704

DISC-THROTTLE

$3.99

$

In Stock, only 4 left!

0

24

Toro 92-6376

Air Vane&shaft
(Superseded to 104-4430)

$12.99

$

In Stock, Qty 15

0

25

Toro 66-7460

BULB-PRIMER

$6.49

$

In Stock, Qty 20+

0

26

Toro 44-2750

BODY-PRIMER

$8.99

$

In Stock, Qty 20+

0

27

Toro 44-3172

HOSE-PRIMER

$6.49

$

In Stock, Qty 11

0

Toro 94-5738

CARB. AY S

Note: Not illustrated

$

$

Not available

28

Toro 612784

GAS LINE

$10.99

$

Usually ships in 3-6 days

0
