11000 - Toro Walk-Behind Mower (SN: 079000001 - 079999999) (1997) AIR FILTER ASSEMBLY Parts Diagram

Walk-Behind Mower

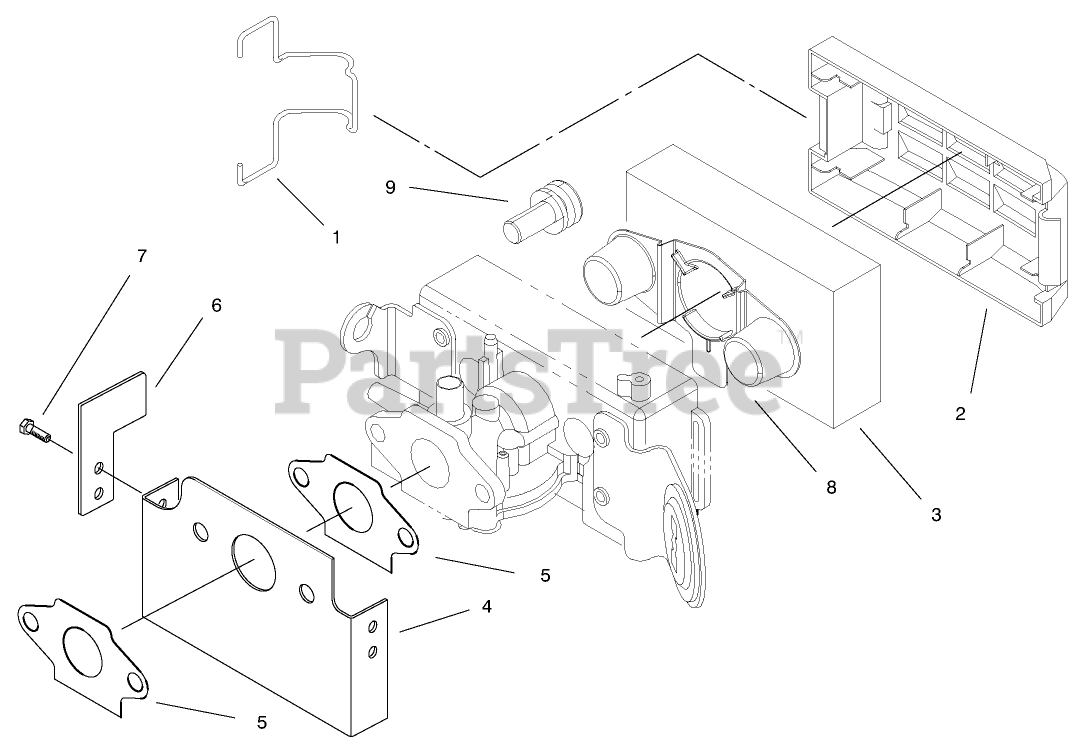

AIR FILTER ASSEMBLY Parts Diagram

  • Title
1

Toro 610383

RETAINER-COVER, FILTER

$9.49

$

In Stock, Qty 20+

0

2

Toro 93-1231

COVER-AIR FIL. V

$

$

Not available

3

Toro 609493

ELEMENT-AIR FIL VF
(Superseded to 107-4621)

$5.49

$

In Stock, Qty 20+

0

4

Toro 93-4315

SHIELD-CARB V INTL

$

$

Not available

5

Toro 92-4948

GASKET-CARB VF

$1.99

$

In Stock, Qty 20+

0

6

Toro 93-4317

SHIELD - GOV. F (INTL)

$64.99

$

Usually ships in 3-6 days

0

7

Toro 613269

SCREW V

$2.49

$

Usually ships in 3-6 days

0

8

Toro 93-4320

SHIELD-FUEL V

$

$

Not available

9

Toro 609482

SCREW

$2.99

$

In Stock, Qty 8

0
