11000 - Lawn-Boy Walk-Behind Mower (SN: 790000001 - 799999999) (1997) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

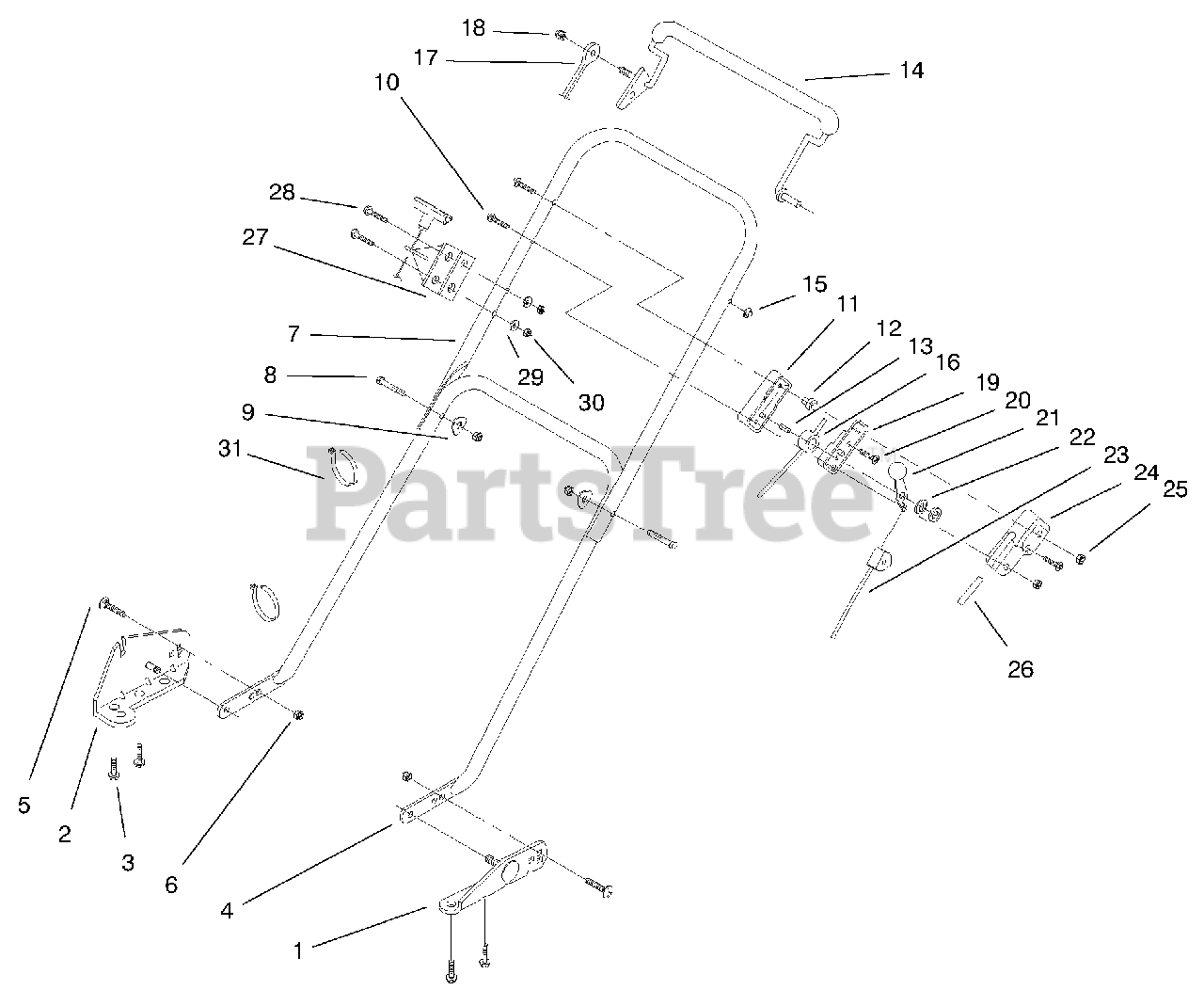

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 684057

Bracket & Pin Assembly
(Superseded to 684057-03)

$

$

Not available

2

Lawn-Boy 684058

Bracket & Pin Assembly
(Superseded to 684058-03)

$81.99

$

Usually ships in 3-6 days

0

3

$3.99

$

In Stock, only 3 left!

0

4

Lawn-Boy 613048

Handle-Lower Section
(Superseded to 92-2920-05)

$131.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 800358

Bolt-Carriage
(Superseded to 3230-22)

$2.49

$

In Stock, only 2 left!

0

6

Lawn-Boy 3296-29

Nut-Lock

$2.49

$

In Stock, Qty 20+

0

7

Lawn-Boy 614515

Handle-Top Section
(Superseded to 614516)

$

$

Not available

8

Lawn-Boy 322-9

Screw-Hex Hd. Cap

$3.49

$

In Stock, only 3 left!

0

9

$3.49

$

In Stock, Qty 8

0

10

$5.49

$

Usually ships in 3-6 days

0

11

Lawn-Boy 611777

Case-Control

$32.99

$

In Stock, only 1 left!

0

12

$14.99

$

Usually ships in 3-6 days

0

$

$

Not available

14

Lawn-Boy 683478

Lever-Control

$138.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 605546

Nut-Pal
(Superseded to 32112-11)

$1.49

$

In Stock, only 3 left!

0

16

$5.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 93-3694

Cable-Control

$98.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 612168

Nut-Acorn

$19.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 612633

Case-Control

$

$

Not available

20

$4.49

$

In Stock, Qty 6

0

21

Lawn-Boy 93-4135

Lever & Knob Assembly

$

$

Not available

22

Lawn-Boy 612586

Washer-Spring

$2.99

$

In Stock, only 4 left!

0

23

Lawn-Boy 93-3778

Cable-Throttle

$73.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 612634

Case-Throttle

$

$

Not available

25

Lawn-Boy 3296-12

Nut-Lock

$1.49

$

In Stock, Qty 6

0

26

Lawn-Boy 92-8893

Decal-Throttle Control

$

$

Not available

27

Lawn-Boy 153254

Guide-Rope
(Superseded to 682684)

$

$

Not available

28

$

$

Not available

29

Lawn-Boy 602945

Washer-Plain

$

$

Not available

30

Lawn-Boy 3296-42

Nut-Lock

$0.99

$

In Stock, Qty 9

0

31

Lawn-Boy 614249

Strap-Tie

$1.49

$

In Stock, Qty 6

0
