11000 B - Lawn-Boy 53cm Walk-Behind Mower, Canada (SN: 069000001 - 069999999) (1996) CARBURETOR ASSEMBLY Parts Diagram

53cm Walk-Behind Mower, Canada

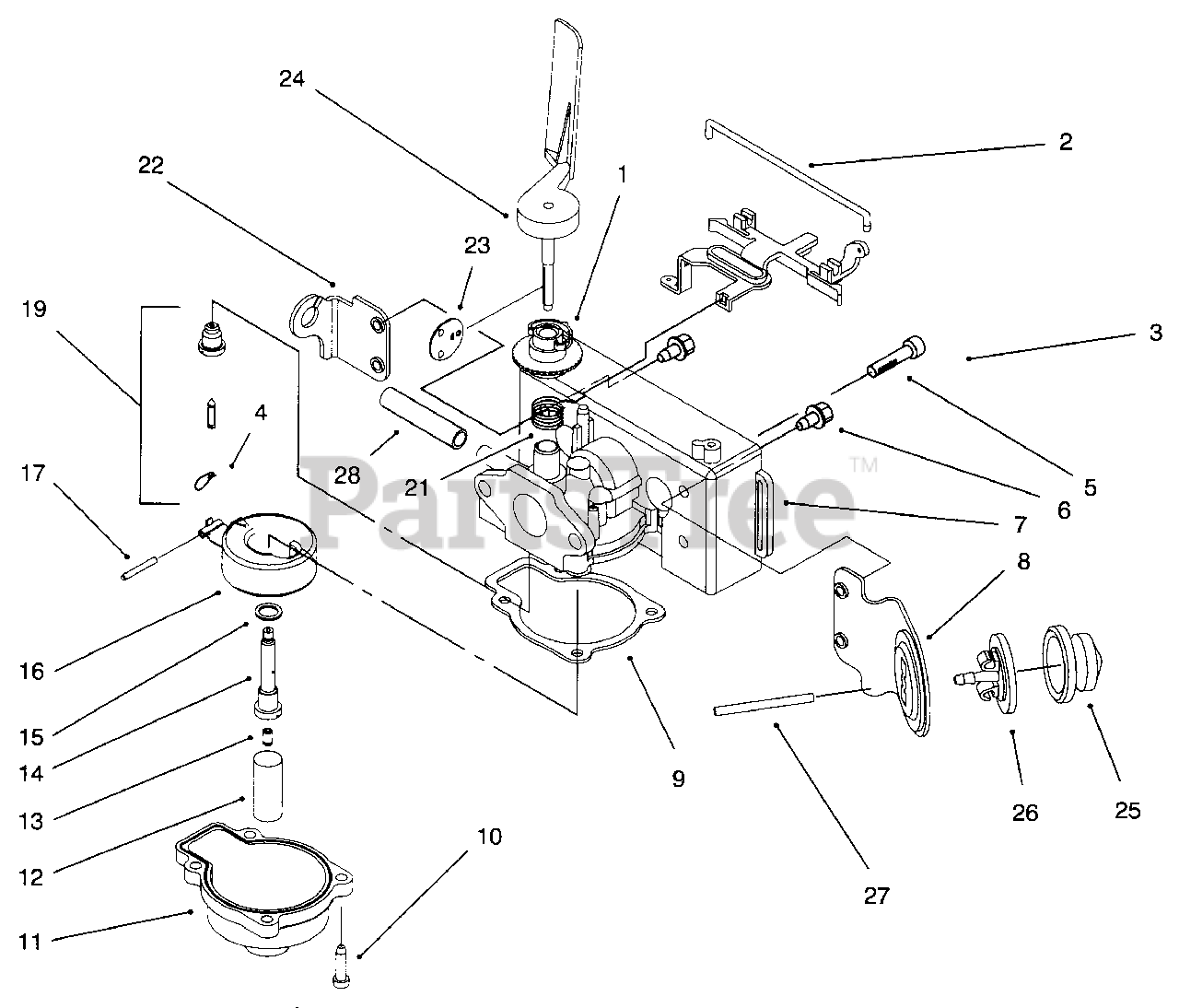

CARBURETOR ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 610834

Collar-Adjustment

$4.49

$

In Stock, Qty 20+

0

2

Lawn-Boy 610165

Retainer

$4.49

$

In Stock, Qty 15

0

3

Lawn-Boy 93-1225

Lever-Speed Adjust

$2.99

$

In Stock, Qty 14

0

4

Lawn-Boy 603145

Spring
(Superseded to 92-9697)

$27.99

$

In Stock, Qty 7

0

5

Lawn-Boy 609482

Screw-Pan Hd. Sems

$2.99

$

In Stock, Qty 8

0

6

Lawn-Boy 613269

Screw

$2.49

$

Usually ships in 3-6 days

0

7

Lawn-Boy 93-4323

Body-Carburetor

$

$

Currently unavailable

8

Lawn-Boy 93-1232

Bracket-Primer

$

$

Not available

9

Lawn-Boy 602850

Gasket-Float Chamber
(Superseded to 98-1362)

$3.49

$

In Stock, Qty 20+

0

10

Lawn-Boy 608850

Screw

$2.49

$

In Stock, only 3 left!

0

11

Lawn-Boy 92-9691

Float Chamber

$42.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 611071

Filter-Fuel

$18.99

$

In Stock, only 1 left!

0

13

Lawn-Boy 92-6370

Main Jet

$15.99

$

In Stock, only 1 left!

0

14

Lawn-Boy 92-6371

Nozzle

$

$

Not available

15

Lawn-Boy 612383

Washer

$1.99

$

In Stock, only 1 left!

0

16

Lawn-Boy 678113

Float & Arm Assembly

$

$

Not available

17

Lawn-Boy 92-6389

Pin

$5.99

$

In Stock, only 1 left!

0

19

Lawn-Boy 678278

Float, Valve, & Body Ass'y (Incl. Ref. #4)
(Superseded to 92-9697)

$27.99

$

In Stock, Qty 7

0

21

Lawn-Boy 92-4944

Spring-Governor

$10.99

$

In Stock, only 1 left!

0

22

Lawn-Boy 93-1226

Bracket-Throttle Control

$

$

Not available

23

Lawn-Boy 92-6373

Disc-Throttle

$5.49

$

In Stock, only 1 left!

0

24

Lawn-Boy 92-6376

Air Vane & Shaft
(Superseded to 104-4430)

$12.99

$

In Stock, Qty 18

0

25

Lawn-Boy 66-7460

Bulb-Primer

$6.49

$

In Stock, Qty 20+

0

26

Lawn-Boy 44-2750

Body-Primer

$8.99

$

In Stock, Qty 20+

0

27

Lawn-Boy 44-3172

Hose-Primer

$6.49

$

In Stock, only 1 left!

0

Lawn-Boy 94-5738

Carburetor Complete

Note: Not Illustrated

$

$

Not available

28

Lawn-Boy 612784

Line-Gas

$10.99

$

Usually ships in 3-6 days

0
