11000 B - Lawn-Boy 53cm Walk-Behind Mower, Canada (SN: 069000001 - 069999999) (1996) AIR FILTER ASSEMBLY Parts Diagram

53cm Walk-Behind Mower, Canada

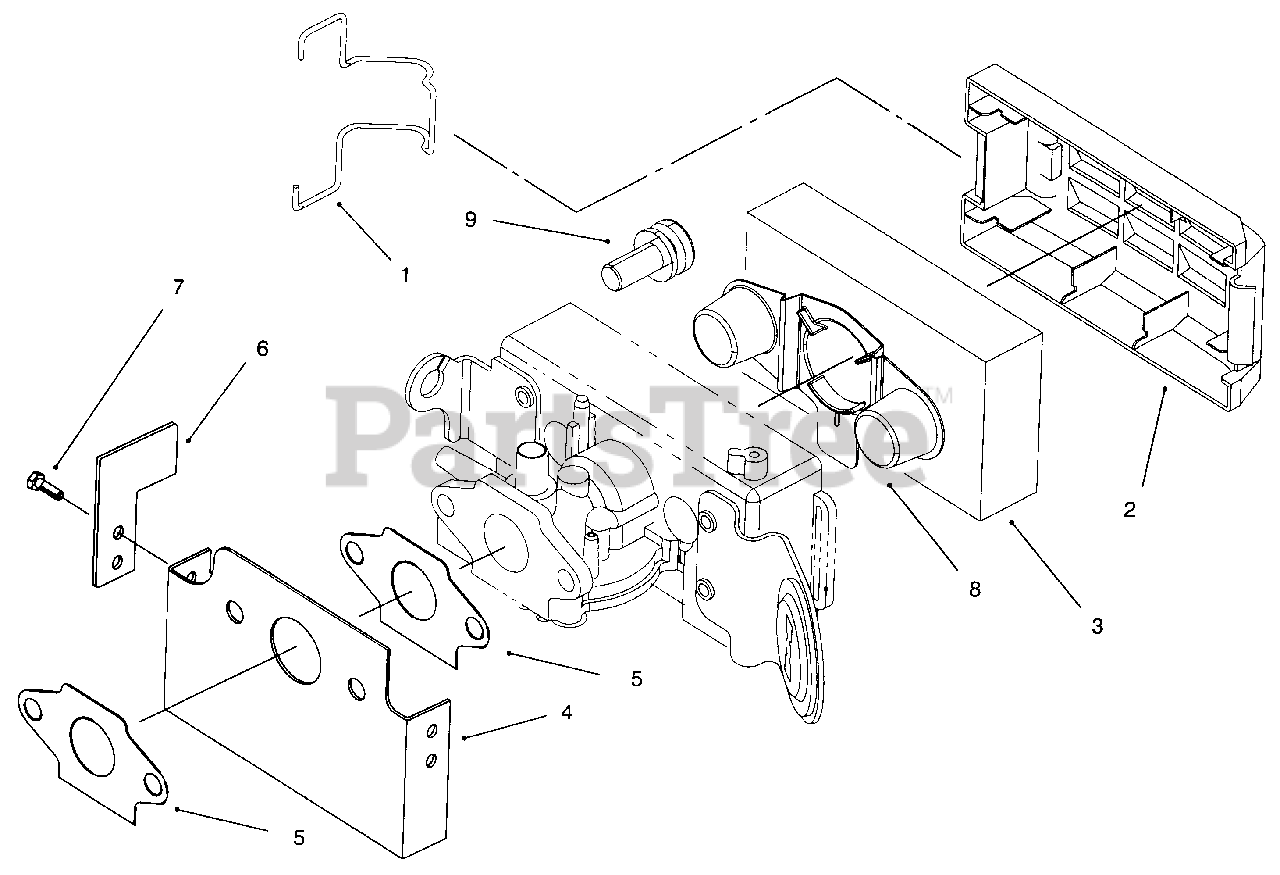

AIR FILTER ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 610383

Retainer-Cover

$9.49

$

In Stock, Qty 20+

0

2

Lawn-Boy 93-1231

Cover-Air Filter

$

$

Not available

3

Lawn-Boy 609493

Element-Air Filter
(Superseded to 107-4621)

$5.49

$

In Stock, Qty 6

0

4

Lawn-Boy 93-4315

Shield-Carburetor (Int'l)

$

$

Not available

5

Lawn-Boy 92-4948

Gasket-Carb.

$1.99

$

In Stock, Qty 15

0

6

Lawn-Boy 93-4317

Shield-Governor F (Int'l)

$64.99

$

Usually ships in 3-6 days

0

7

$2.49

$

Usually ships in 3-6 days

0

8

Lawn-Boy 93-4320

Shield-Fuel

$

$

Not available

9

$2.99

$

In Stock, Qty 8

0
