11000 B - Lawn-Boy 53cm Walk-Behind Mower, Canada (SN: 049000001 - 049999999) (1994) HOUSING ASSEMBLY Parts Diagram

53cm Walk-Behind Mower, Canada

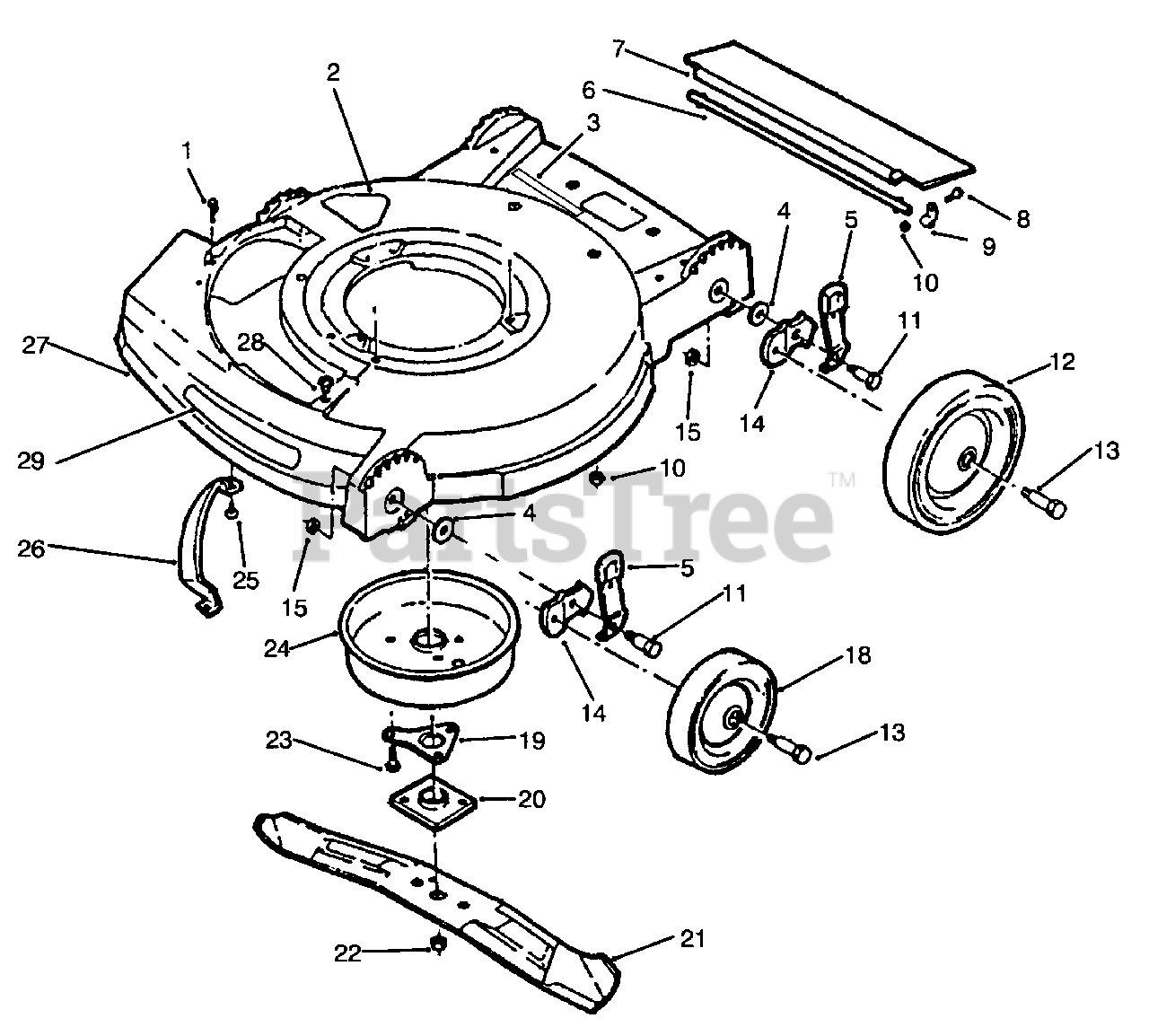

HOUSING ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 614677

Screw-Sems, Plate Cover

$4.49

$

In Stock, Qty 12

0

2

Lawn-Boy 92-9077

Decal-DIN

$

$

Not available

3

Lawn-Boy 92-1780

Decal-Danger

$

$

Not available

4

$14.99

$

In Stock, only 2 left!

0

5

Lawn-Boy 153444

Knob & Spring-Adj.

$

$

Not available

6

Lawn-Boy 608174

Rod-Shield, Trailing

$

$

Not available

7

Lawn-Boy 611016

Shield-Trailing

$102.99

$

Usually ships in 3-6 days

0

8

$1.49

$

In Stock, Qty 20+

0

9

Lawn-Boy 608161

Clamp-Rod, Shield

$11.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 3296-42

Nut-Lock

$0.99

$

In Stock, Qty 20+

0

11

Lawn-Boy 610646

Bolt-Shoulder

$7.49

$

Usually ships in 3-6 days

0

12

Lawn-Boy 92-8889

Wheel-Rear, 8"

$162.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 603567

Bolt-Wheel

$15.99

$

In Stock, only 2 left!

0

14

Lawn-Boy 608833

Bracket-Wheel Adj.
(Superseded to 608833-03)

$27.99

$

In Stock, only 2 left!

0

15

Lawn-Boy 3296-39

Nut-Lock

$2.99

$

In Stock, Qty 20+

0

18

Lawn-Boy 92-8888

Wheel-Front, 6"

$

$

Not available

19

Lawn-Boy 609786

Plate-Support, Crankshaft

$23.99

$

In Stock, only 2 left!

0

20

Lawn-Boy 677525

Collar & Plate

$51.99

$

In Stock, only 3 left!

0

21

Lawn-Boy 612543

Blade-21"
(Superseded to 612543-03)

$33.99

$

In Stock, Qty 18

0

22

Lawn-Boy 603164

Nut-Blade
(Superseded to 121-3611)

$5.99

$

In Stock, Qty 11

0

23

Lawn-Boy 609471

Screw-Plate to Muffler Cover

$4.99

$

In Stock, Qty 14

0

24

Lawn-Boy 682876

Cover-Muffler

$165.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 46-6811

Screw-Toe Bar to Housing

$3.49

$

In Stock, only 3 left!

0

26

Lawn-Boy 608175

Toe Bar

$77.99

$

Usually ships in 3-6 days

0

27

Lawn-Boy 16-2149

Assembly-Housing (Incl. Ref. 2 & 28)

$

$

Not available

28

Lawn-Boy 604604

Grommet
(Superseded to 94-1610)

$1.49

$

In Stock, Qty 20+

0

29

Lawn-Boy 92-8838

Decal-Deck 550C

$

$

Not available
