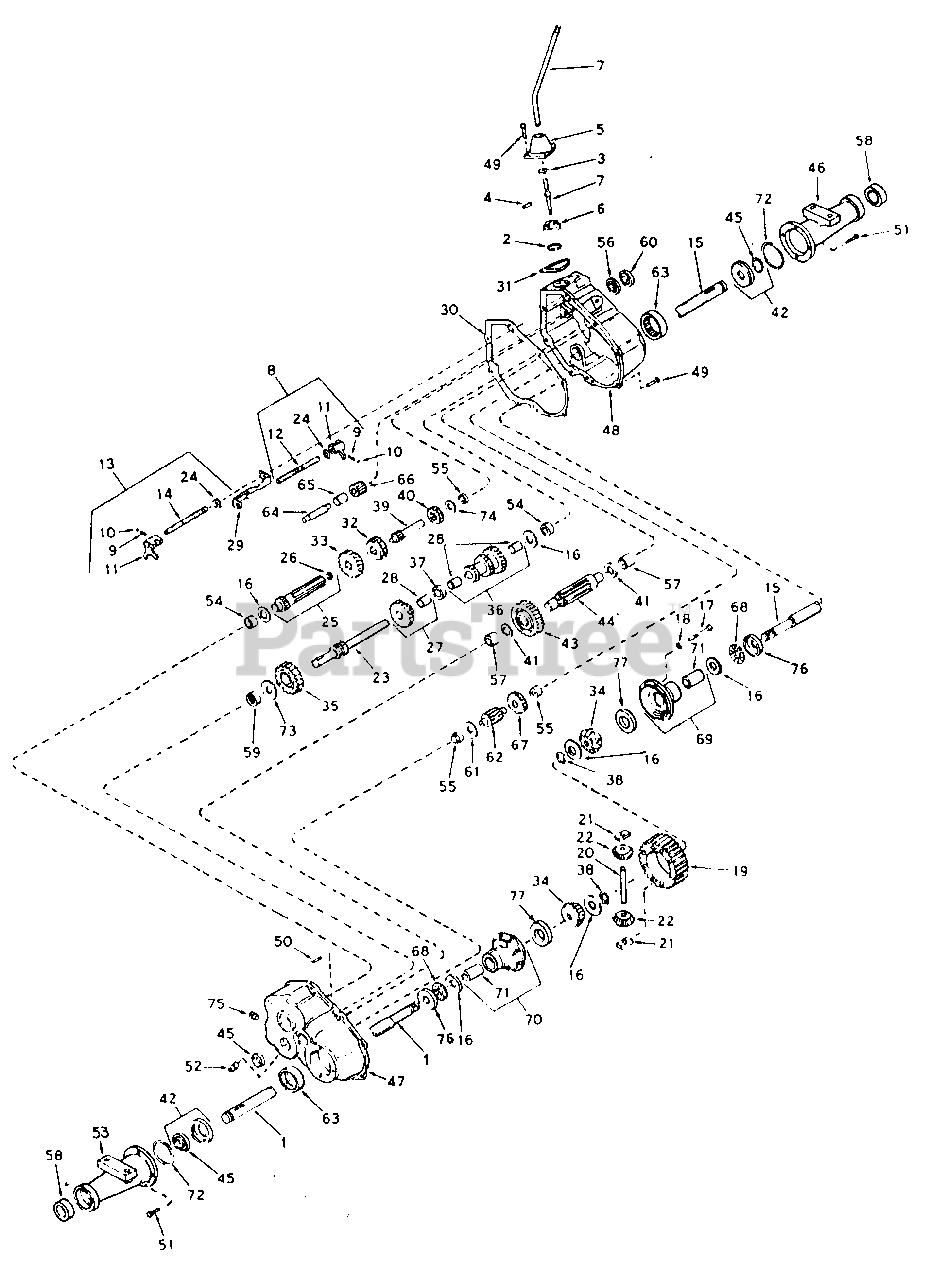

1100 (2050590U) - Cub Cadet Garden Tractor Transaxle Parts Diagram

Garden Tractor

Transaxle Parts Diagram

  • Title

Cub Cadet 717-3001

Transaxle

$

$

Not available

1

Cub Cadet TC-774384

Axle, LH

$

$

Not available

2

Cub Cadet 716-3007

Ring, Snap
(Superseded to 716-04098)

$5.49

$

Usually ships in 3-6 days

0

3

Cub Cadet TC-792001

Ring, Quad

$4.49

$

In Stock, Qty 11

0

4

Cub Cadet TC-792049

Pin, Roll

$6.49

$

In Stock, only 4 left!

0

5

Cub Cadet TC-784093

Housing, Shift Lever

$80.99

$

Usually ships in 3-12 days

0

6

Cub Cadet TC-784094

Retainer, Shift Lever

$36.99

$

In Stock, only 1 left!

0

7

Cub Cadet TC-784300

Lever, Shift

$

$

Not available

8

Cub Cadet TC-784054

Rod Assy, Shift

$65.99

$

Usually ships in 3-12 days

0

9

Cub Cadet TC-792003

Spring

$4.49

$

In Stock, only 2 left!

0

10

Cub Cadet TC-792004

Ball, Steel

$4.49

$

In Stock, Qty 12

0

11

Cub Cadet TC-784004

Fork, Shifter

$45.99

$

Usually ships in 3-12 days

0

12

Cub Cadet TC-784055

Rod, Shifter 3rd & 4th

$16.99

$

In Stock, only 1 left!

0

13

Cub Cadet TC-784056

Rod Assy, Shift

$65.99

$

Usually ships in 3-12 days

0

14

Cub Cadet TC-784057

Rod, Shifter 1st & 2nd

$19.99

$

Usually ships in 3-12 days

0

15

Cub Cadet TC-774080

Axle, RH

$134.99

$

Usually ships in 3-12 days

0

16

Cub Cadet TC-780042

Washer, Thrust

$4.49

$

Usually ships in 3-12 days

0

17

Cub Cadet TC-792005

Bolt, 1/4 X 2-1/2 Pln Type 8

$

$

Currently unavailable

18

Cub Cadet TC-792006

Washer, 1/4 Heavy Lock

$

$

Currently unavailable

19

Cub Cadet TC-774029A

Gear, Ring

$

$

Not available

20

Cub Cadet TC-786019

Pin, Drive

$14.99

$

Usually ships in 3-12 days

0

21

Cub Cadet TC-786066

Block, Drive

$4.49

$

In Stock, only 2 left!

0

22

Cub Cadet TC-778094

Pinion, Bevel

$

$

Currently unavailable

23

Cub Cadet TC-776029A

Shaft, Brake Gear

$137.99

$

Usually ships in 3-12 days

0

24

Cub Cadet 716-0865

Ring, Snap

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet TC-776189A

Shaft Assy, Pinion

$89.99

$

Usually ships in 3-12 days

0

26

Cub Cadet TC-780018

Bearing Assy, Needle

$

$

Not available

27

Cub Cadet TC-778034

Gear Assy, Cluster

$115.99

$

Usually ships in 3-12 days

0

28

Cub Cadet TC-780053

Bushing

$7.99

$

Usually ships in 3-12 days

0

29

Cub Cadet TC-784074

Stop, Shifter

$

$

Not available

30

Cub Cadet TC-788023

Gasket, Case to Cover

$4.49

$

Usually ships in 3-12 days

0

31

Cub Cadet TC-788022

Gasket, Shifter Lever Housing

$

$

Not available

32

Cub Cadet TC-778019A

Gear, Shift 3rd & 4th

$66.99

$

Usually ships in 3-12 days

0

33

Cub Cadet TC-778020

Gear, Shifting 1st, 2nd & Reverse

$66.99

$

Usually ships in 3-12 days

0

34

Cub Cadet TC-778231

Gear, Bevel

$43.99

$

Usually ships in 3-12 days

0

35

Cub Cadet TC-778037

Gear, Idler

$56.99

$

Usually ships in 3-12 days

0

36

Cub Cadet TC-778035A

Gear, Cluster

$

$

Not available

37

Cub Cadet TC-786024

Spacer

$

$

Not available

38

Cub Cadet 716-3001

Ring, Snap

$4.99

$

In Stock, only 1 left!

0

39

Cub Cadet TC-776067

Shaft, Input

$84.99

$

Usually ships in 3-12 days

0

40

Cub Cadet TC-778024A

Gear, Input Shaft Spur

$28.99

$

In Stock, only 2 left!

0

41

Cub Cadet TC-780052

Washer, Thrust

$4.49

$

In Stock, only 1 left!

0

42

Cub Cadet TC-788021

Retainer Assy, Oil Seal

$32.99

$

In Stock, only 1 left!

0

43

Cub Cadet TC-778036

Gear, Output

$76.99

$

Usually ships in 3-12 days

0

44

Cub Cadet TC-776028

Pinion, Output

$

$

Not available

45

Cub Cadet TC-788008

Seal, Oil

$8.49

$

In Stock, only 2 left!

0

46

Cub Cadet TC-782025

Housing, Axle RH

$

$

Not available

47

Cub Cadet TC-772076

Cover Assy, Transaxle

$

$

Currently unavailable

48

Cub Cadet TC-770068

Case Assy, Transaxle

$

$

Not available

49

Cub Cadet TC-792007

Screw, 1/4-20 X 3/4 Flanged

$

$

Not available

50

Cub Cadet TC-786026

Pin, Dowel

$4.49

$

Usually ships in 3-12 days

0

51

Cub Cadet TC-792037

Bolt, 5/16 X 1 Pln Type 5

$4.49

$

Usually ships in 3-12 days

0

52

Cub Cadet TC-792019

Plug, Magnetic Drain

$

$

Not available

53

Cub Cadet TC-782059

Housing, Axle LH

$

$

Not available

54

Cub Cadet TC-780049

Bearing, Needle

$23.99

$

In Stock, only 1 left!

0

55

Cub Cadet IH-73002-C91

Bearing, Needle
(Superseded to 741-0665)

$21.99

$

In Stock, only 2 left!

0

56

Cub Cadet TC-780024

Bearing, Ball

$48.99

$

Usually ships in 3-12 days

0

57

Cub Cadet TC-780047

Bearing, Needle

$22.99

$

Usually ships in 3-12 days

0

58

Cub Cadet TC-780050

Bearing Assy, Ball

$56.99

$

In Stock, only 3 left!

0

59

Cub Cadet TC-780046

Bearing, Needle

$21.99

$

Usually ships in 3-12 days

0

60

Cub Cadet TC-788025

Seal, Oil

$

$

Not available

61

Cub Cadet TC-780001

Washer

$4.49

$

In Stock, only 4 left!

0

62

Cub Cadet TC-776031

Shaft, Pinion

$75.99

$

Usually ships in 3-12 days

0

63

Cub Cadet TC-780048

Bearing, Needle

$46.99

$

Usually ships in 3-12 days

0

64

Cub Cadet TC-776030

Shaft, Reverse Idler

$18.99

$

Usually ships in 3-12 days

0

65

Cub Cadet TC-786025

Spacer, Reverse Idler

$

$

Not available

66

Cub Cadet TC-778016

Idler, Reverse

$54.99

$

In Stock, only 1 left!

0

67

Cub Cadet TC-778038

Gear, Spur -22T

$

$

Currently unavailable

68

Cub Cadet TC-780039

Bearing, Thrust

$9.99

$

Usually ships in 3-12 days

0

69

Cub Cadet TC-774072A

Carrier Assy, Differential RH

$

$

Not available

70

Cub Cadet TC-774071A

Carrier Assy, Differential LH

$

$

Not available

71

Cub Cadet TC-780041

Bushing, Carrier

$

$

Currently unavailable

72

Cub Cadet TC-788024

O-Ring

$5.99

$

In Stock, only 3 left!

0

73

Cub Cadet TC-780007

Washer, Thrust

$4.49

$

Usually ships in 3-12 days

0

74

Cub Cadet TC-780051

Washer, Thrust

$4.49

$

Usually ships in 3-12 days

0

75

Cub Cadet BS-91084

Plug, Pipe
(Superseded to BS-690946)

$5.99

$

In Stock, Qty 14

0

76

Cub Cadet TC-780075

Bearing, Thrust Race

$

$

Not available

77

Cub Cadet TC-780107

Washer

$4.49

$

Usually ships in 3-12 days

0
